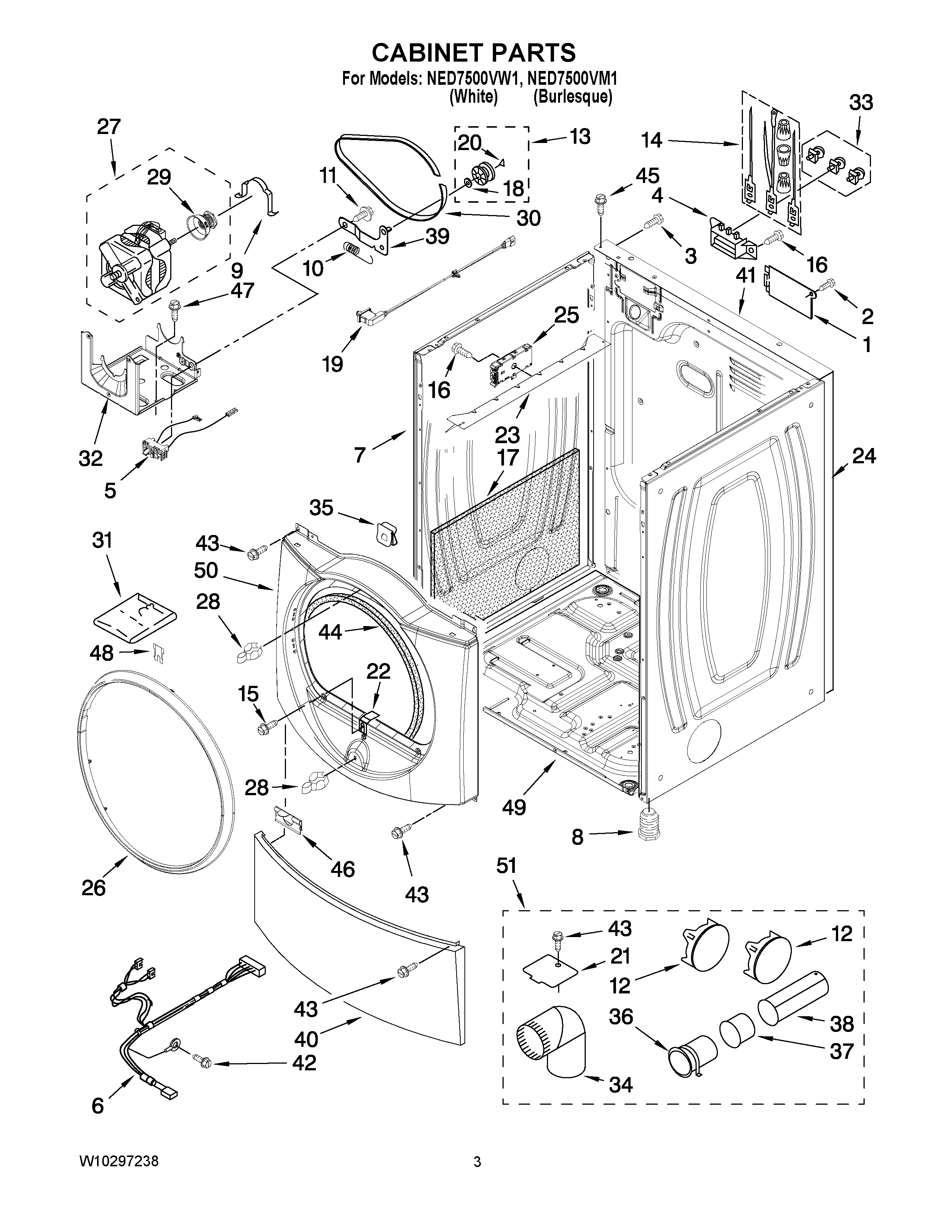

NED7500VM1 02 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	MAY 8576583
2	Screw, 8-18 x 3/8
3	MAY 8533974
4	MAY 3397659
5	MAY W10246525
6	MAY W10242902
7	Panel, Side (L.H.) (White)
7	MAY W10192442
8	MAY 3392100
9	MAY 660658
10	MAY 3387374
11	SCREW
12	MAY W10110871
12	MAY 49252
13	ASSEMBLY, PULLEY
14	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15	SCREW
16	SCREW,8-18 X 3/8
17	MAY W10123956
18	MAY W10121334
19	SWITCH, ASSEMBLY DOOR
20	WASHER, TRI RING
21	MAY 8066115
22	MAY 8529053
23	Bracket, Control
24	Panel, Side (R.H.) (White)
24	MAY W10192453
25	CONTROL BOARD
26	ASSEMBLY, TRIM-RING (INCLUDE, ITEM. 48 )
27	Motor Assembly 60 HZ.
28	MAY 696144
29	Pulley 60 HZ.
30	MAY 3387610
31	MAY 8541503
32	MAY W10242878
33	MAY 279393
34	MAY 49026
35	Clip, S-Type (3)
36	PIPE, EXHAUST (MEDIUM)
37	MAY 8563750
38	PIPE, EXHAUST (LONG)
39	MAY 3388674
40	MAY W10246274
40	PANEL, TOE
41	MAY W10244141
42	Screw
43	SCREW
44	MAY 3387242
45	SCREW, 10-16 X 1/2
46	MAY 8519459
47	SCREW
48	Trim-Clip Metal
49	MAY W10273475
50	MAY W10180428
50	FRONT PANEL (INCLUDES ILLUS. 44)
51	MAY 279818
51	MAY 280189
