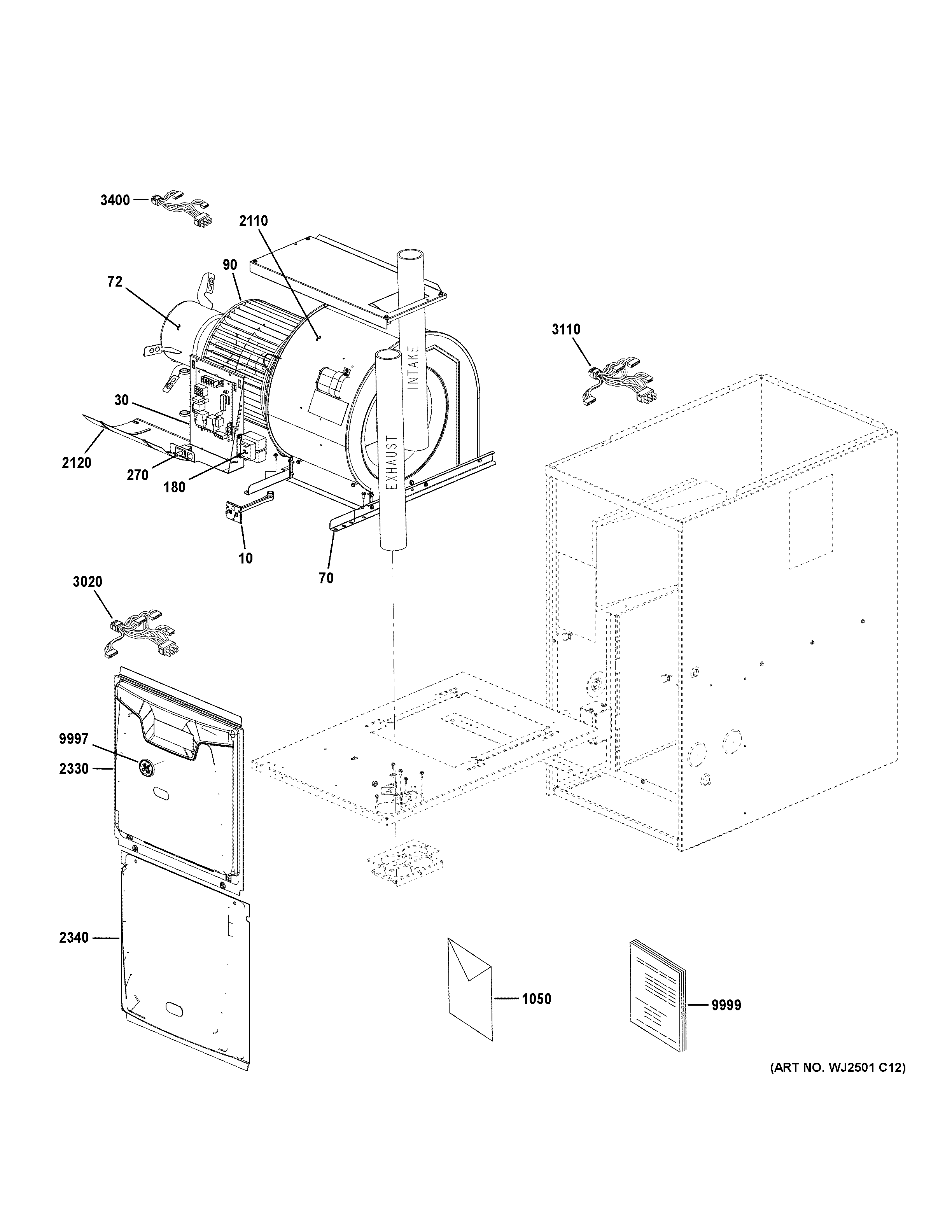

NF80D070S3A54 CABINET (1)

NF80D070S3A54 CABINET (1)

Written by

in

NF80D070S3A54 CABINET (1)

Products

PositionProduct
10102135-06 Control-Limit (190F)
30607436-03 Ignition Control Kit
70MOUNT MOTOR-(CTO)
7223V73 GE 624623-03 Motor Repl 1/2Hp 115
90WHEEL-BLOWER-(CTO)
18042J3201 TRANSFORMER
270SWITCH-INTERLOCK-(CTO)
1050WIRING DIAGRAM -A80DF1E/80G1DF-E-(CTO)
2110HOUSING-BLOWER-(CTO)
2120BLWR HSG CUTOFF PLATE-(CTO)
2330TOP DOOR, A-WIDTH 80/90% DF BLWR-(CTO)
2340BTM DOOR, A-WIDTH 80% DF VEST-(CTO)
3020607349-02 Harness-Wire-(CTO)
3110HARNESS-WIRING UNIT-(CTO)
3400MOTOR HARNESS-(CTO)
9997SIDE GEA BADGE
9999PM SERVICE INSTRUCTIONS
