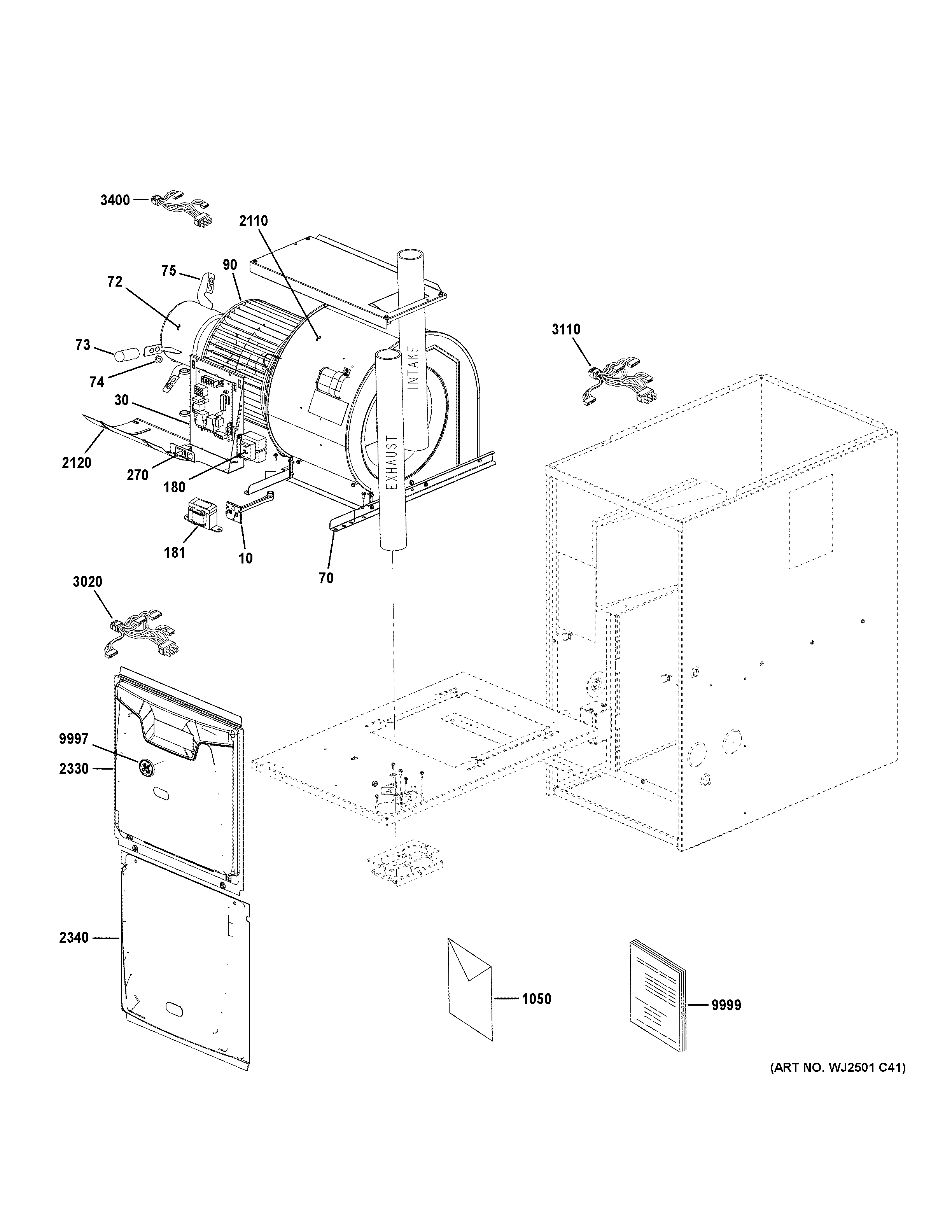

NF80D110S5C53 CABINET (1)

NF80D110S5C53 CABINET (1)

Written by

in

NF80D110S5C53 CABINET (1)

Products

PositionProduct
10102135-04 Control-Limit Aux (165F)
30607436-03 Ignition Control Kit
70MOUNT-MOTOR-(CTO)
72607421-09 X13 1HP Motor- Prog.Blower
73SLEEVE-(CTO)
74GROMMET-(CTO)
75ARM-MOTOR MTG-(CTO)
90WHEEL-BLOWER-(CTO)
18042J3201 TRANSFORMER
181TRANSFORMER POWER CHOKE-(CTO)
270SWITCH-INTERLOCK-(CTO)
1050WIRING DIAGRAM -A80DF1E/80G1DF-E-(CTO)
2110HOUSING-BLOWER-(CTO)
2120PLATE-CUTOFF-(CTO)
2330TOP DOOR C-WIDTH 80/90% DF BLWR-(CTO)
2340BTM DOOR C-WIDTH 80% DF VESTIBULE-(CTO)
3020607349-03 Harness-Wire-(CTO)
3110HARNESS-WIRING UNIT-(CTO)
3400MOTOR HARNESS-(CTO)
9997SIDE GEA BADGE
9999PM SERVICE INSTRUCTIONS
