NF80L090S4B51 CABINET (2) – Aparts

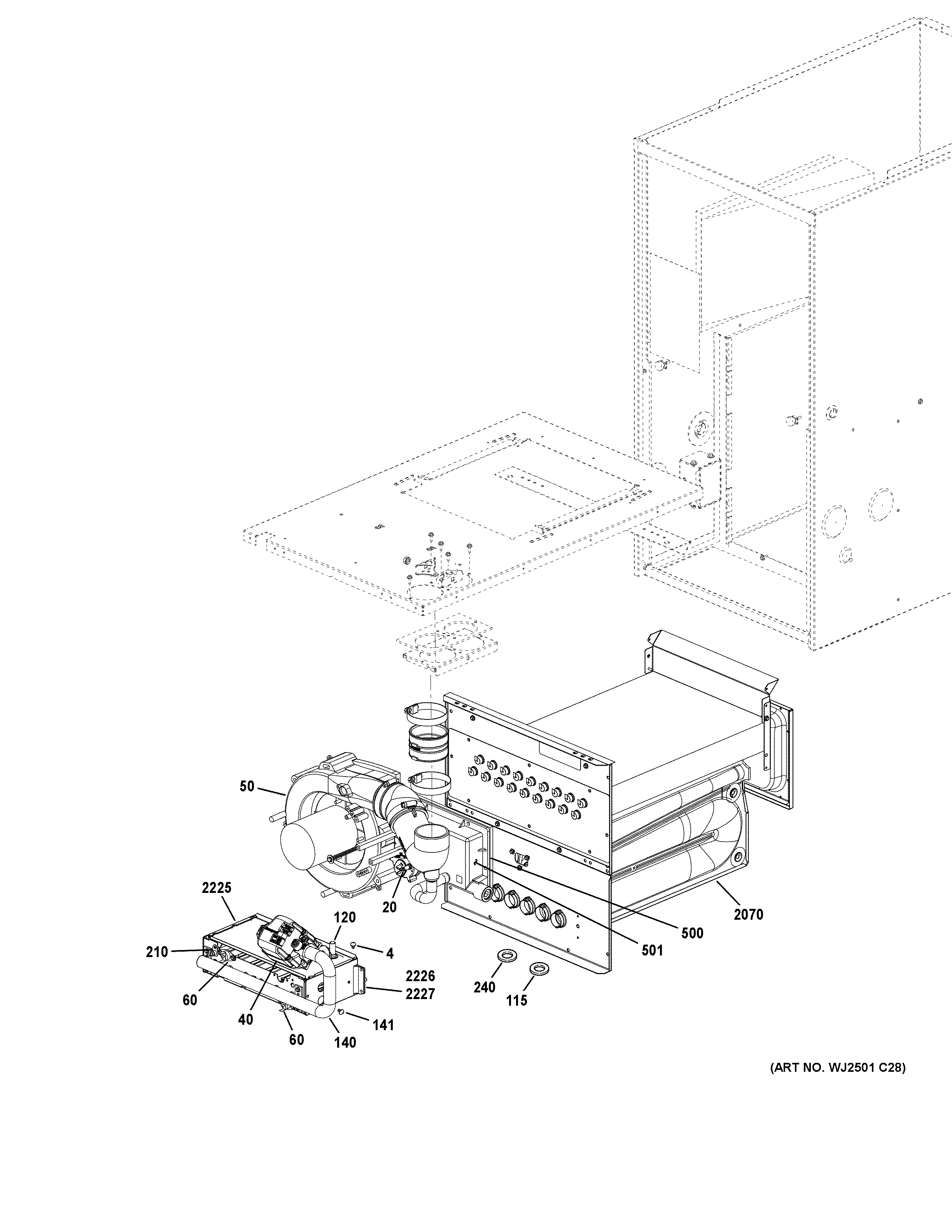

NF80L090S4B51 CABINET (2)

Products

Position	Product
4	101910-05 Orifice-LP #61-(CTO)
20	103247-11 SWITCH - PRESSURE .70
40	102837-01 VALVE-GAS (NAT)
50	BLOWER-COMB AIR S/A-(CTO)
60	102907-01 Roll Out Switch (210F)
115	INSERT NOX (2 HOLES)-(CTO)
120	LB-112237B IGNITOR ASSY-(CTO)
140	MANIFOLD-GAS-(CTO)
141	ORIFICE-NAT-1/16-(CTO)
210	LB-74940B Flame Sensor Kit (102431-02)
240	GASKET-ORIFICE PLATE-(CTO)
500	GASKET-COLL BOX-(CTO)
501	BOX-COLLECTOR-(CTO)
2070	ASSY HEAT EXCH (CTO)
2225	BURNER ASSY (090)-(CTO)
2226	BRACKET-BURNER MTG-L-(CTO)
2227	104595-01 BURNER BRKT MTG-RT-(CTO)
