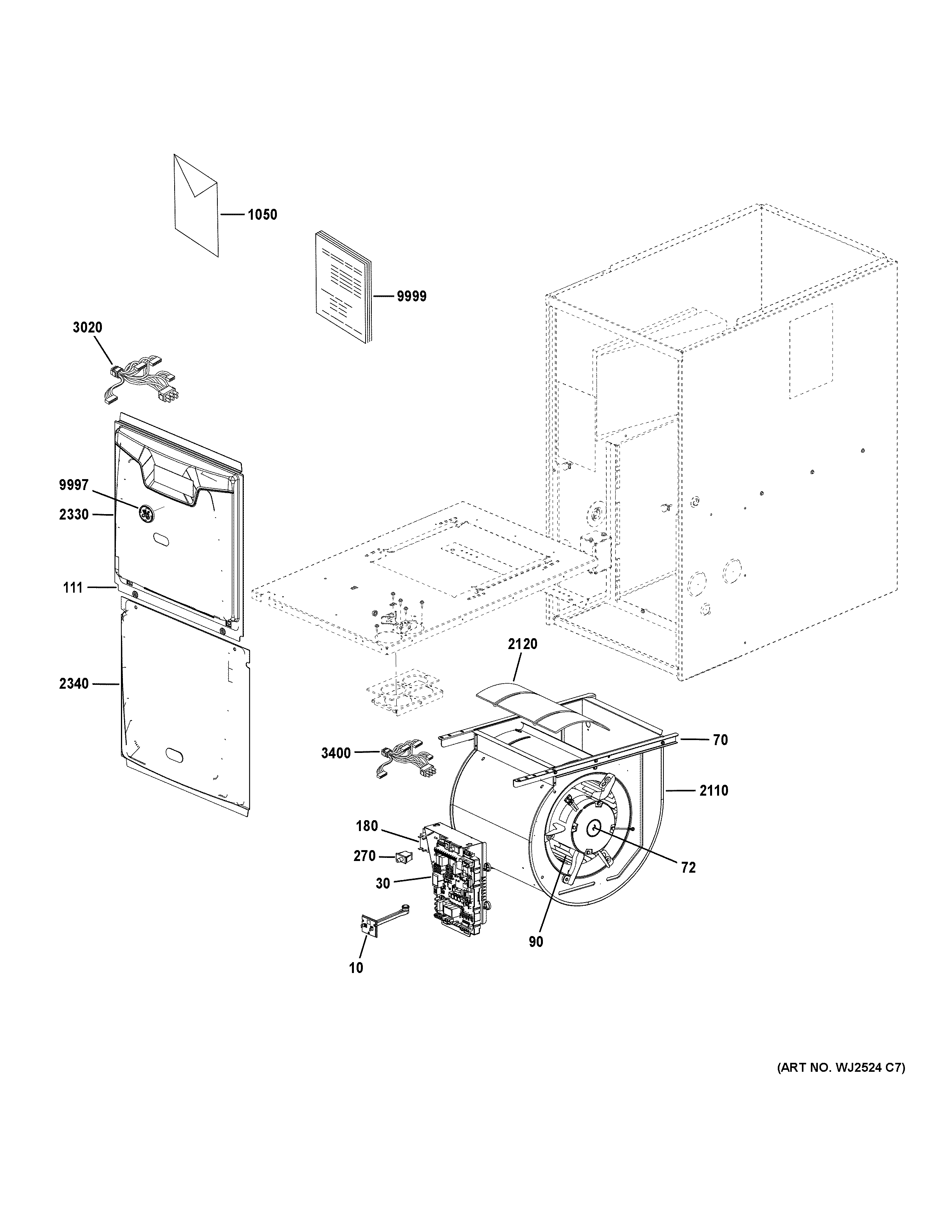

NF80U045S3A55 CABINET (1)

NF80U045S3A55 CABINET (1)

Written by

in

NF80U045S3A55 CABINET (1)

Products

PositionProduct
1069W42 GE 102135-09 Limit Control (220°F)
30607436-03 Ignition Control Kit
70MOUNT MOTOR-(CTO)
72624623-01 MOTOR REPL 1/2HP 115V CT
90WHEEL-BLOWER-(CTO)
111PNL FILLER DOOR TRIM-(CTO)
18042J3201 TRANSFORMER
270SWITCH-INTERLOCK-(CTO)
1050STICKER – WIRING DIAGRAM-(CTO)
2110HSG-BLWR 10X8 612256-02-(CTO)
2120BLWR HSG CUTOFF PLATE-(CTO)
2330TOP DOOR, A-WIDTH 80/90% UF BLWR-(CTO)
2340BTM DOOR,A-WIDTH, 80% UF VEST-(CTO)
3020HARNESS-WIRING-(CTO)
3400MOTOR HARNESS-(CTO)
9997SIDE GEA BADGE
9999PM SERVICE INSTRUCTIONS
