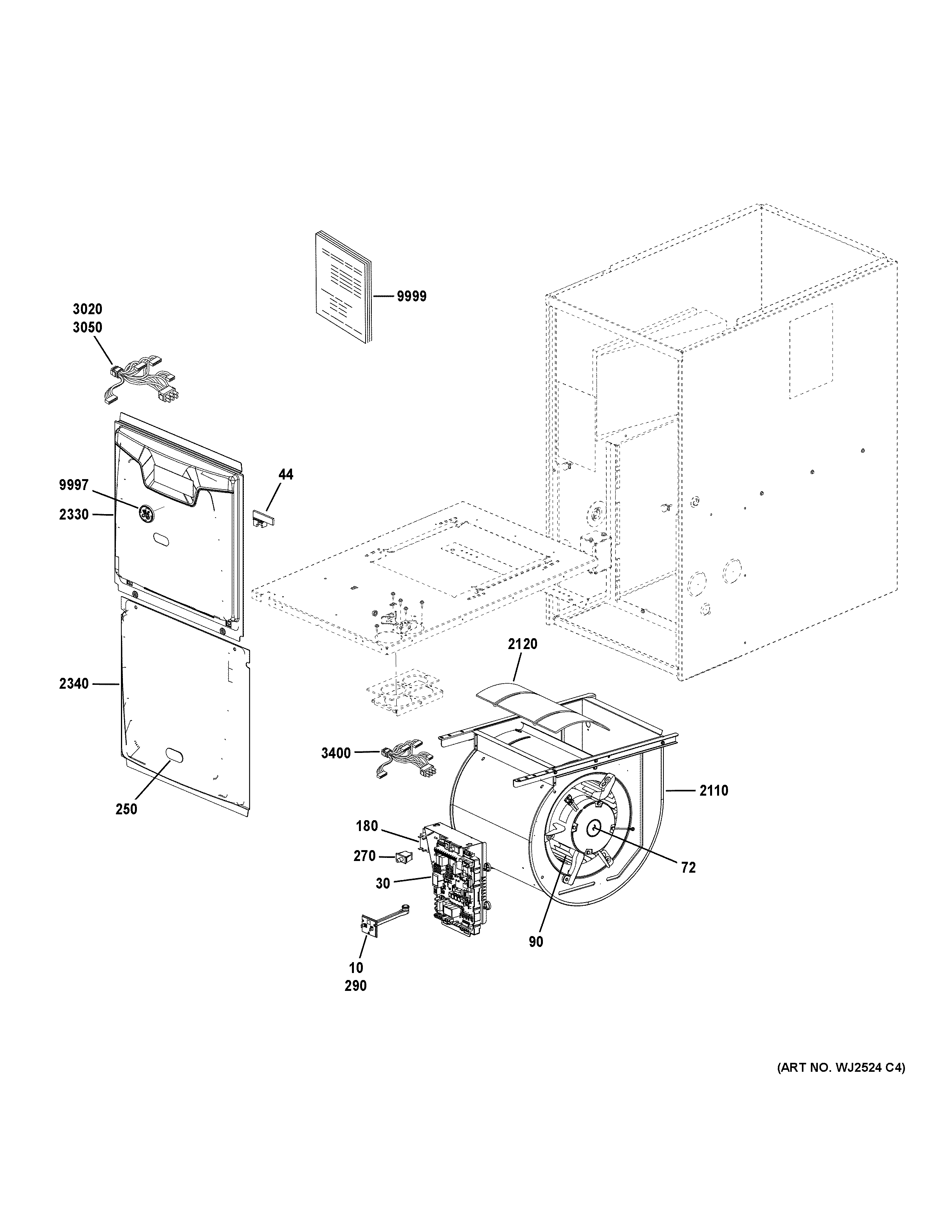

NF80U070T3A52 CABINET (1)

NF80U070T3A52 CABINET (1)

Written by

in

NF80U070T3A52 CABINET (1)

Products

PositionProduct
10CONTROL-LIMIT (175F)
30607308-24 KIT-IGN CONTROL
44BREAKER CIRCUIT-(CTO)
72ASSY, MOTOR PROGRAMMED 607363-30
90WHEEL-BLOWER-(CTO)
18042J3201 TRANSFORMER
250SIGHT GLASS-(CTO)
270SWITCH-INTERLOCK-(CTO)
29069M38 GE Control Limit (Aux) 135F
2110HSG-BLWR 10X8 612256-02-(CTO)
2120BLWR HSG CUTOFF PLATE-(CTO)
2330TOP DOOR, A-WIDTH 80/90% UF BLWR-(CTO)
2340BTM DOOR,A-WIDTH, 80% UF VEST-(CTO)
3020HARNESS-WIRING UNIT-(CTO)
3050HARN WIRE-(CTO)
3400MOTOR HARNESS-(CTO)
9997SIDE GEA BADGE
9999PM SERVICE INSTRUCTIONS
