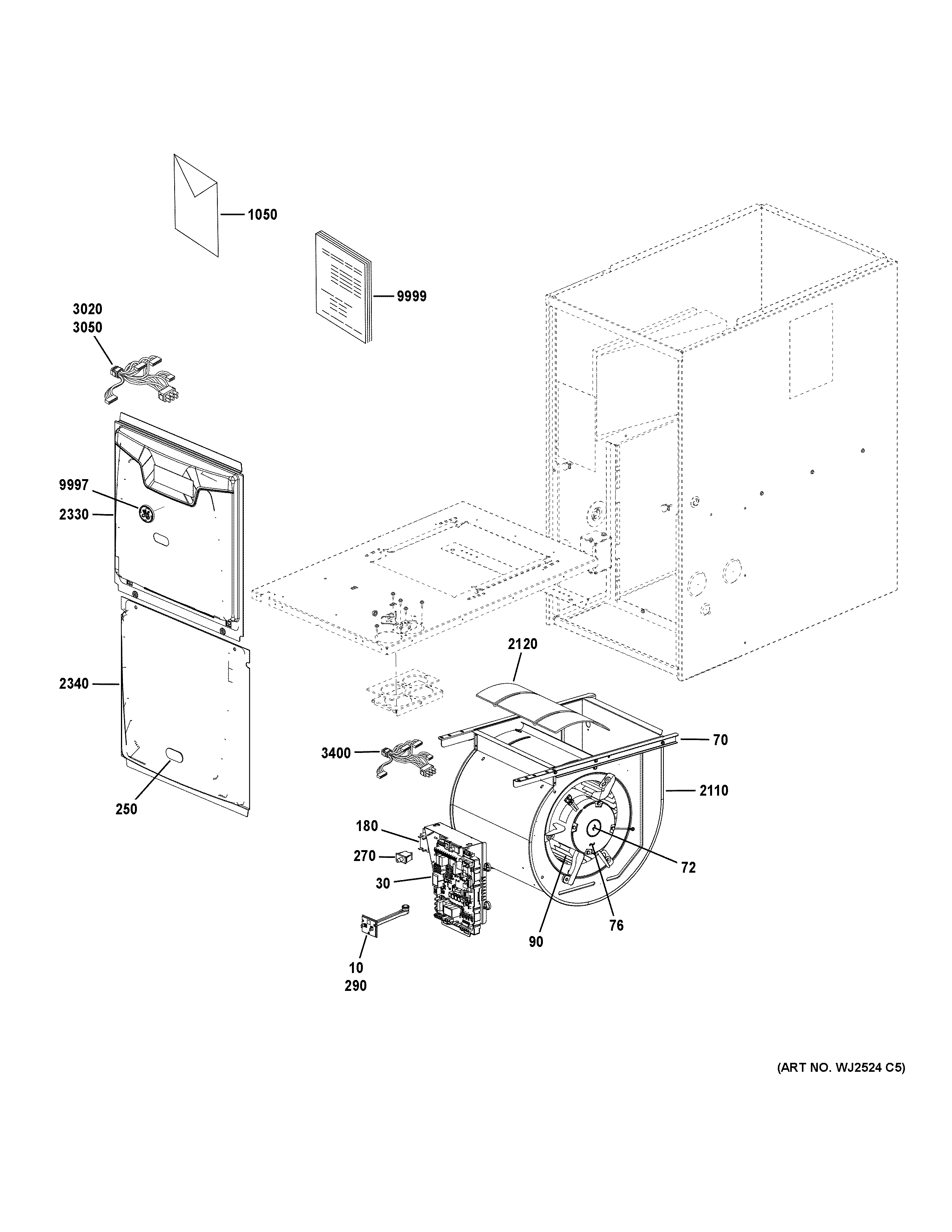

NF80U070V3A56 CABINET (1)

NF80U070V3A56 CABINET (1)

Written by

in

NF80U070V3A56 CABINET (1)

Products

PositionProduct
1069W42 GE 102135-09 Limit Control (220°F)
30607308-14 KIT-IGNITION CONTROL
70MOUNT MOTOR-(CTO)
72MTR-BLR 5.0(Mod sold separate)-(CTO)
76610587-01 Module Kit
90WHEEL-BLOWER-(CTO)
18042J3201 TRANSFORMER
250SIGHT GLASS-(CTO)
270SWITCH-INTERLOCK-(CTO)
29069M38 GE Control Limit (Aux) 135F
1050WIRING DIAGRAM STICKER-(CTO)
2110HSG-BLWR 10X8 612256-02-(CTO)
2120BLWR HSG CUTOFF PLATE-(CTO)
2330TOP DOOR, A-WIDTH 80/90% UF BLWR-(CTO)
2340BTM DOOR,A-WIDTH, 80% UF VEST-(CTO)
3020HARNESS-WIRING-(CTO)
3050HARN WIRE-(CTO)
3400HARNESS-WIRE-(CTO)
9997SIDE GEA BADGE
9999PM SERVICE INSTRUCTIONS
