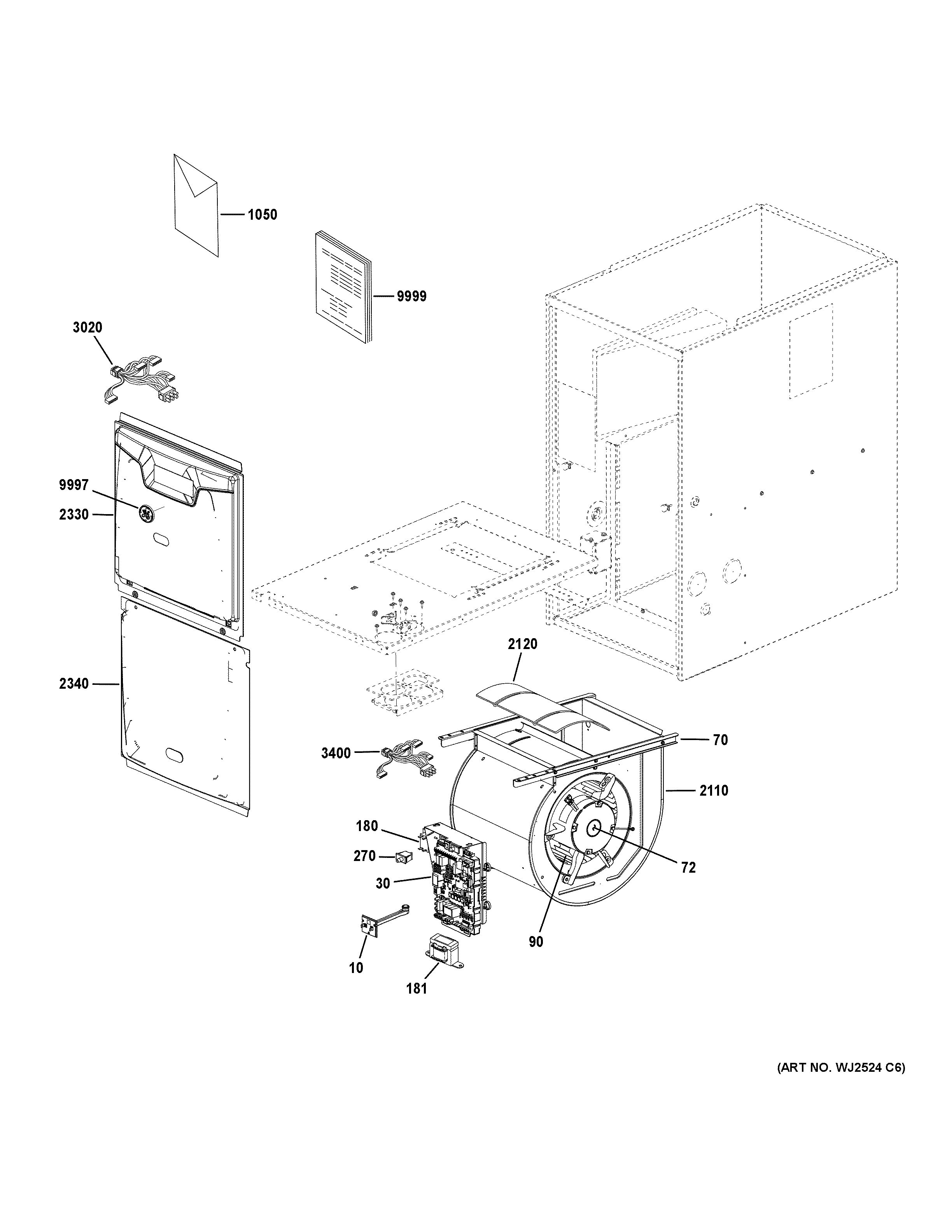

NF80U090S4B54 CABINET (1)

NF80U090S4B54 CABINET (1)

Written by

in

NF80U090S4B54 CABINET (1)

Products

PositionProduct
10102135-06 Control-Limit (190F)
30607436-03 Ignition Control Kit
70MOUNT MOTOR-(CTO)
72607421-05 X13 3/4HP Motor-Prog. Blower
90LB-29333BM WHEEL-(CTO)
18042J3201 TRANSFORMER
181TRANSFORMER POWER CHOKE-(CTO)
270SWITCH-INTERLOCK-(CTO)
1050STICKER – WIRING DIAGRAM-(CTO)
2110HOUSING-BLOWER -(CTO)
2120PLATE-CUTOFF-(CTO)
2330TOP DOOR B-WIDTH 90% UF BLWR-(CTO)
2340BTM DOOR B-WIDTH 80% UF VEST-(CTO)
3020HARNESS-WIRING-(CTO)
3400MOTOR HARNESS-(CTO)
9997SIDE GEA BADGE
9999PM SERVICE INSTRUCTIONS
