NF80U090S5C54 CABINET (1) – Aparts

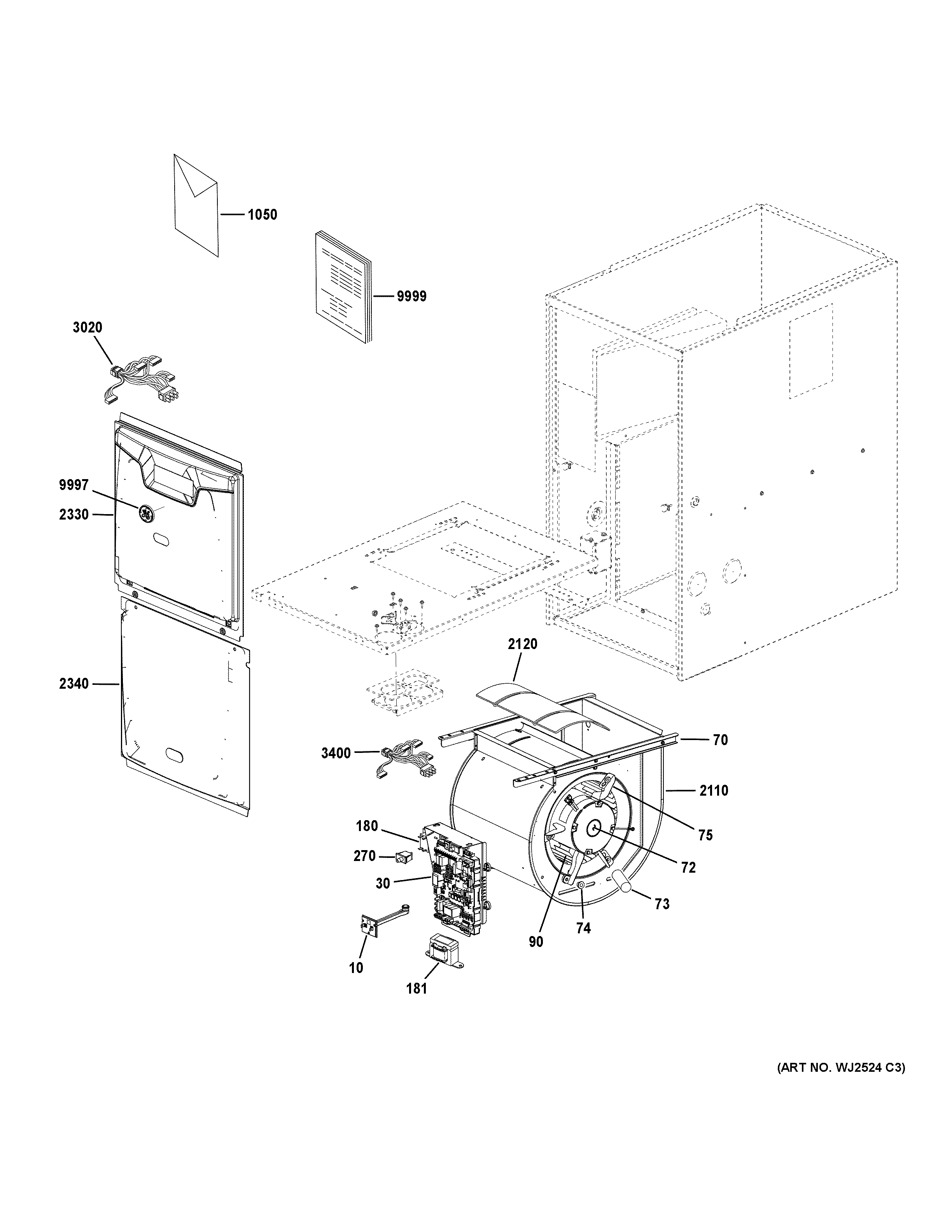

NF80U090S5C54 CABINET (1)

Products

Position	Product
10	102135-12 Control-Limit (155F)
30	607436-03 Ignition Control Kit
70	MOUNT-MOTOR-(CTO)
72	607421-10 X13 1HP Motor - Programmed
73	SLEEVE-(CTO)
74	GROMMET-(CTO)
75	ARM-MOTOR MTG-(CTO)
90	WHEEL-BLOWER-(CTO)
180	42J3201 TRANSFORMER
181	TRANSFORMER POWER CHOKE-(CTO)
270	SWITCH-INTERLOCK-(CTO)
1050	STICKER - WIRING DIAGRAM-(CTO)
2110	HOUSING-BLOWER-(CTO)
2120	PLATE-CUTOFF-(CTO)
2330	TOP DOOR C-WIDTH 90% UF BLWR-(CTO)
2340	BTM DOOR C-WIDTH 80% UF VEST-(CTO)
3020	607348-02 Harness-Wiring-(CTO)
3400	MOTOR HARNESS-(CTO)
9997	SIDE GEA BADGE
9999	PM SERVICE INSTRUCTIONS
