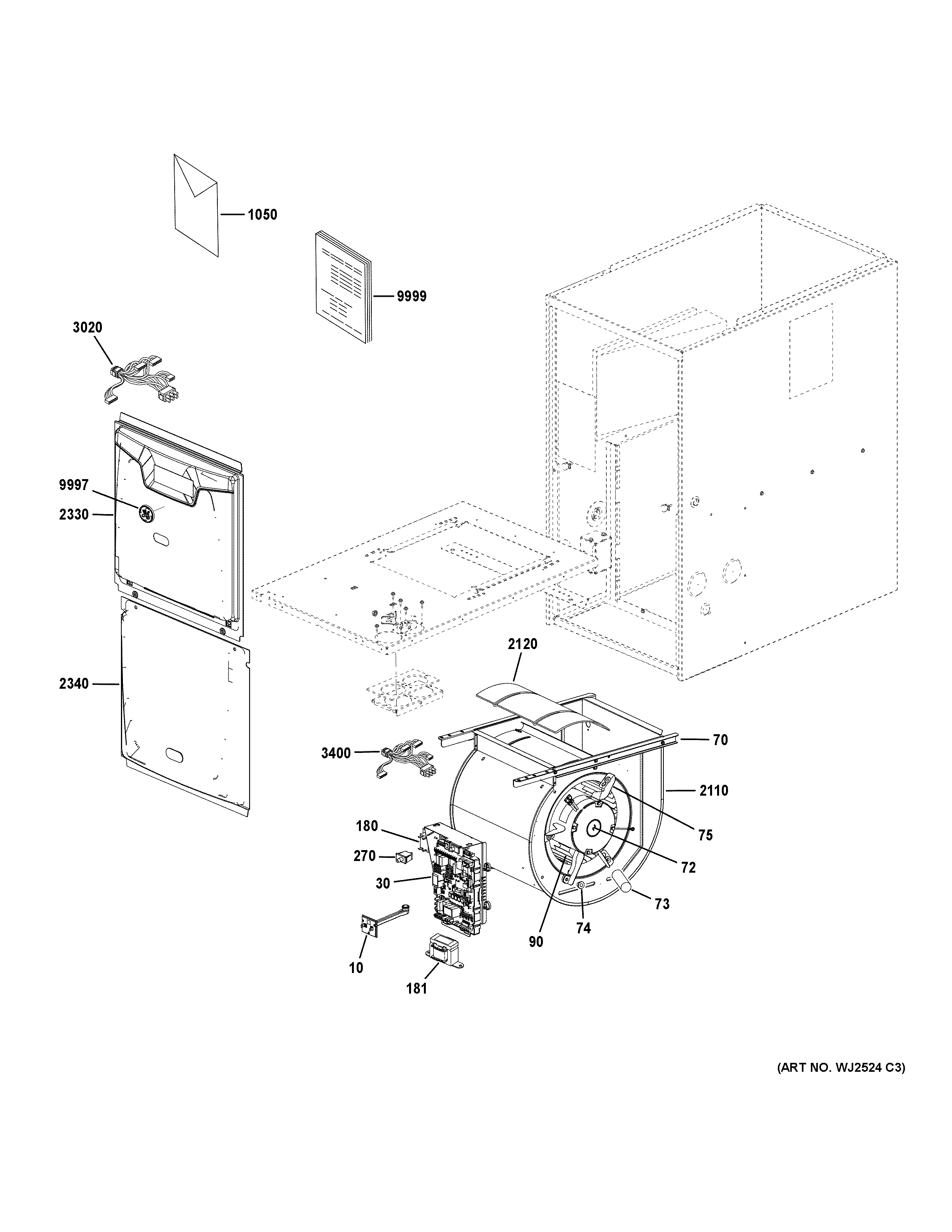

NF80U090S5C55 CABINET (1)

NF80U090S5C55 CABINET (1)

Written by

in

NF80U090S5C55 CABINET (1)

Products

PositionProduct
10102135-12 Control-Limit (155F)
30607436-03 Ignition Control Kit
70MOUNT-MOTOR-(CTO)
72624623-14 MOTOR REPL 1HP 115V CT
73SLEEVE-(CTO)
74GROMMET-(CTO)
75ARM-MOTOR MTG-(CTO)
90WHEEL-BLOWER-(CTO)
18042J3201 TRANSFORMER
181TRANSFORMER POWER CHOKE-(CTO)
270SWITCH-INTERLOCK-(CTO)
1050STICKER – WIRING DIAGRAM-(CTO)
2110HOUSING-BLOWER-(CTO)
2120PLATE-CUTOFF-(CTO)
2330TOP DOOR C-WIDTH 90% UF BLWR-(CTO)
2340BTM DOOR C-WIDTH 80% UF VEST-(CTO)
3020607348-02 Harness-Wiring-(CTO)
3400HARNESS-MOTOR X13 CONSTANT
9997SIDE GEA BADGE
9999PM SERVICE INSTRUCTIONS
