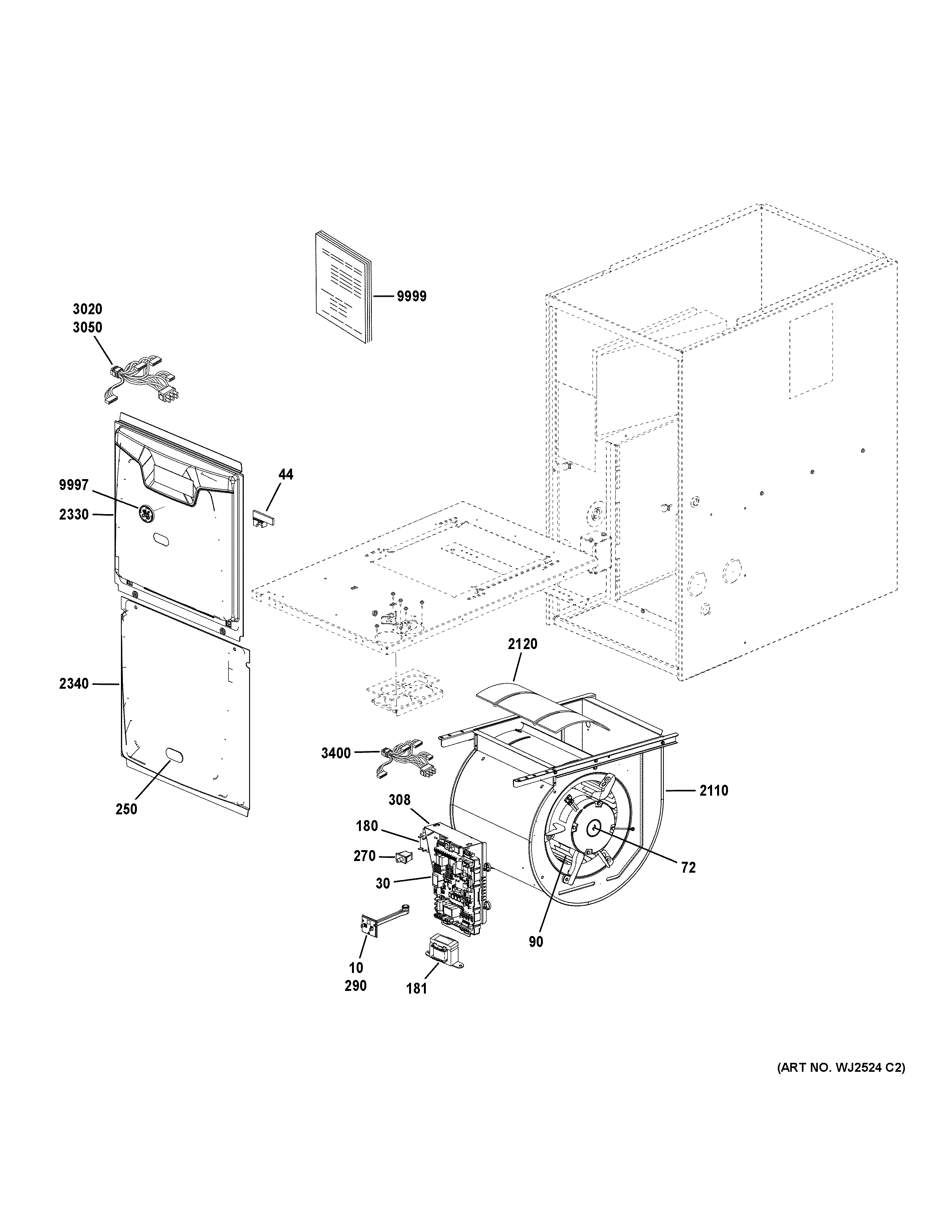

NF80U090T4B52 CABINET (1)

NF80U090T4B52 CABINET (1)

Written by

in

NF80U090T4B52 CABINET (1)

Products

PositionProduct
1069W42 GE 102135-09 Limit Control (220°F)
30103132-03 CONTROL-IGN CONT-TORQUE-2STAGE
44BREAKER CIRCUIT-(CTO)
72ASSY, MOTOR PROGRAMMED 607363-24
90LB-29333BM WHEEL-(CTO)
18042J3201 TRANSFORMER
181TRANSFORMER POWER CHOKE-(CTO)
250SIGHT GLASS-(CTO)
270SWITCH-INTERLOCK-(CTO)
29069M38 GE Control Limit (Aux) 135F
308BOX-CONTROL-(CTO)
2110HSG-BLWR 10X8 612256-02-(CTO)
2120PLATE-CUTOFF-(CTO)
2330TOP DOOR B-WIDTH 90% UF BLWR-(CTO)
2340BTM DOOR B-WIDTH 80% UF VEST-(CTO)
3020HARNESS-WIRING UNIT-(CTO)
3050HARN WIRE-(CTO)
3400MOTOR HARNESS-(CTO)
9997SIDE GEA BADGE
9999PM SERVICE INSTRUCTIONS
