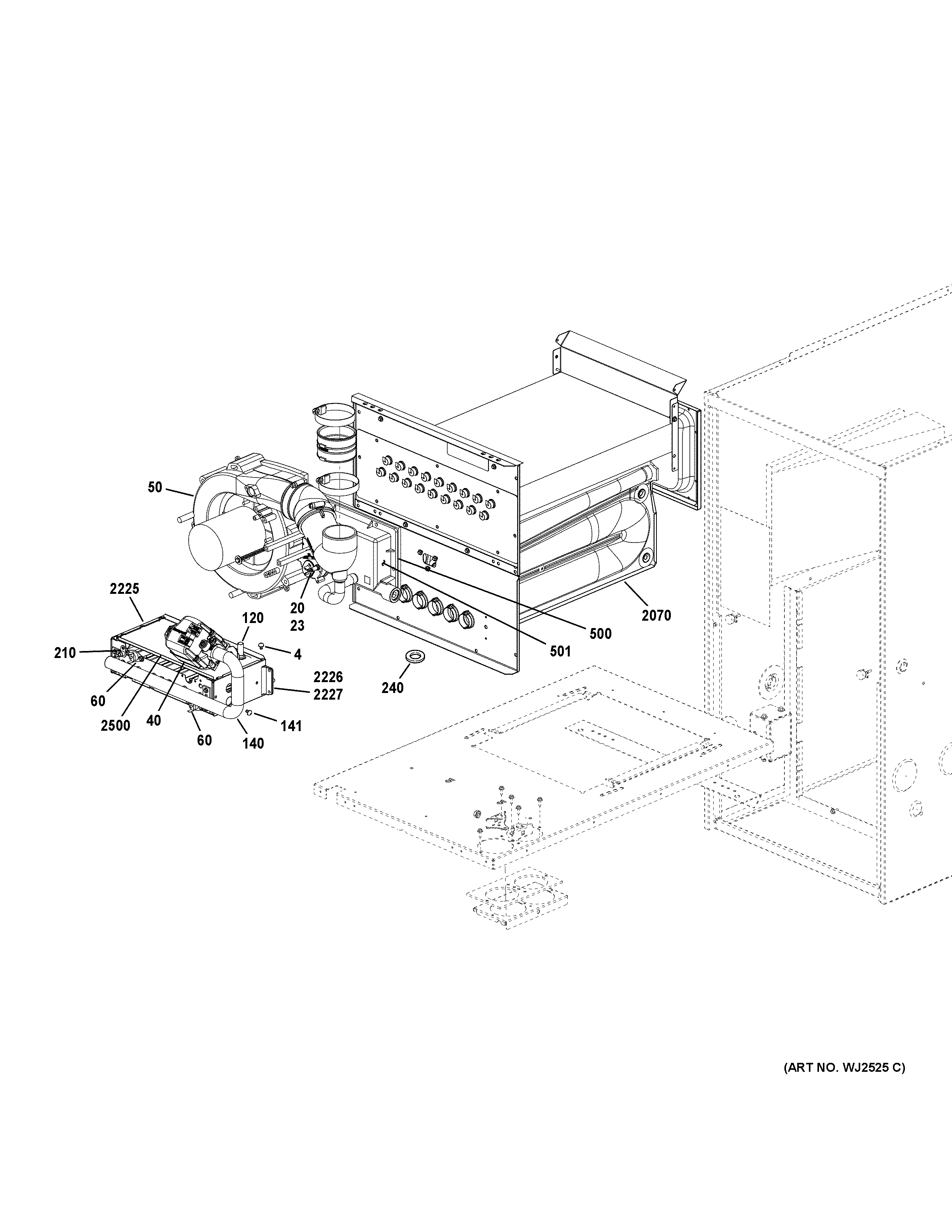

NF80U090V4B56 CABINET (2)

Products

Position	Product
4	101910-05 Orifice-LP #61-(CTO)
20	73W33 GE 102737-07 Pressure Switch 2 St
23	102737-09 Switch-Pressure 2 Stg(.55/.25)
40	103181-01 VALVE-GAS (2 STG NAT)
50	73W09 GE LB-94724T Blower Comb Air S/A
60	102907-01 Roll Out Switch (210F)
120	LB-112237B IGNITOR ASSY-(CTO)
140	MANIFOLD-GAS-(CTO)
141	ORIFICE-NAT-1/16-(CTO)
210	LB-74940B Flame Sensor Kit (102431-02)
240	GASKET-ORIFICE PLATE-(CTO)
500	GASKET-COLL BOX-(CTO)
501	BOX-COLLECTOR-(CTO)
2070	ASSY HEAT EXCH (610280-04)-(CTO)
2225	BURNER ASSY (090)-(CTO)
2226	BRACKET-BURNER MTG-L-(CTO)
2227	104595-01 BURNER BRKT MTG-RT-(CTO)
2500	COVER-BURNER BOX-(CTO)
