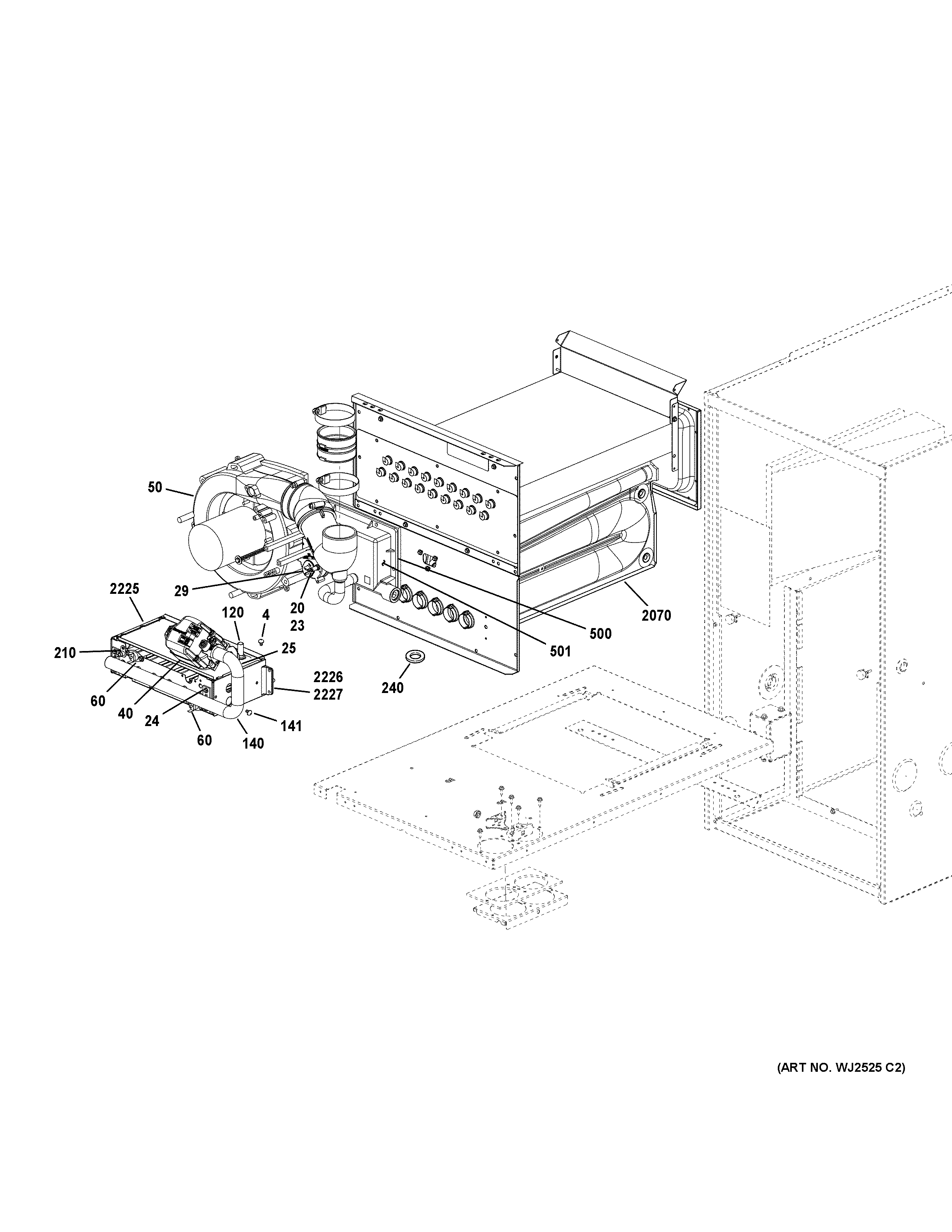

NF80U110T5C52 CABINET (2)

NF80U110T5C52 CABINET (2)

Written by

in

NF80U110T5C52 CABINET (2)

Products

PositionProduct
4Orifice-LP .034
2069W57 GE 102737-05 Pressure Switch 2 St
23102737-09 Switch-Pressure 2 Stg(.55/.25)
24WIRE-FLAME SENSOR-(CTO)
25BRACKET-IGNITOR-(CTO)
29102737-11 Switch-Pressure 2 Stg(.30/.60)
40103181-01 VALVE-GAS (2 STG NAT)
5073W09 GE LB-94724T Blower Comb Air S/A
60102907-01 Roll Out Switch (210F)
120LB-112237B IGNITOR ASSY-(CTO)
140MANIFOLD-GAS-(CTO)
141ORIFICE-NAT-1/16-(CTO)
210LB-74940B Flame Sensor Kit (102431-02)
240GASKET-ORIFICE PLATE-(CTO)
500GASKET-COLL BOX-(CTO)
501BOX COLLECTOR-(CTO)
2070ASSY HEAT EXCH (610280-06)-(CTO)
2225BURNER ASSY (110)-(CTO)
2226BURNER BRKT MTG-LEFT-(CTO)
2227104595-01 BURNER BRKT MTG-RT-(CTO)
