NF80U110V5C56 CABINET (1)

NF80U110V5C56 CABINET (1)

Written by

in

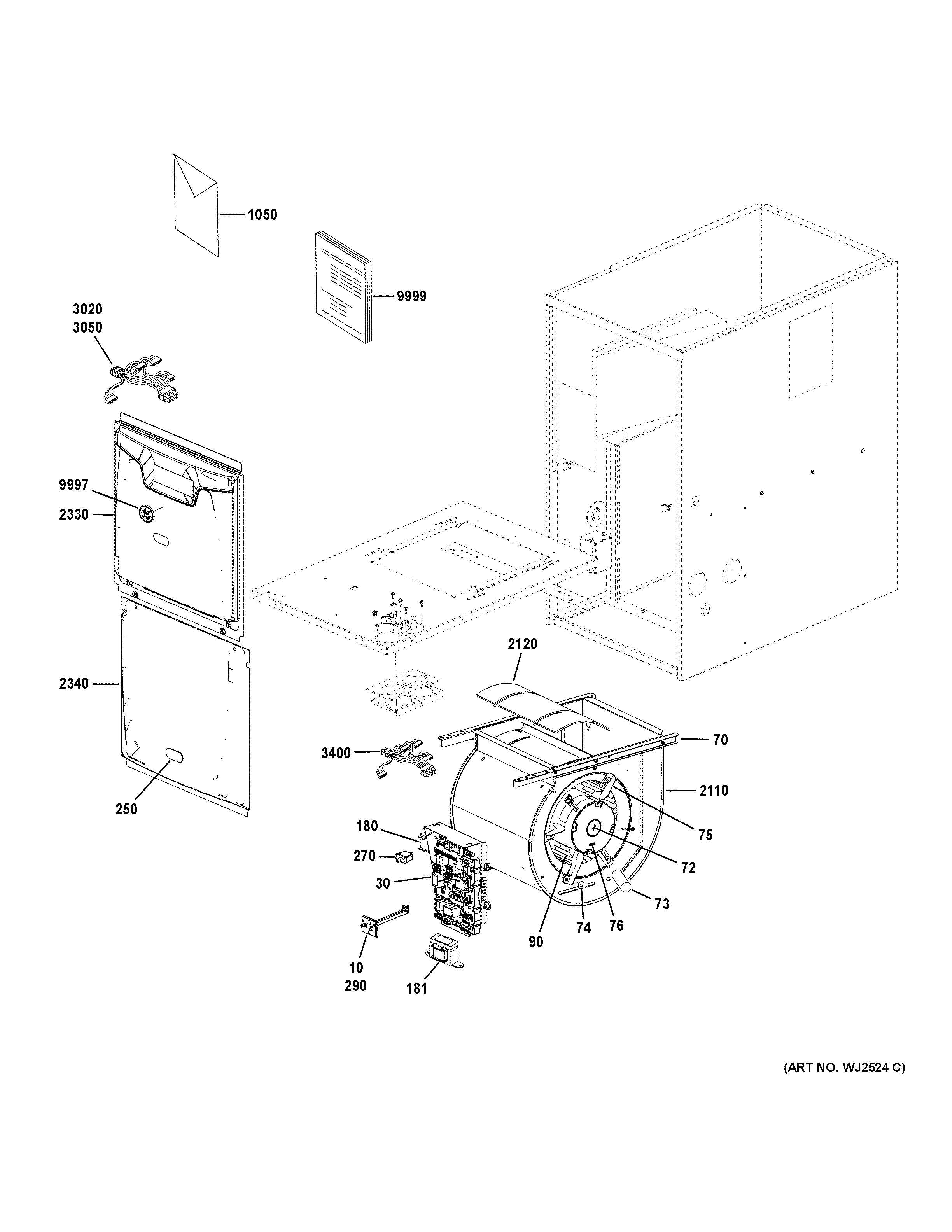

NF80U110V5C56 CABINET (1)

Products

PositionProduct
10102135-04 Control-Limit Aux (165F)
30607308-14 KIT-IGNITION CONTROL
70MOUNT-MOTOR-(CTO)
72MOTOR-BLOWER ONLY (module sold separate)
73SLEEVE-(CTO)
74GROMMET-(CTO)
75ARM-MOTOR MTG-(CTO)
76610587-13 Module Kit
90WHEEL-BLOWER-(CTO)
18042J3201 TRANSFORMER
181TRANSFORMER POWER CHOKE-(CTO)
250SIGHT GLASS-(CTO)
270SWITCH-INTERLOCK-(CTO)
29069M38 GE Control Limit (Aux) 135F
1050WIRING DIAGRAM STICKER-(CTO)
2110HOUSING-BLOWER-(CTO)
2120PLATE-CUTOFF-(CTO)
2330TOP DOOR C-WIDTH 90% UF BLWR-(CTO)
2340BTM DOOR C-WIDTH 80% UF VEST-(CTO)
3020HARNESS-WIRING-(CTO)
3050HARN WIRE-(CTO)
3400HARNESS UNIT-(CTO)
9997SIDE GEA BADGE
9999PM SERVICE INSTRUCTIONS
