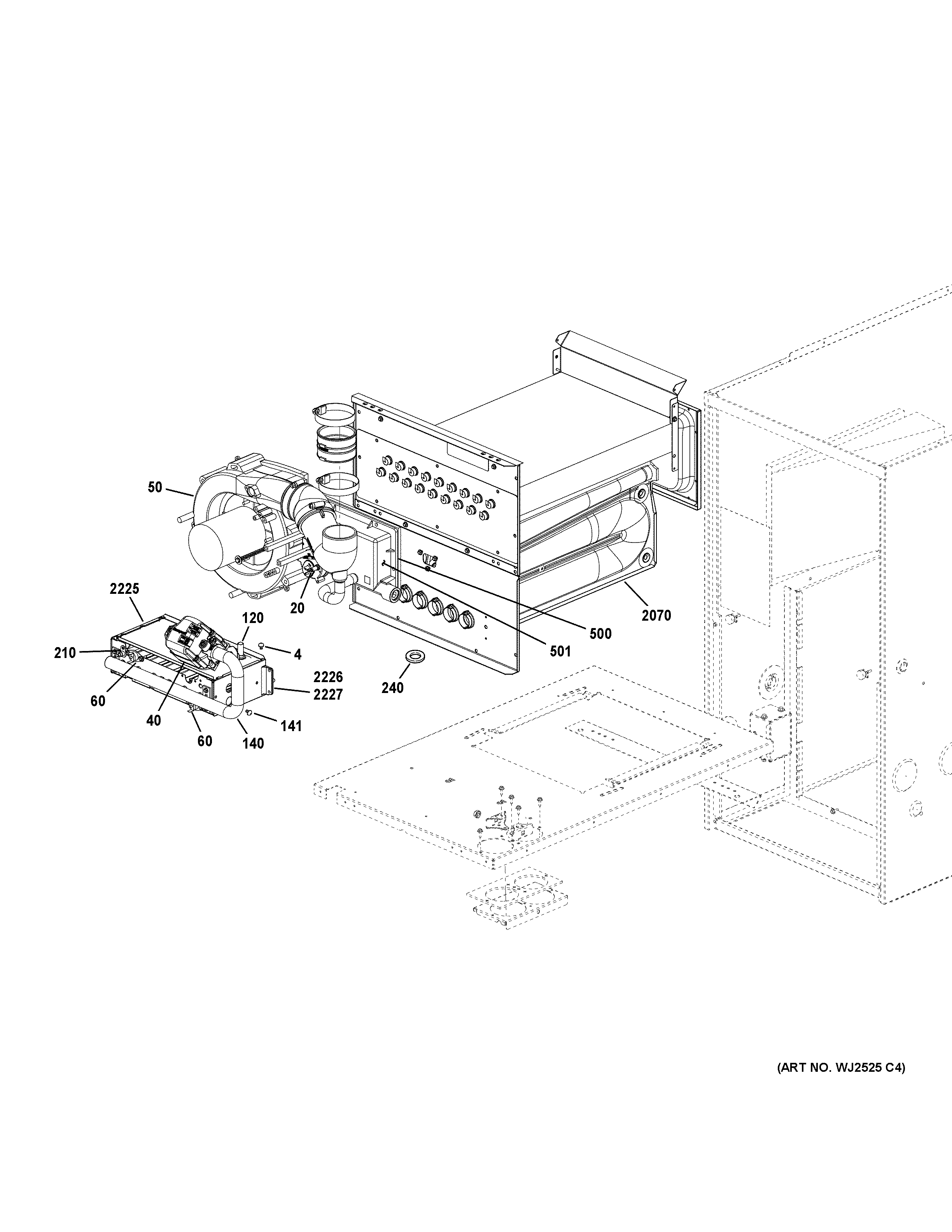

NF80U135S5D55 CABINET (2)

NF80U135S5D55 CABINET (2)

Written by

in

NF80U135S5D55 CABINET (2)

Products

Position	Product
4	101910-05 Orifice-LP #61-(CTO)
20	103247-09 Switch-Pressure .65
40	102837-01 VALVE-GAS (NAT)
50	BLOWER-COMB AIR S/A-(CTO)
60	102907-01 Roll Out Switch (210F)
120	LB-112237B IGNITOR ASSY-(CTO)
140	103087-05 MANIFOLD-GAS-(CTO)
141	ORIFICE-NAT-1/16-(CTO)
210	LB-74940B Flame Sensor Kit (102431-02)
240	GASKET-ORIFICE PLATE-(CTO)
500	102697-04 GASKET-COLL BOX-(CTO)
501	600044-04 BOX-COLLECTOR-(CTO)
2070	612998-05 ASSY HEAT EXCH (610280-07)-(CT
2225	ASSY BURNER (12)-(CTO)
2226	BRACKET-BURNER MTG-L-(CTO)
2227	104595-01 BURNER BRKT MTG-RT-(CTO)
