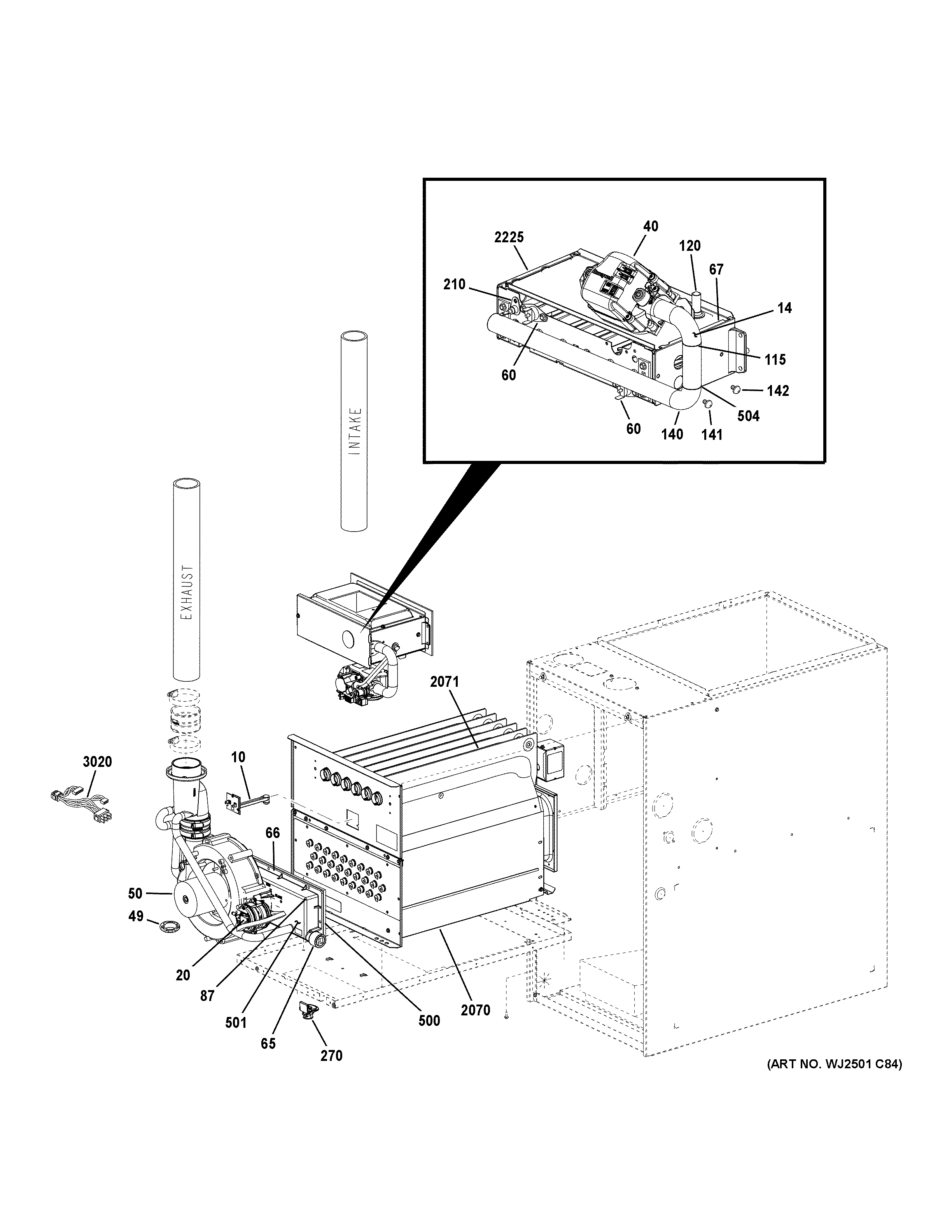

NF80X060S3A05 CABINET (2)

Products

PositionProduct
10Control-Limit (190F) Main-(CTO)
14ELBOW – GAS/AIR-(CTO)
20107170-02 SWTCH-PRESS SNG STG ULN .20"WC
40105077-01 GAS VALVE, SIT 1:1 NEG REG
49GKT-BRNR BOX/VEST PNL,040/060-(CTO)
50615543-10 CAI COMB-MTR KIT PSC 1-STG
60ROLLOUT LIMIT-(CTO)
65GKT-GRAPHITE BRNR/CC,040-060-(CTO)
66GKT-GRAPHITE BRNR/PLEN 040/060-(CTO)
67105165-01, Gasket-Graphite, Igniter/Sens
87PLENUM -GAS/AIR-(CTO)
115O-RING,MANIFOLD/ELBOW-(CTO)
120617498-01 IGNITOR ASSY
140105020-10 MANIFOLD ULN NOZZLE ASSY
141616086-26 AIR ORIFICE 1.047
142616086-30 AIR ORIFICE 1.030
21015K16 GE 104987-01 Flame Sensor Unit
270SWITCH-INTERLOCK-(CTO)
500107227-01 GASKET COLLECTOR BOX – ULN
501BOX – FLUE COLLECTOR-(CTO)
504O-RING, ELBOW/PLENUM-(CTO)
2070625024-05 HEAT EXCH 80% ULN 1S 60A
2071ASSY-HEAT SHIELD-(CTO)
2225BURNER – PREMIX-(CTO)
3020HARNESS(ULN80-060/080/100)-(CTO)
