NF80X060V3A05 ROOM AIR CONDITIONER

Products

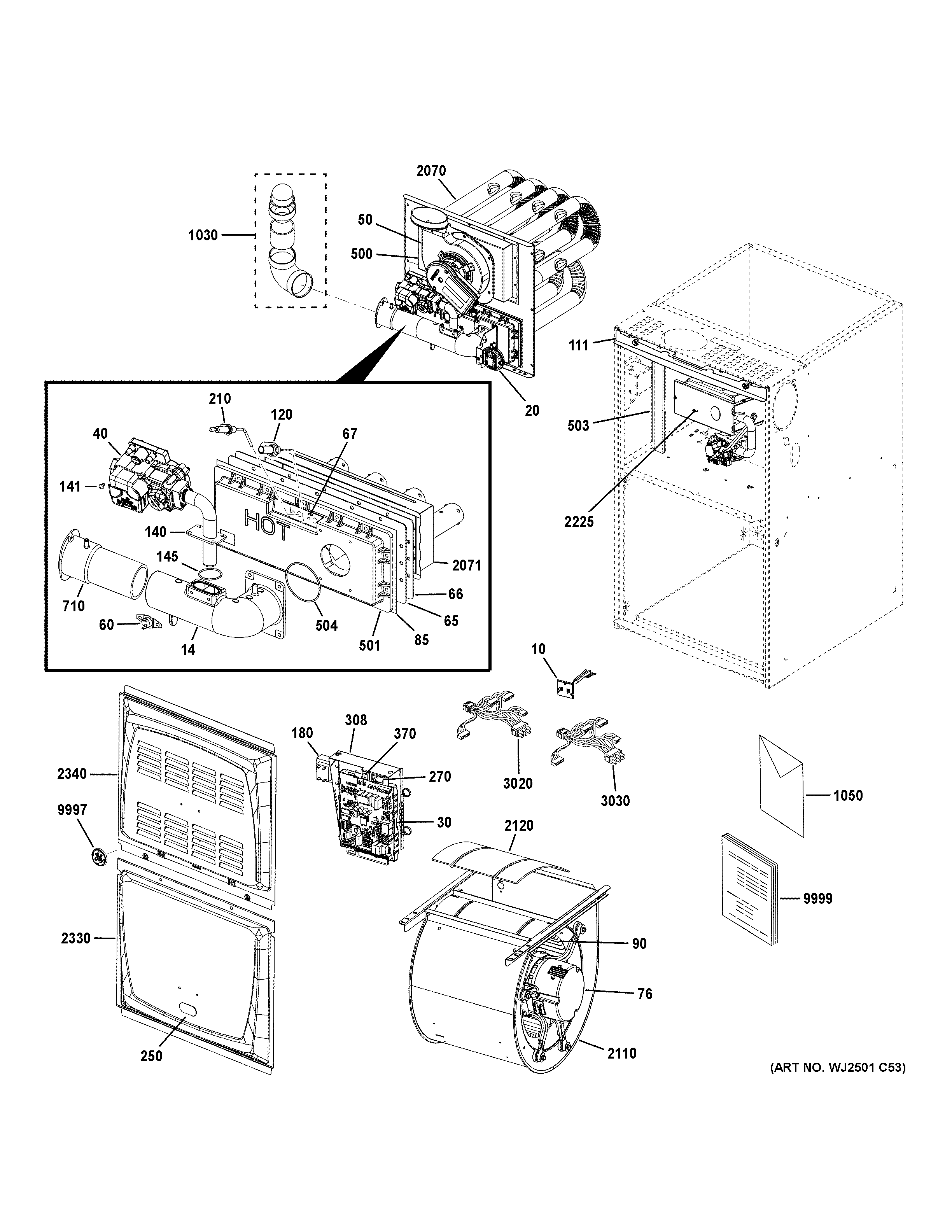

Position	Product
10	Control-Limit (190F) Main-(CTO)
14	ELBOW – GAS/AIR-(CTO)
20	107170-02 SWTCH-PRESS SNG STG ULN .20"WC
30	KIT-IGN CNTRL (103131-06)-(CTO)
40	105077-01 GAS VALVE, SIT 1:1 NEG REG
50	615543-09 CAI COMB-MTR KIT ECM 2-STG
60	ROLLOUT LIMIT-(CTO)
65	GKT-GRAPHITE BRNR/CC,080-(CTO)
66	GKT-GRAPHITE BRNR/PLEN, 080-(CTO)
67	105165-01, Gasket-Graphite, Igniter/Sens
76	Motor Control Kit Var Spd-(CTO)
85	GKT-BRNR BOX/VEST PNL, 080-(CTO)
90	WHEEL-BLOWER-(CTO)
111	PANEL FILLER DOOR TRIM-(CTO)
120	617498-01 IGNITOR ASSY
140	105020-13 MANIFOLD ULN NOZZLE ASSY
141	616086-28 AIR ORIFICE .880
145	O-RING,MANIFOLD/ELBOW-(CTO)
180	42J3201 TRANSFORMER
210	15K16 GE 104987-01 Flame Sensor Unit
250	SIGHTGLASS REPL KIT-(CTO)
270	SWITCH-INTERLOCK-(CTO)
308	BOX-CONTROL-(CTO)
370	BREAKER CIRCUIT-(CTO)
500	107227-01 GASKET COLLECTOR BOX – ULN
501	PLENUM – GAS/AIR-(CTO)
503	623111-01 BOX – COLLECT ULN CAST-040/060
504	O-RING, ELBOW/PLENUM-(CTO)
710	101461-01 ELBOW – 2" 90 STREET ELL
1030	105157-04 COUPLING AIR INTAKE ULN-90
1050	WIRE DIAGRAM STICKER-A80US2VX-(CTO)
2070	625024-01 HT EXCH 80% ULN 2S 60A/1S 40A
2071	ASSY – HEAT SHIELD-(CTO)
2110	BLOWER HSG 10 X 8 UH 625023-01 (CTO)
2120	PLATE-CUTOFF-(CTO)
2225	BURNER – PREMIX-(CTO)
2330	PANEL-LOWER-(CTO)
2340	PANEL-UPPER-(CTO)
3020	HARNESS MOTOR 3.0 ECM-(CTO)
3030	105049-01 HARNESS, 2SVS
9997	SIDE GEA BADGE
9999	PM SERVICE INSTRUCTIONS
