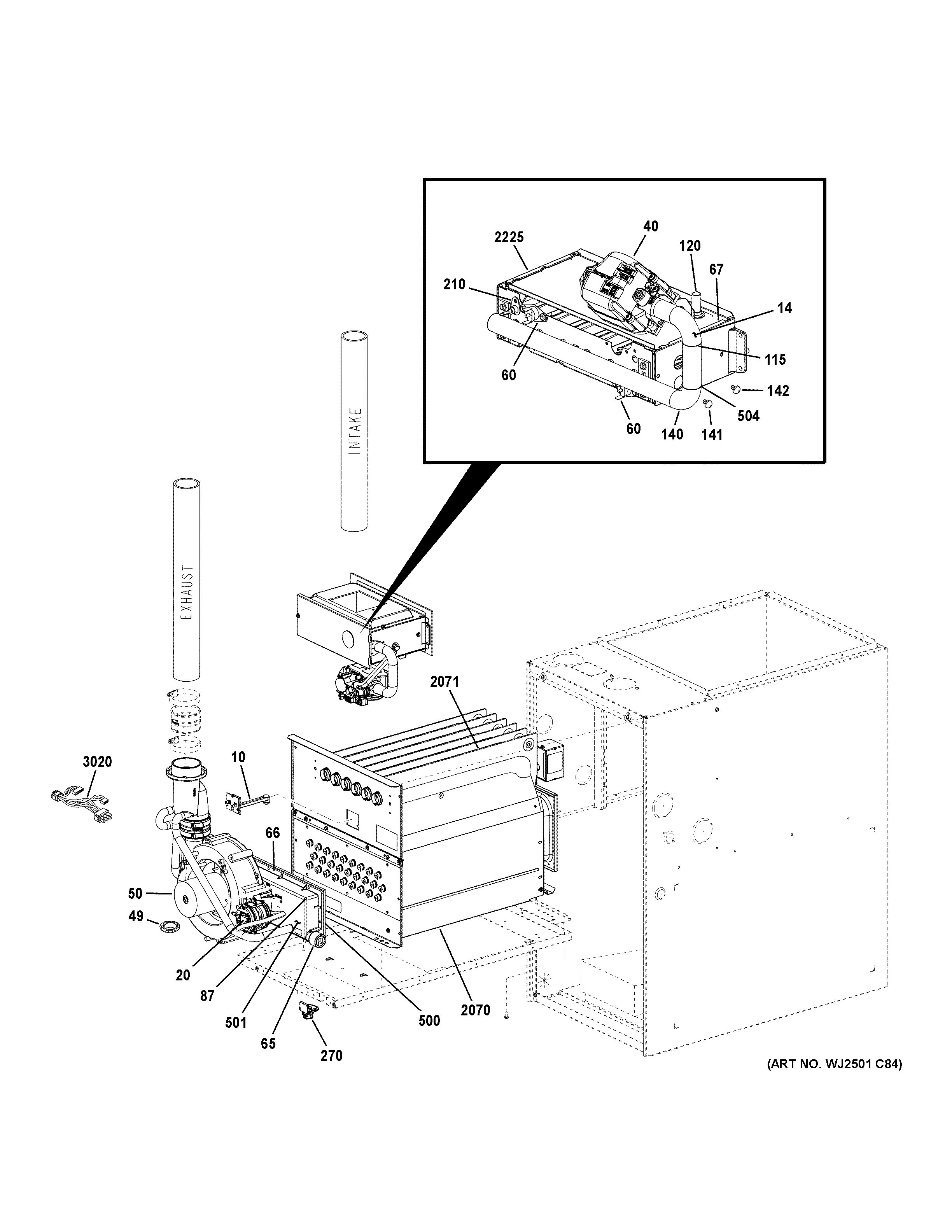

NF80X080S4B05 CABINET (2)

NF80X080S4B05 CABINET (2)

Written by

in

NF80X080S4B05 CABINET (2)

Products

PositionProduct
10102857-31 LIMIT CONTROL (STILT) 170F
14ELBOW – GAS/AIR-(CTO)
20107170-02 SWTCH-PRESS SNG STG ULN .20"WC
40105077-01 GAS VALVE, SIT 1:1 NEG REG
49GKT-BRNR BOX/VEST PNL, 080-(CTO)
50615543-10 CAI COMB-MTR KIT PSC 1-STG
60ROLLOUT LIMIT-(CTO)
65GKT-GRAPHITE BRNR/CC,080-(CTO)
66GKT-GRAPHITE BRNR/PLEN, 080-(CTO)
67105165-01, Gasket-Graphite, Igniter/Sens
87PLENUM – GAS/AIR-(CTO)
115O-RING,MANIFOLD/ELBOW-(CTO)
120617498-01 IGNITOR ASSY
140105020-11 MANIFOLD ULN NOZZLE ASSY
141Air Orifice Sz 1.210, Difficult ign/Nois
142616086-32 AIR ORIFICE
21015K16 GE 104987-01 Flame Sensor Unit
270SWITCH-INTERLOCK-(CTO)
500107227-02 GASKET COLLECTOR BOX – ULN
501623111-02 BOX – COLLECTOR ULN CAST (080)
504O-RING, ELBOW/PLENUM-(CTO)
2070625024-06 HEAT EXCH 80% ULN 1S 80B
2071ASSY – HEAT SHIELD-(CTO)
2225BURNER – PREMIX-(CTO)
3020HARNESS(ULN80-060/080/100)-(CTO)
