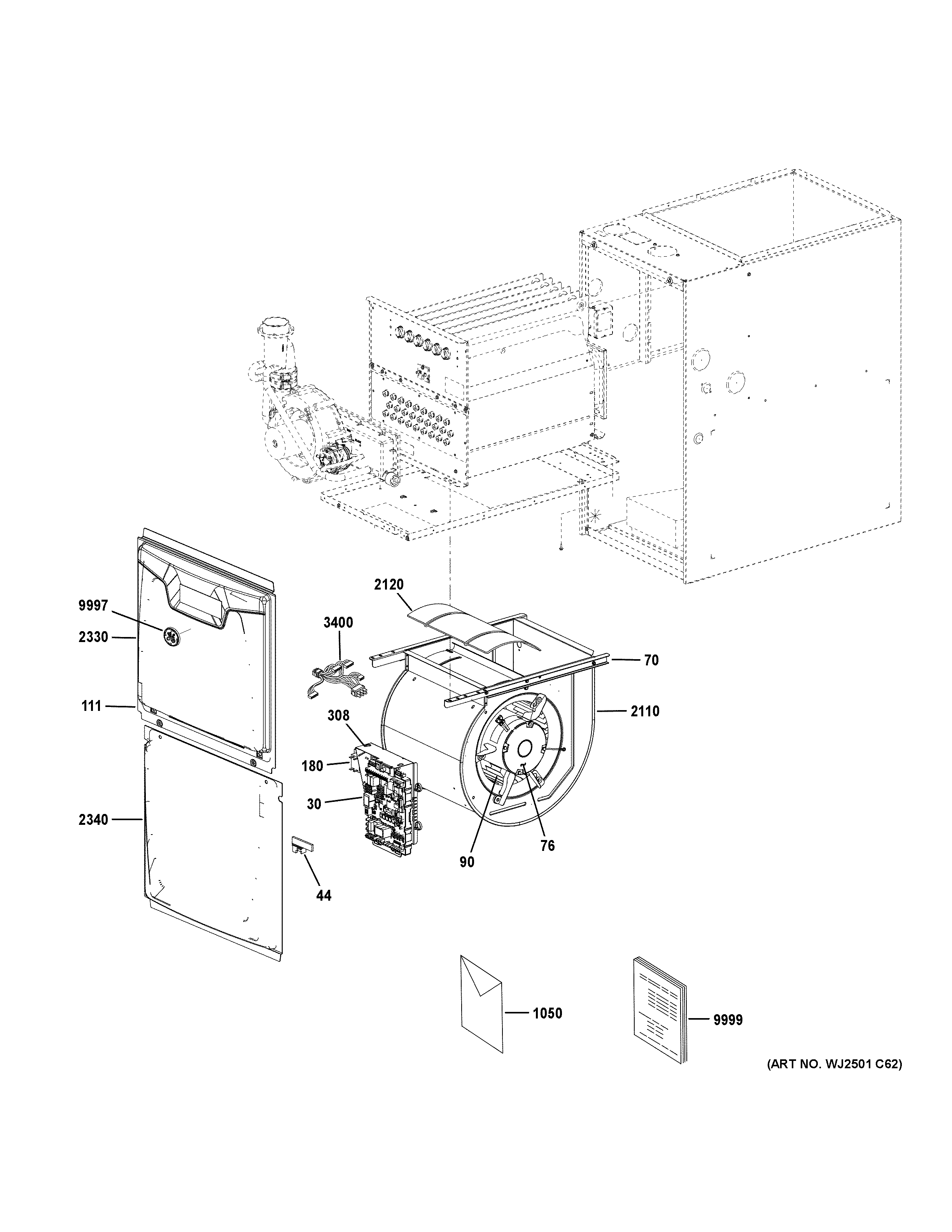

NF80X100S5C05 CABINET (1)

NF80X100S5C05 CABINET (1)

Written by

in

NF80X100S5C05 CABINET (1)

Products

PositionProduct
30607436-05 IGNITION CONTROL KIT
44BREAKER CIRCUIT-(CTO)
70622523-01 KIT ARM – MOTOR MTG 4 LEGS (CT
76624623-18 PROG MTR 1HP VAR SPD 115V CT
90WHEEL-BLOWER-(CTO)
111PANEL FILLER DOOR TRIM-(CTO)
18042J3201 TRANSFORMER
308BOX-CONTROL-(CTO)
1050STICKER-WIRING DIAGRAM-(CTO)
2110BLOWER HSG 10 X 10 UH 625023-03 (CTO)
2120PLATE-CUTOFF-(CTO)
2330PANEL-LOWER-(CTO)
2340PANEL-UPPER-(CTO)
3400HARNESS-MOTOR X13 CONSTANT
9997SIDE GEA BADGE
9999PM SERVICE INSTRUCTIONS
9999STICKER-WIRING DIAGRAM-(CTO)
