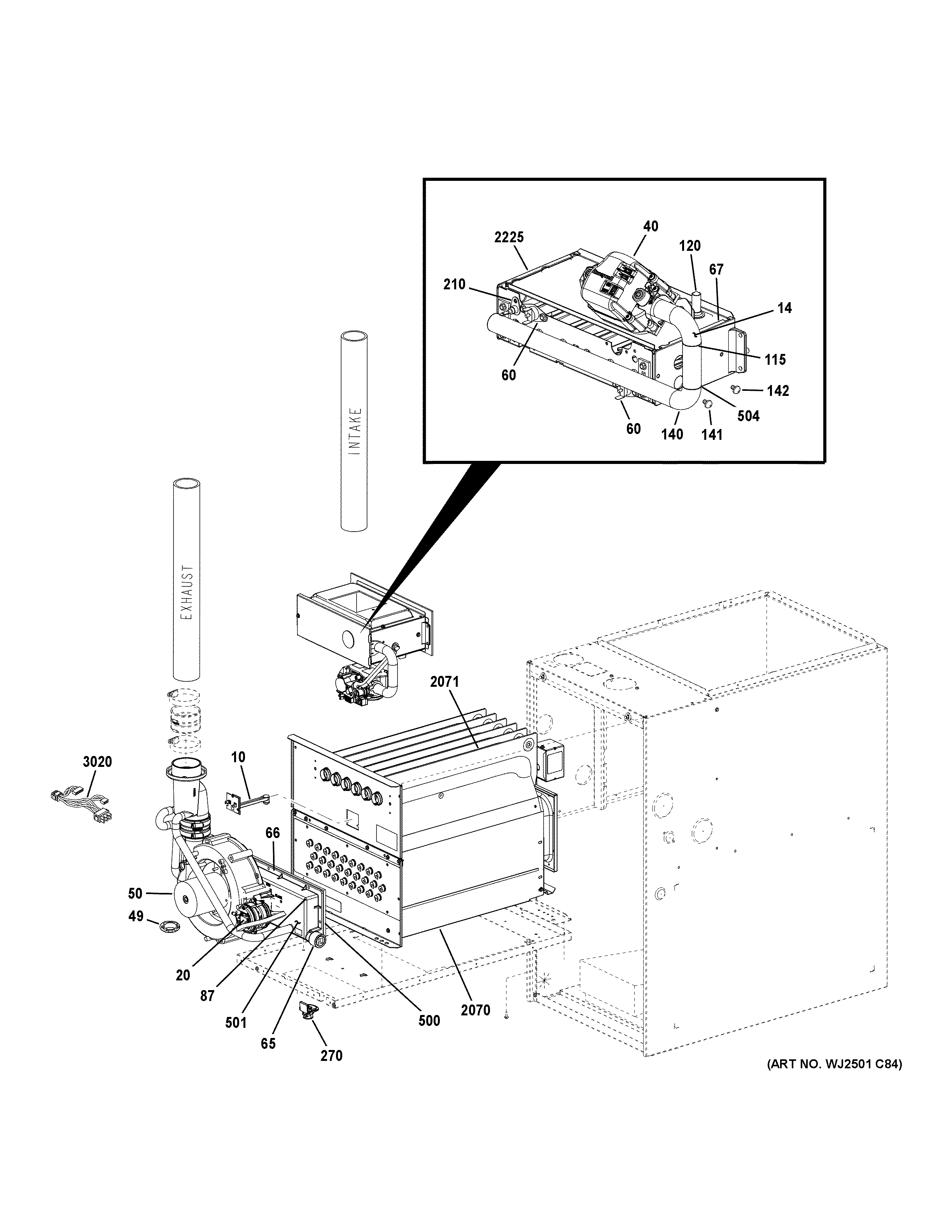

NF80X100S5C05 CABINET (2)

Products

Position	Product
10	102857-06 Control-Limit (155F)
14	ELBOW – GAS/AIR-(CTO)
20	107170-02 SWTCH-PRESS SNG STG ULN .20"WC
40	105077-01 GAS VALVE, SIT 1:1 NEG REG
49	GKT-BRNR BOX/VEST PNL, 100-(CTO)
50	615543-08 CAI COMB-MTR KIT ECM 1-STG
60	ROLLOUT LIMIT-(CTO)
65	GKT-GRAPHITE BRNR/CC, 100-(CTO)
66	GKT-GRAPHITE BRNR/PLEN, 100-(CTO)
67	105165-01, Gasket-Graphite, Igniter/Sens
87	PLENUM – GAS/AIR-(CTO)
115	O-RING,MANIFOLD/ELBOW-(CTO)
120	617498-01 IGNITOR ASSY
140	105020-12 MANIFOLD ULN NOZZLE ASSY
141	AIR ORIFICE 1.330
142	Air Orifice Sz 1.310, Difficult ign/Nois
210	15K16 GE 104987-01 Flame Sensor Unit
270	SWITCH-INTERLOCK-(CTO)
500	107227-03 GASKET COLLECTOR BOX – ULN
501	623111-03 BOX – COLLECTOR ULN CAST (100)
504	O-RING, ELBOW/PLENUM-(CTO)
2070	625024-07 HEAT EXCH 80% ULN 1S 100C
2071	ASSY – HEAT SHIELD-(CTO)
2225	BURNER – PREMIX-(CTO)
3020	HARNESS(ULN80-060/080/100)-(CTO)
