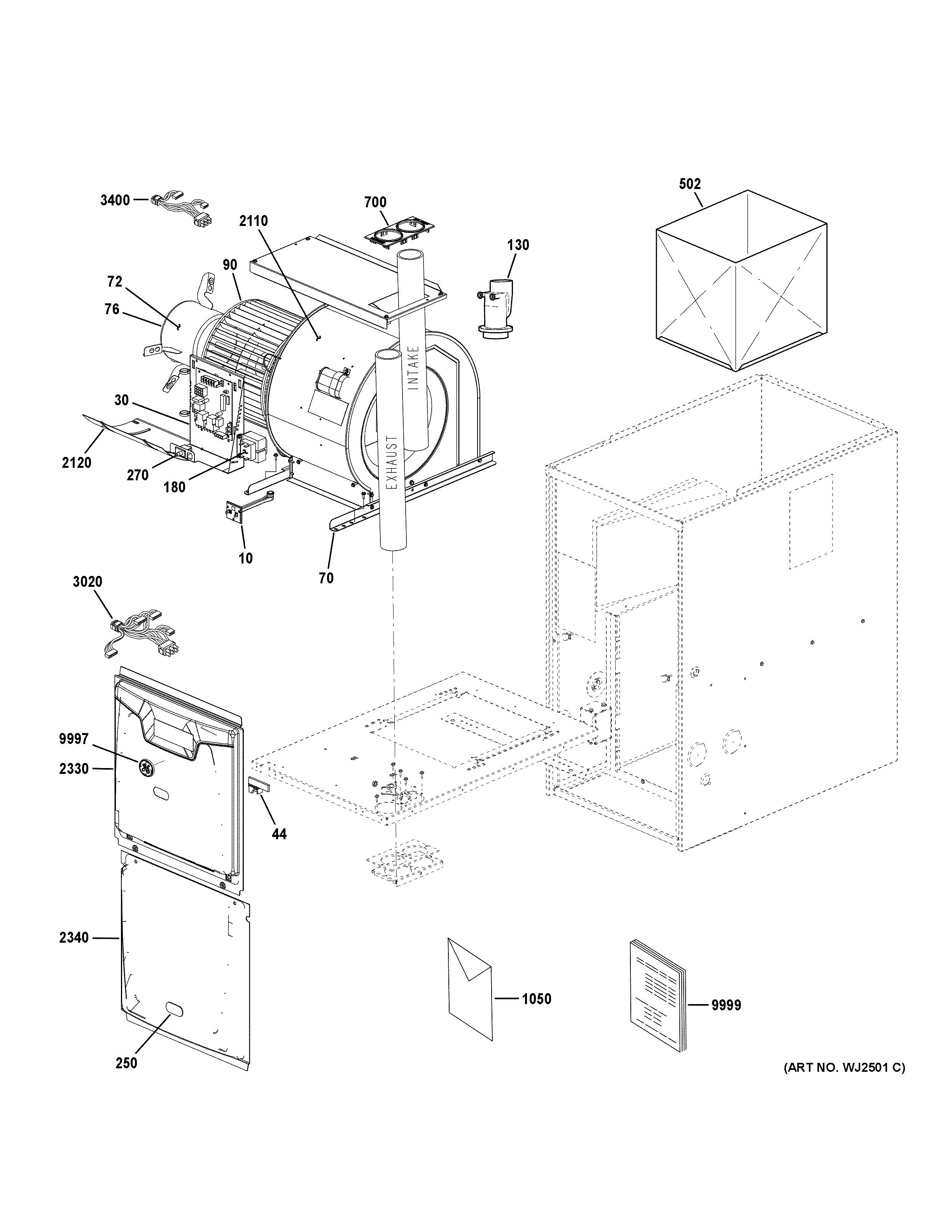

NF95X060S3B03 CABINET (1)

NF95X060S3B03 CABINET (1)

Written by

in

NF95X060S3B03 CABINET (1)

Products

PositionProduct
10105224-04 LIMIT CONTROL (STILT) 180F
30607436-05 IGNITION CONTROL KIT
44BREAKER CIRCUIT-(CTO)
70MOUNT MOTOR-(CTO)
72MOTOR REPL 1/2HP 115V CT
76MTR BLO UNPROG 1/2HP 5S 115V 1100-(CTO)
90WHEEL-BLOWER-(CTO)
130ASSY-FLUE EXHAUST TEE-(CTO)
18042J3201 TRANSFORMER
250SIGHT GLASS-(CTO)
270SWITCH-INTERLOCK-(CTO)
502PLENUM -GAS/AIR-(CTO)
700SCREEN-INTAKE-(CTO)
1050WIRING DIAGRAM LABEL-(CTO)
2110HSG-BLWR 10X8 612256-02-(CTO)
2120BLWR HSG CUTOFF PLATE-(CTO)
2330TOP DOOR B-WIDTH 90% UF BLWR-(CTO)
2340BTM DOOR B-WIDTH 90% UF VEST-(CTO)
3020HARNESS UNIT ULN ELITE-(CTO)
3400HARNESS-MOTOR X13 CONSTANT
9997SIDE GEA BADGE
9999PM SERVICE INSTRUCTIONS
