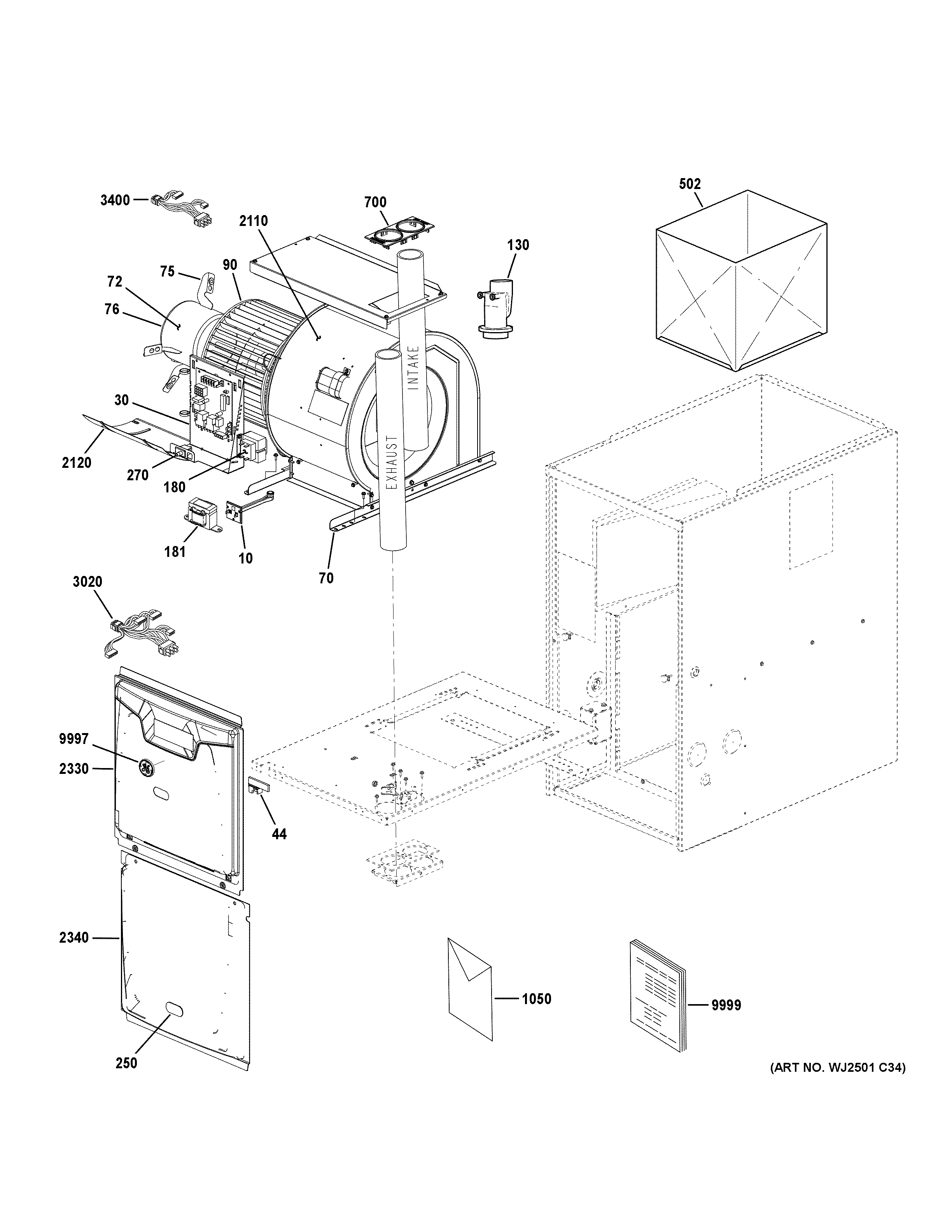

NF95X100S5C03 CABINET (1)

NF95X100S5C03 CABINET (1)

Written by

in

NF95X100S5C03 CABINET (1)

Products

PositionProduct
10105224-06 LIMIT CONTROL (STILT) 150F
30607436-05 IGNITION CONTROL KIT
44BREAKER CIRCUIT-(CTO)
70MOUNT-MOTOR-(CTO)
72MOTOR REPL 1HP 115V CT
75ARM-MOTOR MTG-(CTO)
76MOTOR BLO UNPROG CT 1H 5S 115V 1100RPM-(
90WHEEL-BLOWER-(CTO)
130ASSY-FLUE EXHAUST TEE-(CTO)
18042J3201 TRANSFORMER
181TRANSFORMER POWER CHOKE-(CTO)
250SIGHT GLASS-(CTO)
270SWITCH-INTERLOCK-(CTO)
502PLENUM – GAS/AIR-(CTO)
700SCREEN-INTAKE-(CTO)
1050WIRING DIAGRAM LABEL-(CTO)
2110HOUSING-BLOWER-(CTO)
2120PLATE-CUTOFF-(CTO)
2330TOP DOOR C-WIDTH 90% UF BLWR-(CTO)
2340BTM DOOR C-WIDTH 90% UF VEST-(CTO)
3020HARNESS UNIT ULN ELITE-(CTO)
3400MOTOR HARNESS-(CTO)
9997SIDE GEA BADGE
9999PM SERVICE INSTRUCTIONS
