NF96D045S3B57 CABINET (1)

NF96D045S3B57 CABINET (1)

Written by

in

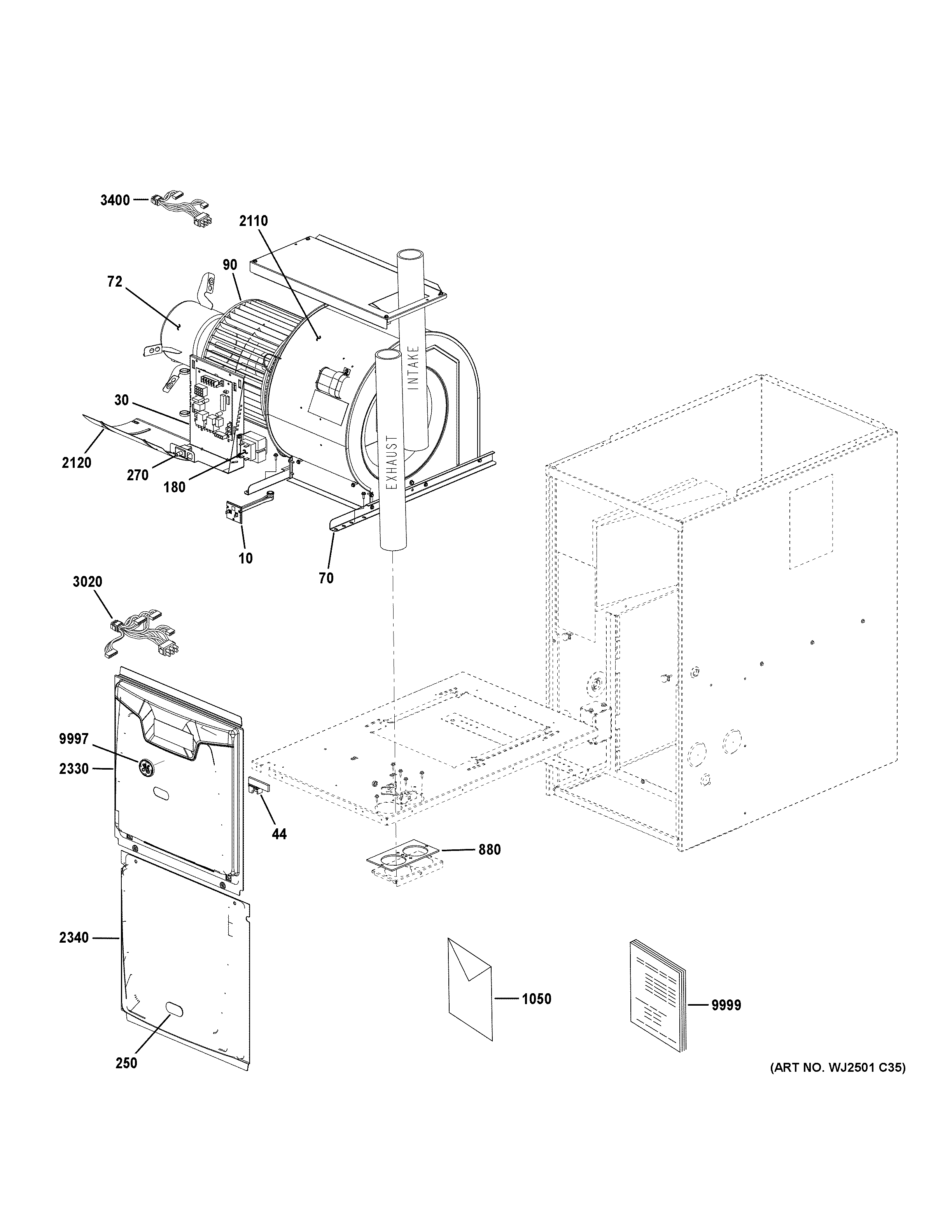

NF96D045S3B57 CABINET (1)

Products

PositionProduct
10102857-05 Control-Limit (150F) Main
30607436-05 IGNITION CONTROL KIT
44BREAKER CIRCUIT-(CTO)
70MOUNT-MOTOR-(CTO)
72MOTOR REPL 1/2HP 115V CT
90WHEEL-BLOWER-(CTO)
18042J3201 TRANSFORMER
250SIGHT GLASS-(CTO)
270SWITCH-INTERLOCK-(CTO)
880SEAL-EXHAUST/VENT (TOP CAP)-(CTO)
1050WIRE DIAGRAM STICKER – 96G1DFE-(CTO)
2110HSG-BLWR 10X8 612256-02-(CTO)
2120BLWR HSG CUTOFF PLATE-(CTO)
2330TOP DOOR B-WIDTH 80/90% DF BLWR-(CTO)
2340BTM DOOR B-WIDTH 90% DF VEST-(CTO)
3020HARNESS-WIRING-(CTO)
3400HARNESS-MOTOR X13 CONSTANT
9997SIDE GEA BADGE
9999PM SERVICE INSTRUCTIONS
