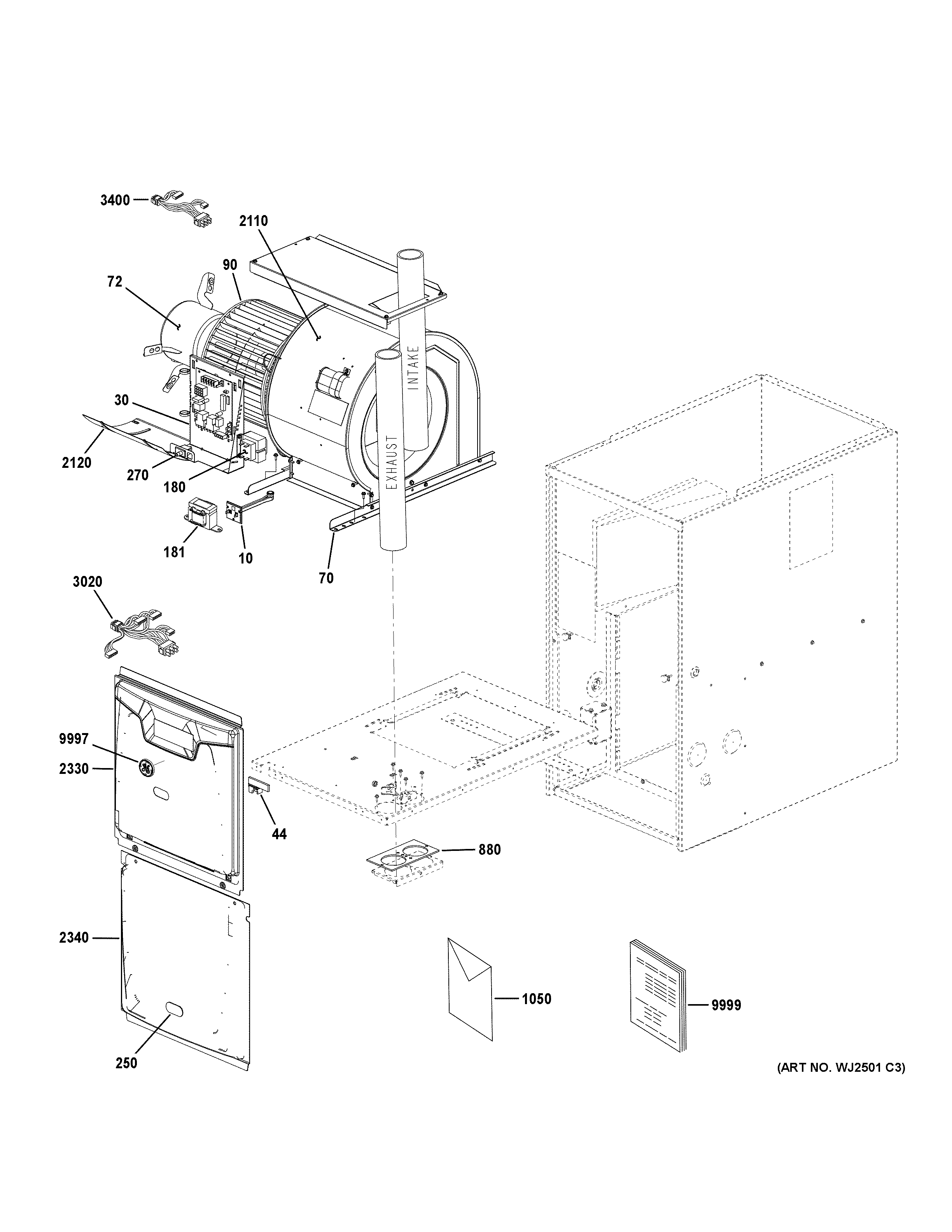

NF96D090S4C56 CABINET (1)

Products

PositionProduct
10102857-03 Control-Limit (140F)
30607436-03 Ignition Control Kit
44BREAKER CIRCUIT-(CTO)
70MOUNT MOTOR-(CTO)
72607421-06 X13 3/4HP Motor – Programmed
90LB-29333BM WHEEL-(CTO)
18042J3201 TRANSFORMER
181TRANSFORMER POWER CHOKE-(CTO)
250SIGHT GLASS-(CTO)
270SWITCH-INTERLOCK-(CTO)
880SEAL-EXHAUST/VENT (TOP CAP)-(CTO)
1050WIRE DIAGRAM STICKER – 96G1DFE-(CTO)
2110HOUSING-BLOWER -(CTO)
2120PLATE-CUTOFF-(CTO)
2330TOP DOOR C-WIDTH 80/90% DF BLWR-(CTO)
2340BTM DOOR C-WIDTH 90% DF VEST-(CTO)
3020HARNESS-WIRING-(CTO)
3400MOTOR HARNESS-(CTO)
9997SIDE GEA BADGE
9999PM SERVICE INSTRUCTIONS
