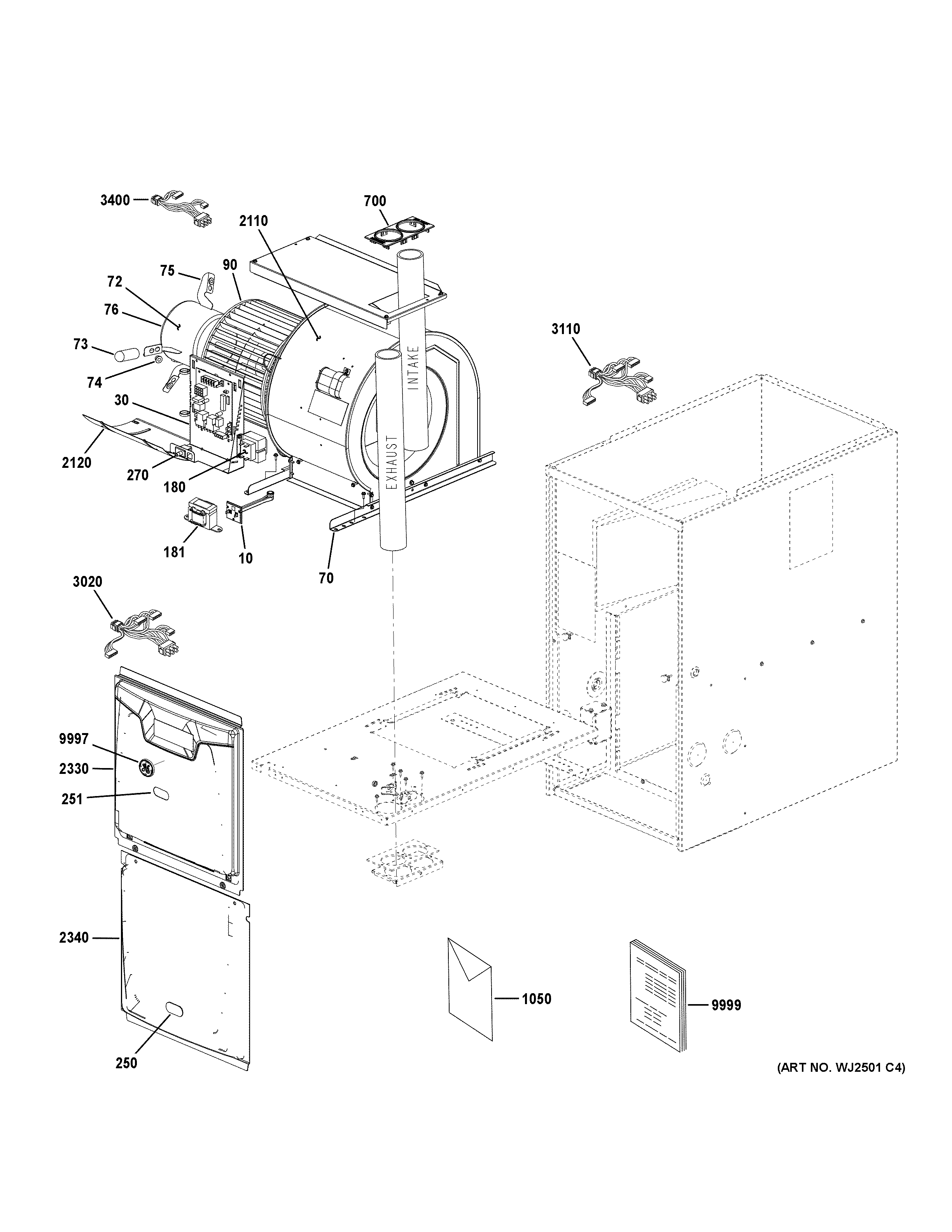

NF96D090V5C02 CABINET (1)

Products

PositionProduct
10102857-03 Control-Limit (140F)
30607308-14 KIT-IGNITION CONTROL
70MOUNT-MOTOR-(CTO)
72MOTOR-BLOWER ONLY (module sold separate)
73SLEEVE-(CTO)
74GROMMET-(CTO)
75ARM-MOTOR MTG-(CTO)
76610587-20 Module Kit
90WHEEL-BLOWER 11 X 11 X 1/2-(CTO)
18042J3201 TRANSFORMER
181TRANSFORMER POWER CHOKE-(CTO)
250SIGHT GLASS-(CTO)
251SIGHT GLASS-(CTO)
270SWITCH-INTERLOCK-(CTO)
700COLLAR-AIR INLET (DF)-(CTO)
1050WIRING DIAGRAM-(CTO)
2110HOUSING-BLOWER-(CTO)
2120PLATE-CUTOFF-(CTO)
2330TOP DOOR C-WIDTH 80/90% DF BLWR-(CTO)
2340BTM DOOR C-WIDTH 90% DF VEST-(CTO)
3020HARNESS-WIRING-(CTO)
3110HARN-WIRE-(CTO)
3400HARNESS-WIRING-(CTO)
9997SIDE GEA BADGE
9999PM SERVICE INSTRUCTIONS
