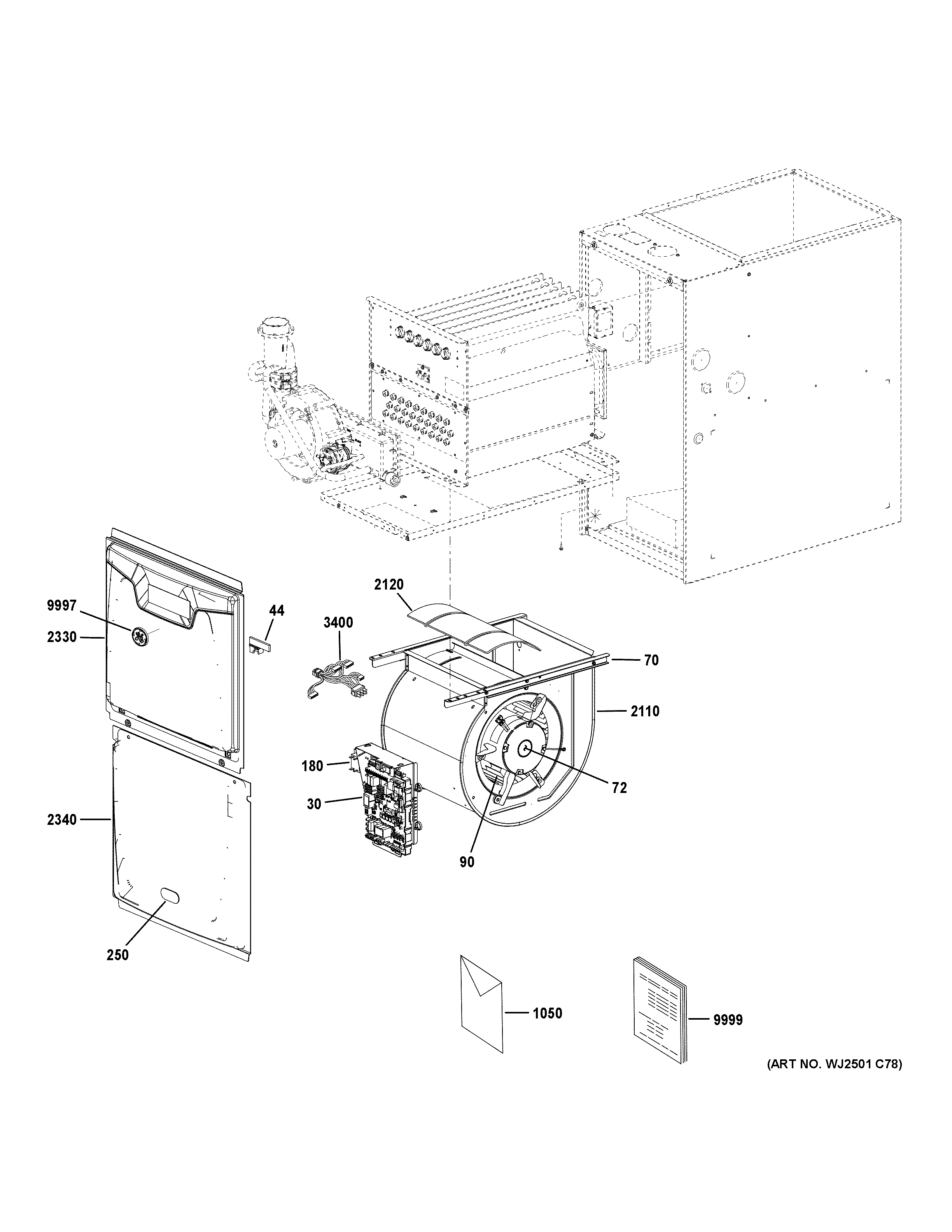

NF96U045S3B58 CABINET (1)

Products

PositionProduct
30607436-05 IGNITION CONTROL KIT
44BREAKER CIRCUIT-(CTO)
70MOUNT MOTOR-(CTO)
72MOTOR REPL 1/2HP 115V CT
90WHEEL-BLOWER-(CTO)
18042J3201 TRANSFORMER
250SIGHT GLASS-(CTO)
1050WIRE DIAGRAM STICKER – 96G1UHE-(CTO)
2110HSG-BLWR 10X8 612256-02-(CTO)
2120BLWR HSG CUTOFF PLATE-(CTO)
2330BTM DOOR B-WIDTH 90% UF VEST-(CTO)
2340TOP DOOR B-WIDTH 90% UF BLWR-(CTO)
3400HARNESS-MOTOR X13 CONSTANT
9997SIDE GEA BADGE
9999PM SERVICE INSTRUCTIONS
