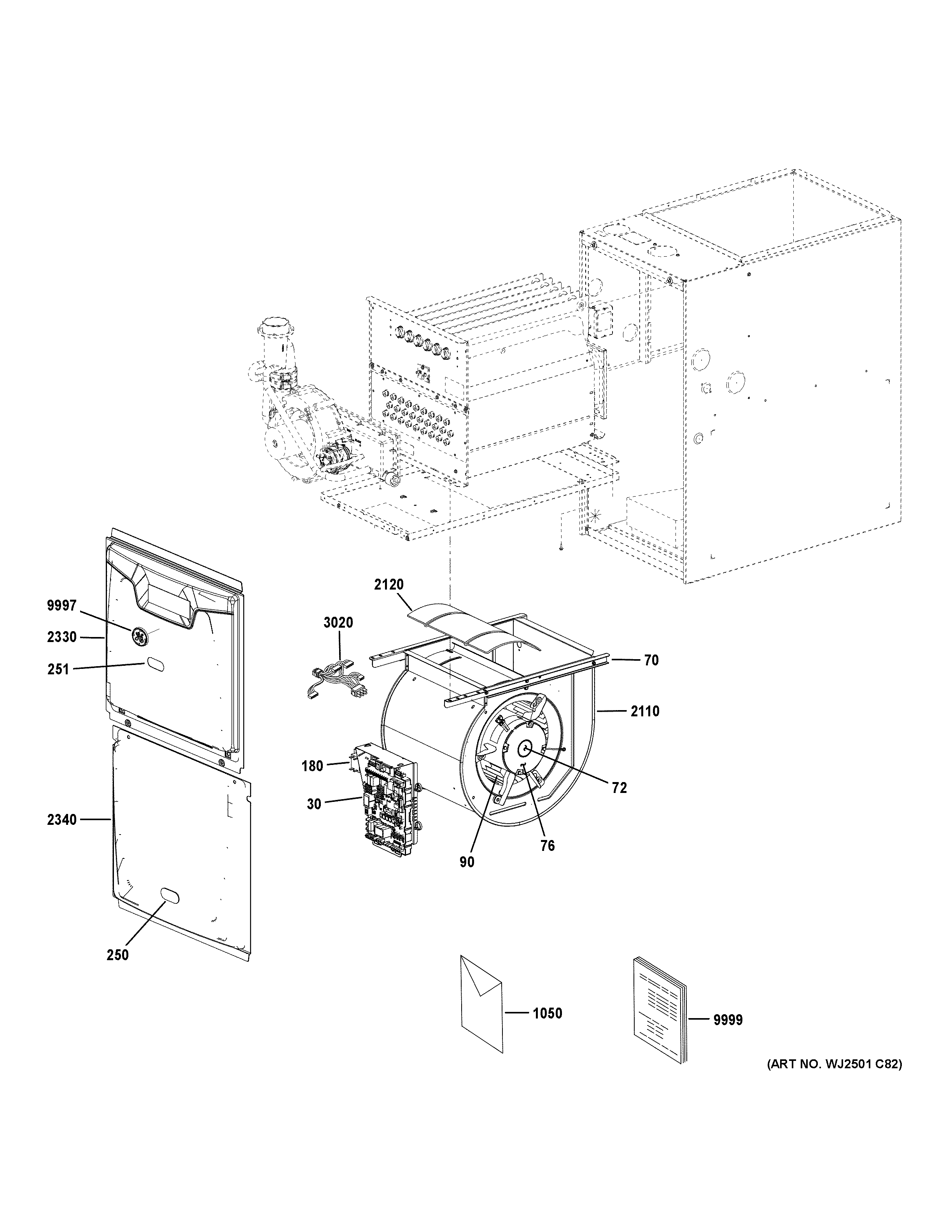

NF96U070V3B02 CABINET (1)

NF96U070V3B02 CABINET (1)

Written by

in

NF96U070V3B02 CABINET (1)

Products

PositionProduct
30607308-14 KIT-IGNITION CONTROL
70MOUNT MOTOR-(CTO)
72MTR-BLR 5.0(Mod sold separate)-(CTO)
76610587-06 Module Kit
90WHEEL-BLWR 10 X 9 X 1/2-(CTO)
18042J3201 TRANSFORMER
250SIGHT GLASS-(CTO)
251SIGHT GLASS-(CTO)
1050WIRING DIAGRAM-(CTO)
2110HOUSING-BLOWER-(CTO)
2120PLATE-CUTOFF-(CTO)
2330TOP DOOR B-WIDTH 90% UF BLWR-(CTO)
2340BTM DOOR B-WIDTH 90% UF VEST-(CTO)
3020HARNESS-WIRING-(CTO)
9997SIDE GEA BADGE
9999PM SERVICE INSTRUCTIONS
