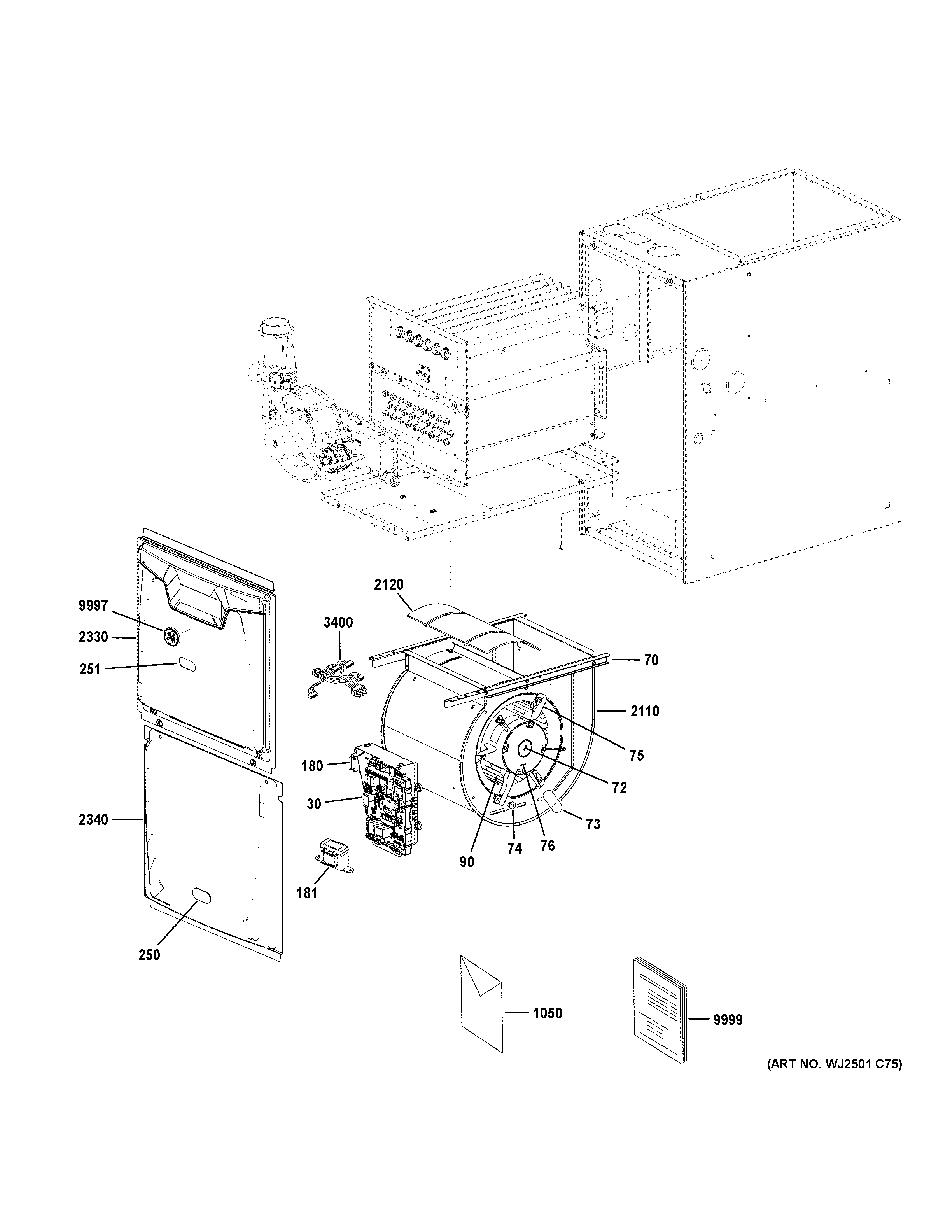

NF96U090V5C02 CABINET (1)

NF96U090V5C02 CABINET (1)

Written by

in

NF96U090V5C02 CABINET (1)

Products

PositionProduct
30607308-14 KIT-IGNITION CONTROL
70MOUNT-MOTOR-(CTO)
72MOTOR-BLOWER ONLY (module sold separate)
73SLEEVE-(CTO)
74GROMMET-(CTO)
75ARM-MOTOR MTG-(CTO)
76610587-17 Module Kit 5.0
90WHEEL-BLOWER 11 X 11 X 1/2-(CTO)
18042J3201 TRANSFORMER
181TRANSFORMER POWER CHOKE-(CTO)
250SIGHT GLASS-(CTO)
251SIGHT GLASS-(CTO)
1050WIRING DIAGRAM-(CTO)
2110HOUSING-BLOWER-(CTO)
2120PLATE-CUTOFF-(CTO)
2330TOP DOOR C-WIDTH 90% UF BLWR-(CTO)
2340BTM DOOR C-WIDTH 90% UF VEST-(CTO)
3400HARNESS-WIRING-(CTO)
9997SIDE GEA BADGE
9999PM SERVICE INSTRUCTIONS
