NF97D070V4B51 CABINET (1) – Aparts

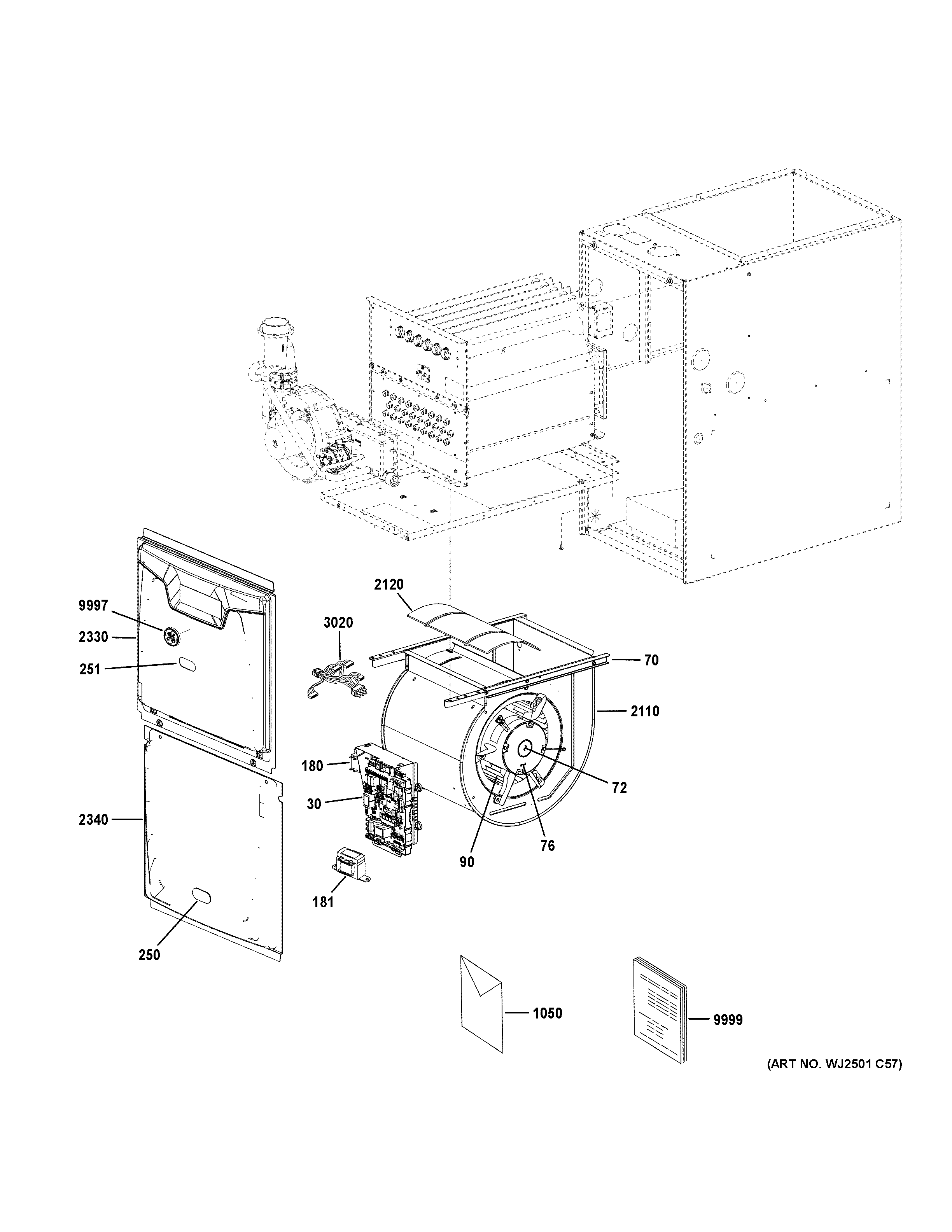

NF97D070V4B51 CABINET (1)

Products

Position	Product
30	607308-23 KIT-IGN CONTROL
70	MOUNT-MOTOR-(CTO)
72	MTR 3/4HP VAR SPD 120/240/60/1-(CTO)
76	610587-10 Module Kit
90	WHEEL-BLOWER-(CTO)
180	42J3201 TRANSFORMER
181	TRANSFORMER POWER CHOKE-(CTO)
250	SIGHT GLASS-(CTO)
251	SIGHT GLASS-(CTO)
1050	WIRING DIAGRAM-(CTO)
2110	HOUSING-BLOWER-(CTO)
2120	PLATE-CUTOFF-(CTO)
2330	TOP DOOR B-WIDTH 80/90% DF BLWR-(CTO)
2340	BTM DOOR B-WIDTH 90% DF VEST-(CTO)
3020	HARNESS-WIRING-(CTO)
9997	SIDE GEA BADGE
9999	PM SERVICE INSTRUCTIONS
