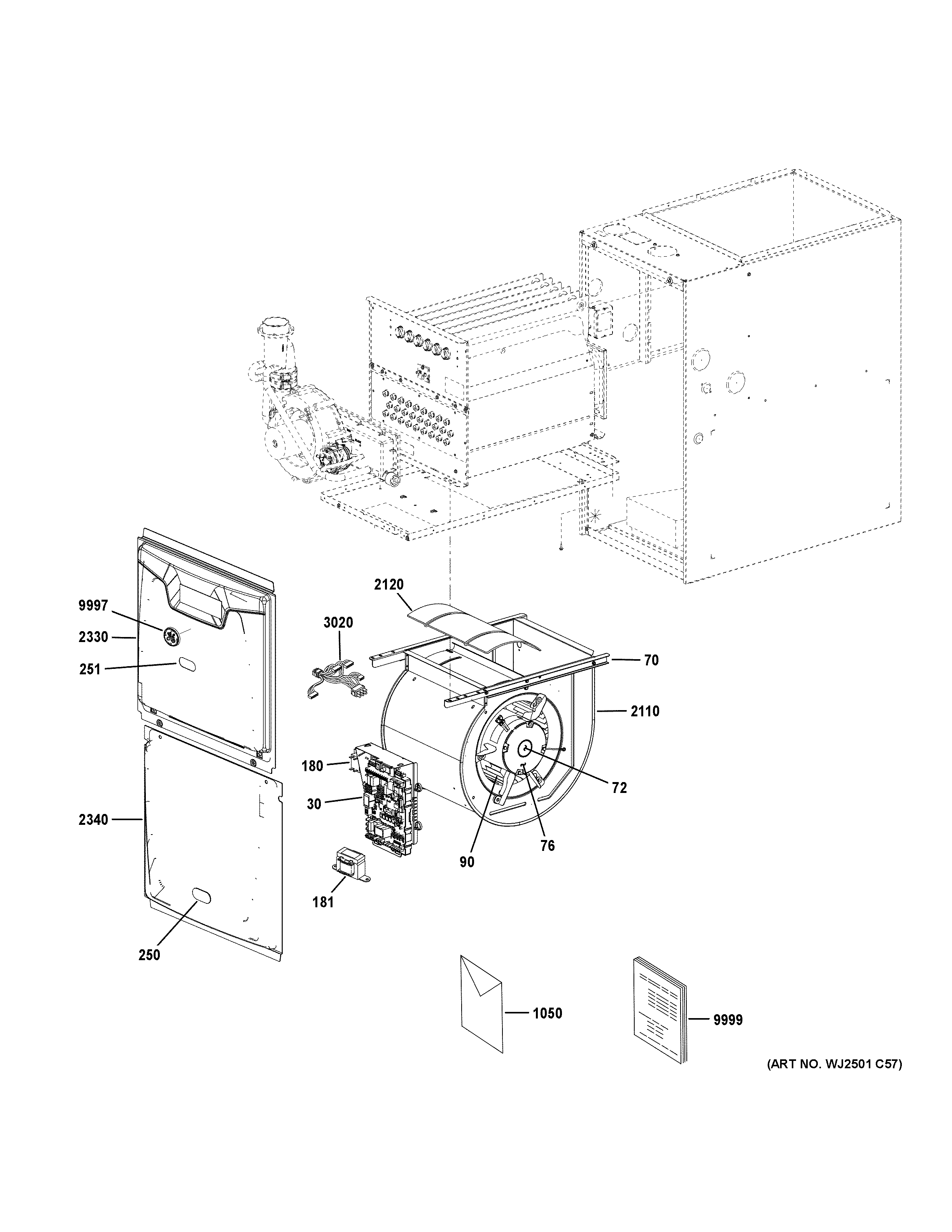

NF97D090V5C51 CABINET (1)

NF97D090V5C51 CABINET (1)

Written by

in

NF97D090V5C51 CABINET (1)

Products

PositionProduct
30607308-23 KIT-IGN CONTROL
70MOUNT-MOTOR-(CTO)
72606007-03 3.0 ECM 1 HP MOTOR ONLY
76606008-06 3.0 ECM 1 HP MODULE ONLY
90WHEEL-BLOWER 11 X 11 X 1/2-(CTO)
18042J3201 TRANSFORMER
181TRANSFORMER POWER CHOKE-(CTO)
250SIGHT GLASS-(CTO)
251SIGHT GLASS-(CTO)
1050WIRING DIAGRAM-(CTO)
2110HOUSING-BLOWER-(CTO)
2120PLATE-CUTOFF-(CTO)
2330TOP DOOR C-WIDTH 80/90% DF BLWR-(CTO)
2340BTM DOOR C-WIDTH 90% DF VEST-(CTO)
3020HARNESS-WIRING-(CTO)
9997SIDE GEA BADGE
9999PM SERVICE INSTRUCTIONS
