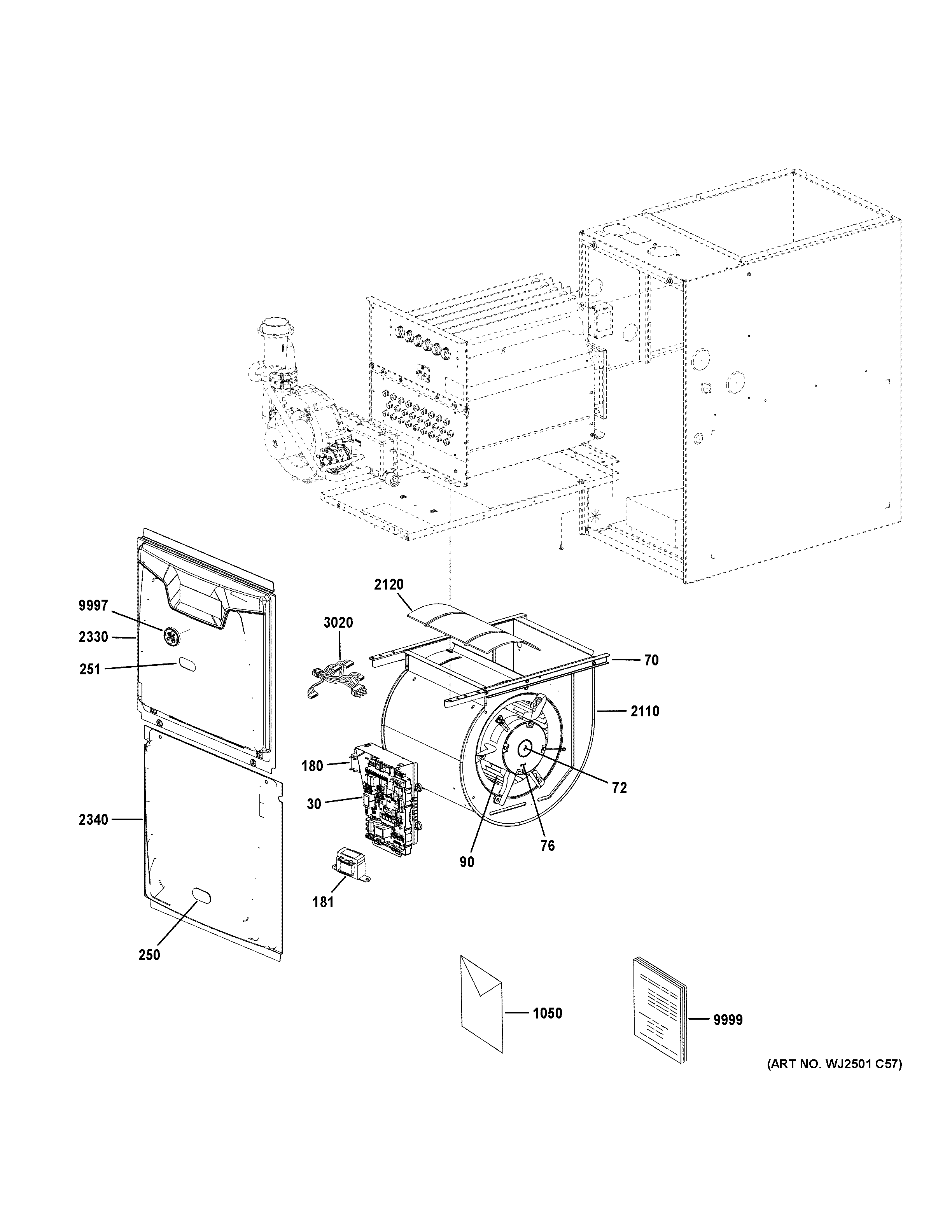

NF97U090V5C51 CABINET (1)

NF97U090V5C51 CABINET (1)

Written by

in

NF97U090V5C51 CABINET (1)

Products

PositionProduct
30607308-23 KIT-IGN CONTROL
70MOUNT-MOTOR-(CTO)
7273W01 GE 606007-01 3.0 ECM 1/2 HP Motor
76606008-04 3.0 ECM HP MODULE ONLY
90WHEEL-BLOWER 11 X 11 X 1/2-(CTO)
18042J3201 TRANSFORMER
181TRANSFORMER POWER CHOKE-(CTO)
250SIGHT GLASS-(CTO)
251SIGHT GLASS-(CTO)
1050WIRING DIAGRAM-(CTO)
2110HOUSING-BLOWER-(CTO)
2120PLATE-CUTOFF-(CTO)
2330TOP DOOR C-WIDTH 90% UF BLWR-(CTO)
2340BTM DOOR C-WIDTH 90% UF VEST-(CTO)
3020103621-02 Harness-Wiring
9997SIDE GEA BADGE
9999PM SERVICE INSTRUCTIONS
