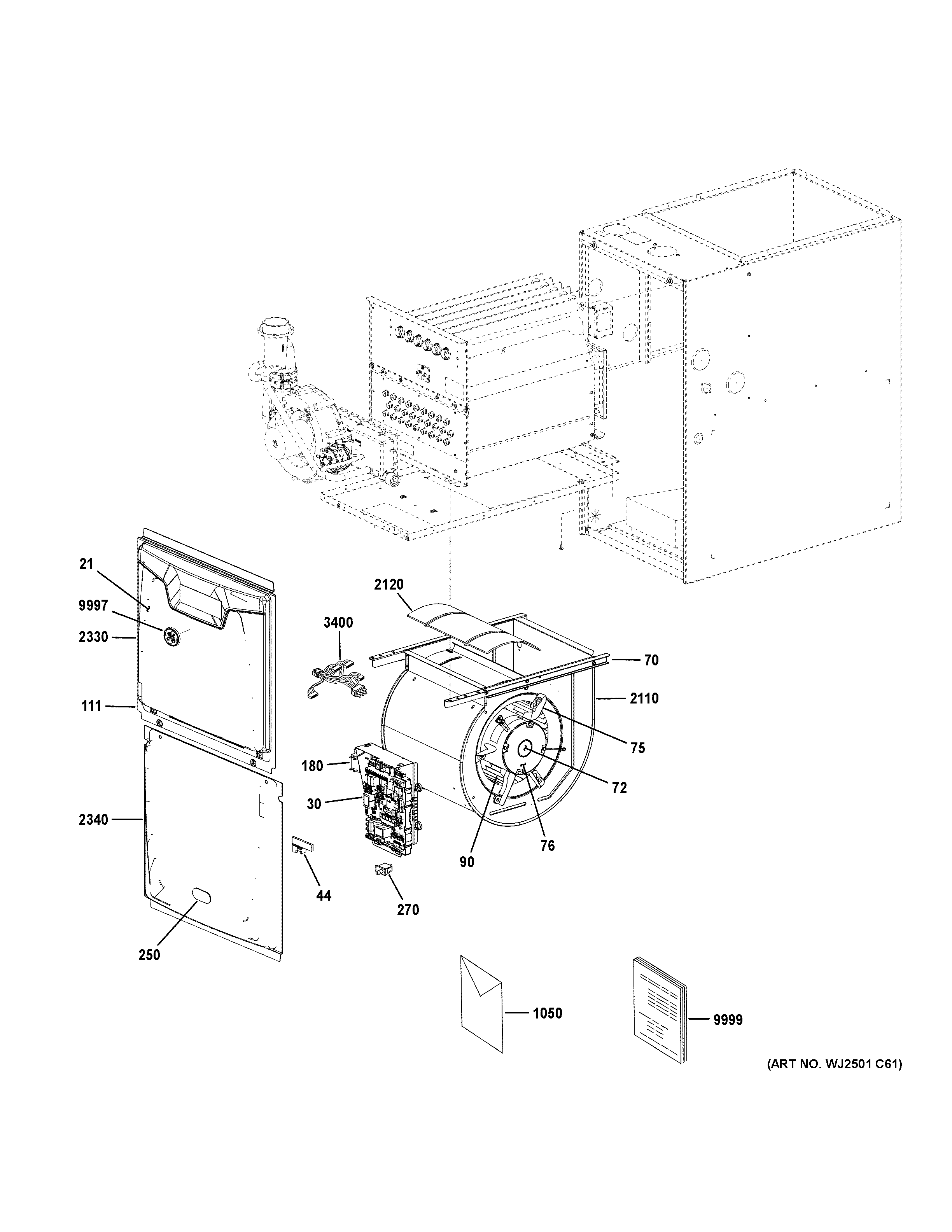

NF98U110M5C01 CABINET (1)

NF98U110M5C01 CABINET (1)

Written by

in

NF98U110M5C01 CABINET (1)

Products

PositionProduct
21ARMSTRONG TEXT SLATE GRAY (DOORS)-(CTO)
30607308-26 KIT-IGNITION CONTROL
44BREAKER CIRCUIT-(CTO)
70MOUNT-MOTOR-(CTO)
72606007-03 3.0 ECM 1 HP MOTOR ONLY
75ARM-MOTOR MTG-(CTO)
76606008-06 3.0 ECM 1 HP MODULE ONLY
90WHEEL-BLOWER 11 X 11 X 1/2-(CTO)
111PANEL FILLER DOOR TRIM-(CTO)
18042J3201 TRANSFORMER
250SIGHT GLASS-(CTO)
270SWITCH-INTERLOCK-(CTO)
1050WIRING DIAGRAM LABEL-(CTO)
2110HOUSING-BLOWER-(CTO)
2120PLATE-CUTOFF-(CTO)
2330TOP DOOR C-WIDTH 90% UF BLWR-(CTO)
2340BTM DOOR C-WIDTH 90% UF VEST-(CTO)
3400HARNESS MOTOR 3.0 ECM-(CTO)
9997SIDE GEA BADGE
9999PM SERVICE INSTRUCTIONS
