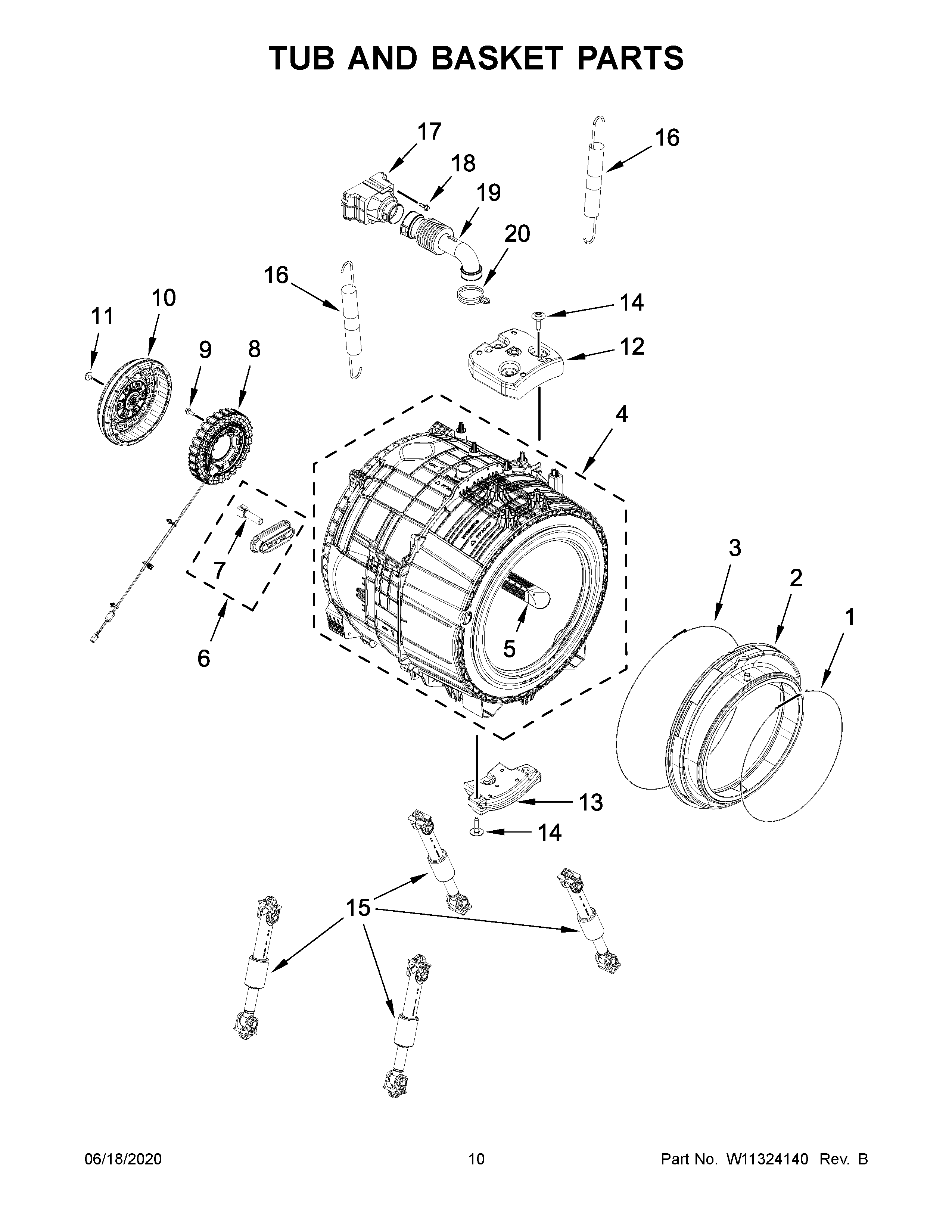

NFW5800HW0 06 – TUB AND BASKET PARTS

Products

Position	Product
1	RETAINER, FRONT PANEL TO BELLOW
2	BELLOW
3	RETAINER, BELLOW TO TUB
4	ASSEMBLY, TUB AND DRUM
5	BAFFLE, DRUM
6	ASSEMBLY, NTC
7	SENSOR, NTC
8	STATOR, MOTOR
9	SCREW, STATOR
10	ROTOR, MOTOR
11	SCREW, ROTOR
12	COUNTERWEIGHT, TOP
13	COUNTERWEIGHT, BOTTOM
14	SCREW, COUNTERWEIGHT
15	DAMPER ASSEMBLY
16	SPRING, SUSPENSION
17	ENCLOSURE, VENT
18	MAY 8540513
19	HOSE, VENTILATION
20	MAY 371507
