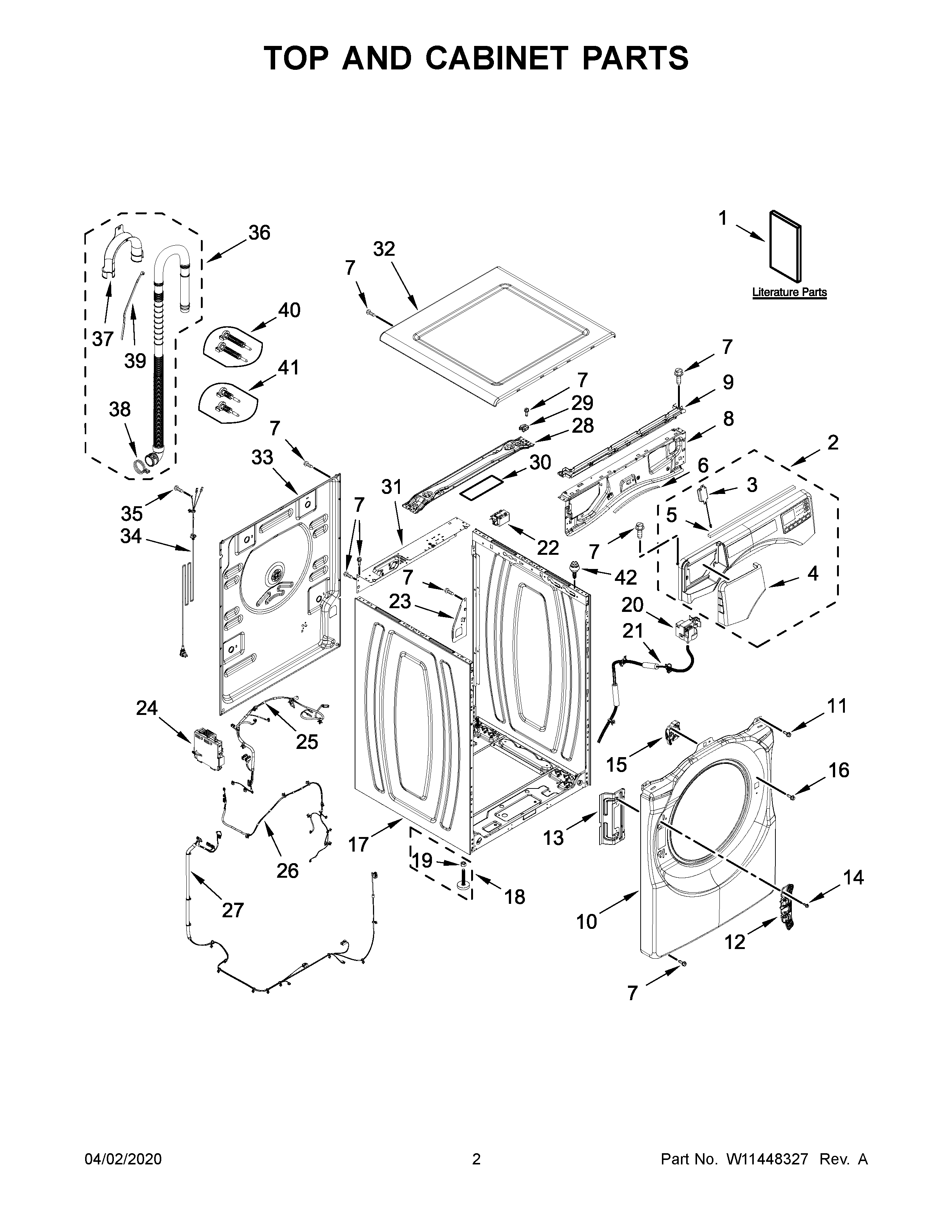

NFW5800HW1 02 – TOP AND CABINET PARTS

Products

Position	Product
1C	ENERGY GUIDE
1D	WIRING DIAGRAM
1B	QUICK START GUIDE
1	USE AND CARE GUIDE
1A	INSTALLATION INSTRUCTIONS
2	ASSEMBLY, CONSOLE (WHITE)
3	ASSEMBLY, SPEAKER
4	HANDLE, DRAWER (WHITE)
5	MAY W11231800
6	EDGE GUARD
7	MAY W10567155
8	BRACKET, CONSOLE
9	CHANNEL, WATER
10	PANEL, FRONT (WHITE)
11	SCREW
12	MAY W11114011
13	MAY W11084215
14	MAY W10288126
15	LOCK, DOOR
16	MAY 8540282
17	CABINET (WHITE)
18	LEVELING LEG ASSEMBLY
19	Nut, 3/8-16
20	PRESSURE SWITCH
21	HOSE, PRESSURE SWITCH
22	RFI FILTER
23	BRACKET, DRAIN HOSE
24	APPLIANCE CONTROL UNIT (ACU)
25	HARNESS, UPPER
26	HARNESS, NTC
27	HARNESS, MAIN LOWER
28	BRACE, TOP
29	RETAINER, SPRING
30	FOAM PAD
31	BRACKET, REAR
32	TOP (WHITE)
33	PANEL, REAR
34	CORD, POWER
35	SCREW
36	HOSE, DRAIN (EXTERNAL)
37	MAY W10280024
38	MAY 356138
39	MAY W10267532
40	BOLT, TRANSPORT (LONG)
41	BOLT, TRANSPORT (SHORT)
42	SCREW AND BUSHING ASSEMBLY
