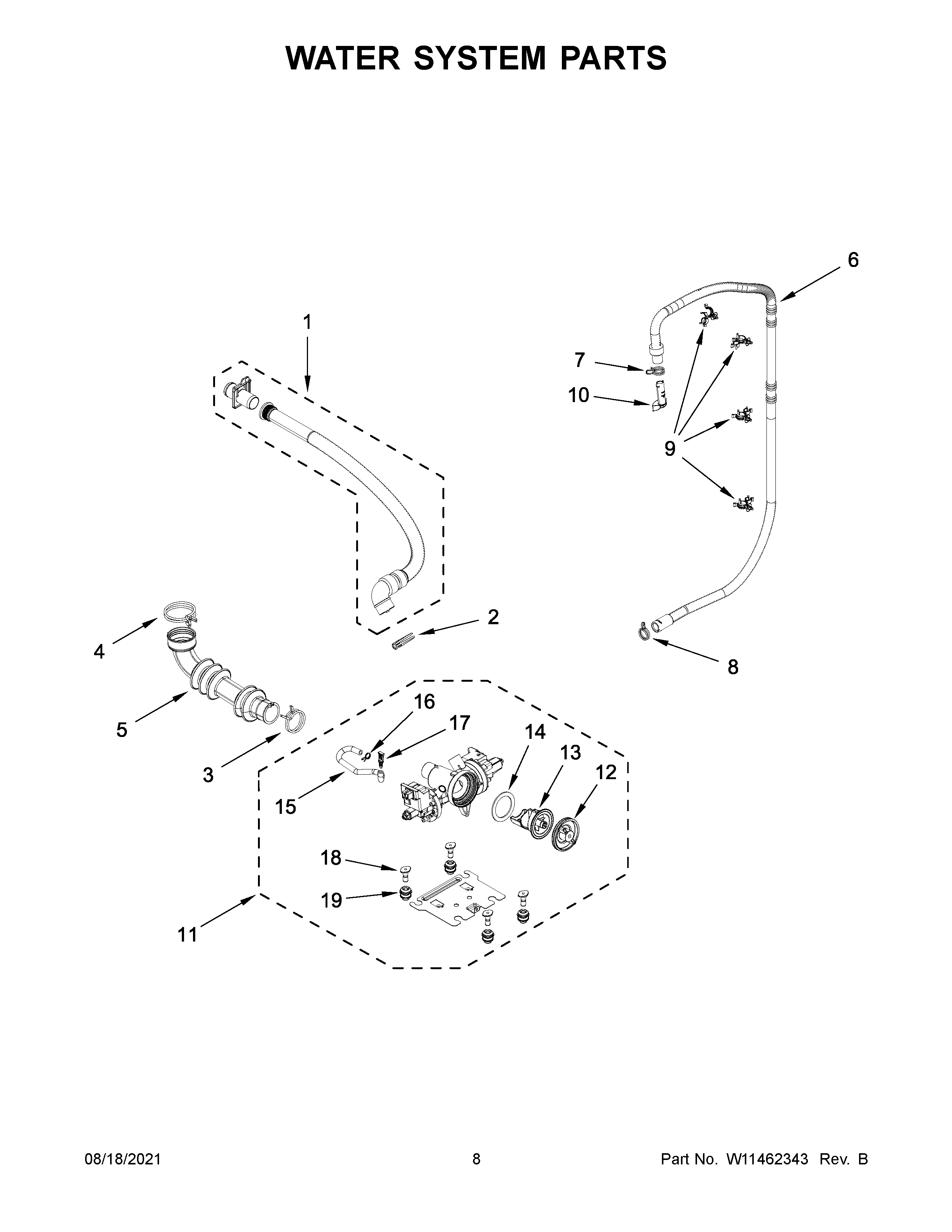

NFW5800HW2 05 – WATER SYSTEM PARTS

Products

Position	Product
1	ASSEMBLY, DRAIN HOSE
2	MAY 356138
3	MAY 370448
4	CLAMP, VENT HOSE
5	HOSE, TUB TO PUMP
6	HOSE, PUMP TO BELLOW
7	CLAMP, HOSE
8	CLAMP, HOSE
9	CLIP, HOSE
10	NOZZLE, WATER
11	ASSEMBLY, PUMP
12	CAP, FILTER
13	FILTER, PUMP
14	SEAL, FILTER CAP
15	HOSE, DRAIN (PUMP)
16	CLAMP, HOSE
17	PLUG, DRAIN (PUMP)
18	GROMMET, PIN (PUMP)
19	GROMMET (PUMP)
