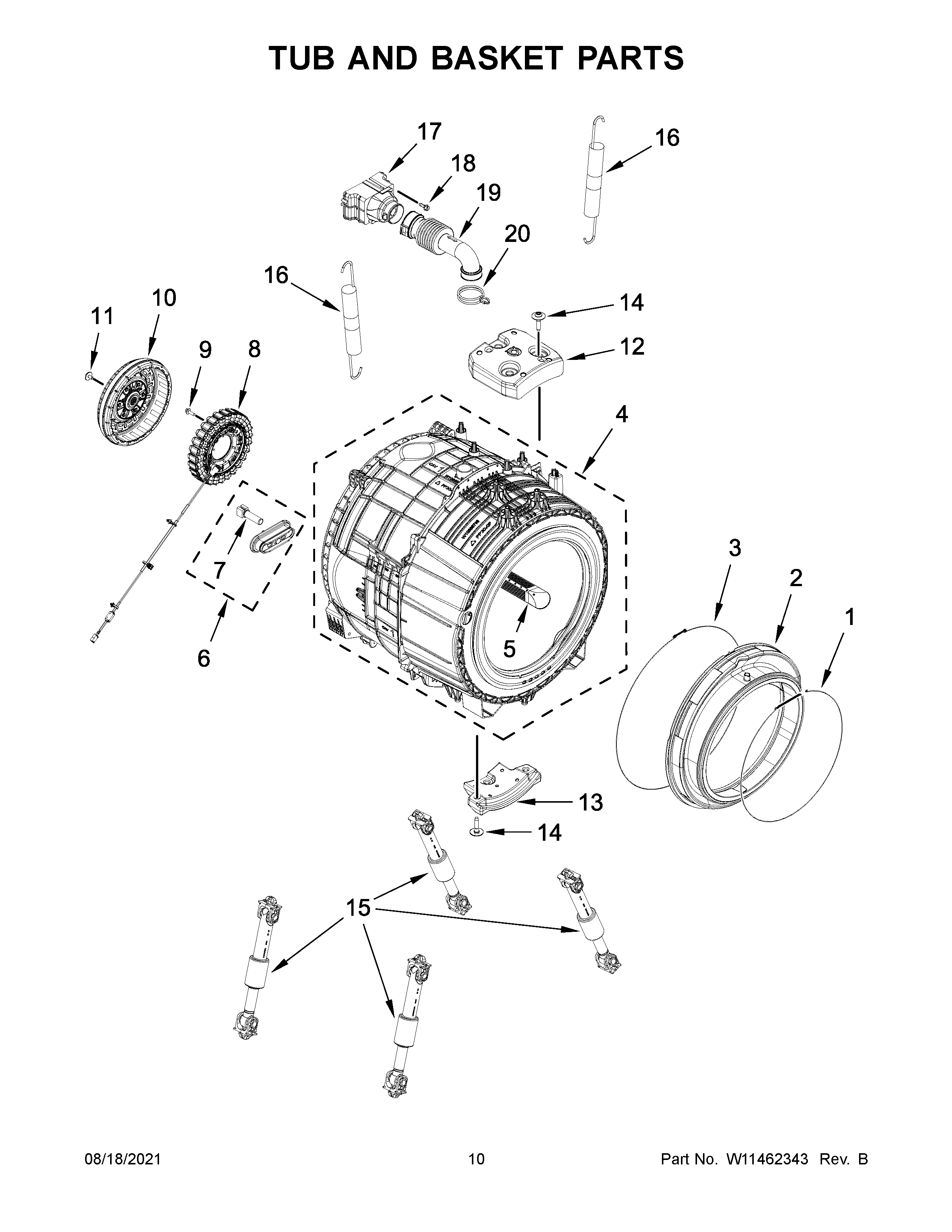

NFW5800HW2 06 – TUB AND BASKET PARTS

Products

PositionProduct
1RETAINER, FRONT PANEL TO BELLOW
2BELLOW
3RETAINER, BELLOW TO TUB
4ASSEMBLY, TUB AND DRUM
5BAFFLE, DRUM
6ASSEMBLY, NTC
7SENSOR, NTC
8STATOR, MOTOR
9SCREW, STATOR
10ROTOR, MOTOR
11SCREW, ROTOR
12COUNTERWEIGHT, TOP
13COUNTERWEIGHT, BOTTOM
14SCREW, COUNTERWEIGHT
15DAMPER ASSEMBLY
16SPRING, SUSPENSION
17ENCLOSURE, VENT
18MAY 8540513
19HOSE, VENTILATION
20MAY 371507
