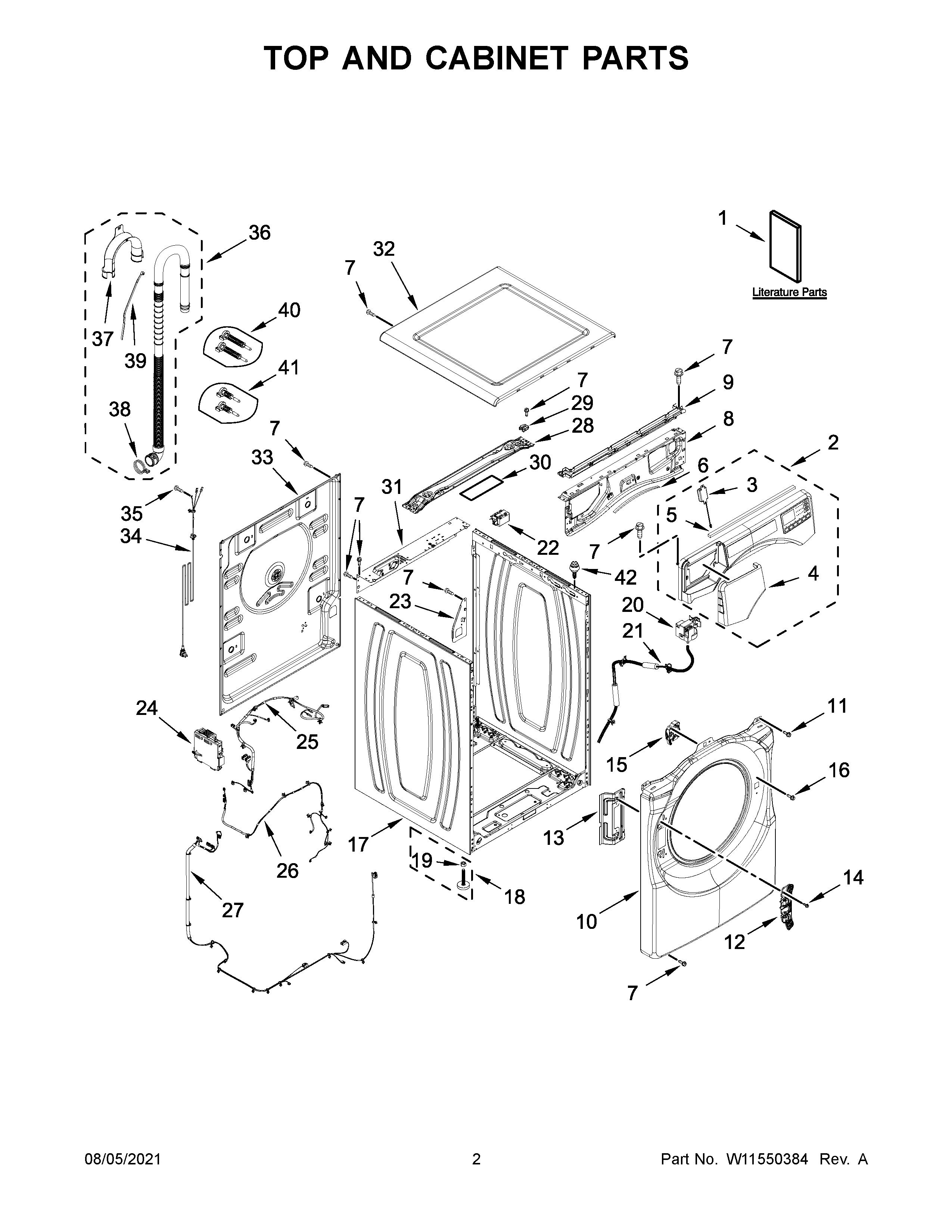

NFW5800HW3 02 – TOP AND CABINET PARTS

Products

Position	Product
1A	INSTALLATION INSTRUCTIONS
1B	QUICK START GUIDE
1D	WIRING DIAGRAM
1	USE AND CARE GUIDE
1C	ENERGY GUIDE
2	W11325578-includeCORE Whirlpool W11325578 Washer Electronic Control Board + Core
3	W11123146 Whirlpool Speaker
4	W11167039 Whirlpool Handle
5	SEAL
6	W11316770 Whirlpool Protector
7	W11568617 Whirlpool Screw
8	W11314678 Whirlpool Bracket Assembly
9	W11458348 Whirlpool Channel
10	W11325579 Whirlpool Panel
11	W11573574 Whirlpool Screw
12	W11318815 Whirlpool Hinge
13	W11310030 Whirlpool Bracket Assembly
14	SCREW
15	W11565030 Whirlpool Latch
16	WP8540282 Whirlpool Screw
17	W11352995 Whirlpool Cabinet Assembly
18	W10888529 Whirlpool Washer Leveling Leg
19	WP3359452 Whirlpool Nut
20	SWITCH-WL
21	W11456953 Whirlpool Hose
22	W11316771 Whirlpool Filter
23	W11316769 Whirlpool Bracket
24	W11550652-includeCORE Whirlpool W11550652 Washing Machine Electronic Control Board + Core
25	W11316252 Whirlpool Wire Harness
26	W11449075 Whirlpool Wire Harness
27	W11509205 Whirlpool Wire Harness
28	W10467484 Whirlpool Bracket
29	W10245452 Whirlpool Retainer
30	FOAM PAD
31	W11353016 Whirlpool Bracket
32	WPW10208373 Whirlpool Top
33	W11491750 Whirlpool Panel
34	W11316254 Whirlpool Power Cord
35	W10850756 Whirlpool Screw
36	W11551765 Whirlpool Hose
37	WPW10280024 Whirlpool Retainer
38	WP356138 Whirlpool Hose Clamp
39	WPW10339879 Whirlpool Wire Tie
40	W11316631 Whirlpool Bolt Fastener
41	W11316629 Whirlpool Bolt
42	W10208380 Whirlpool Screw
