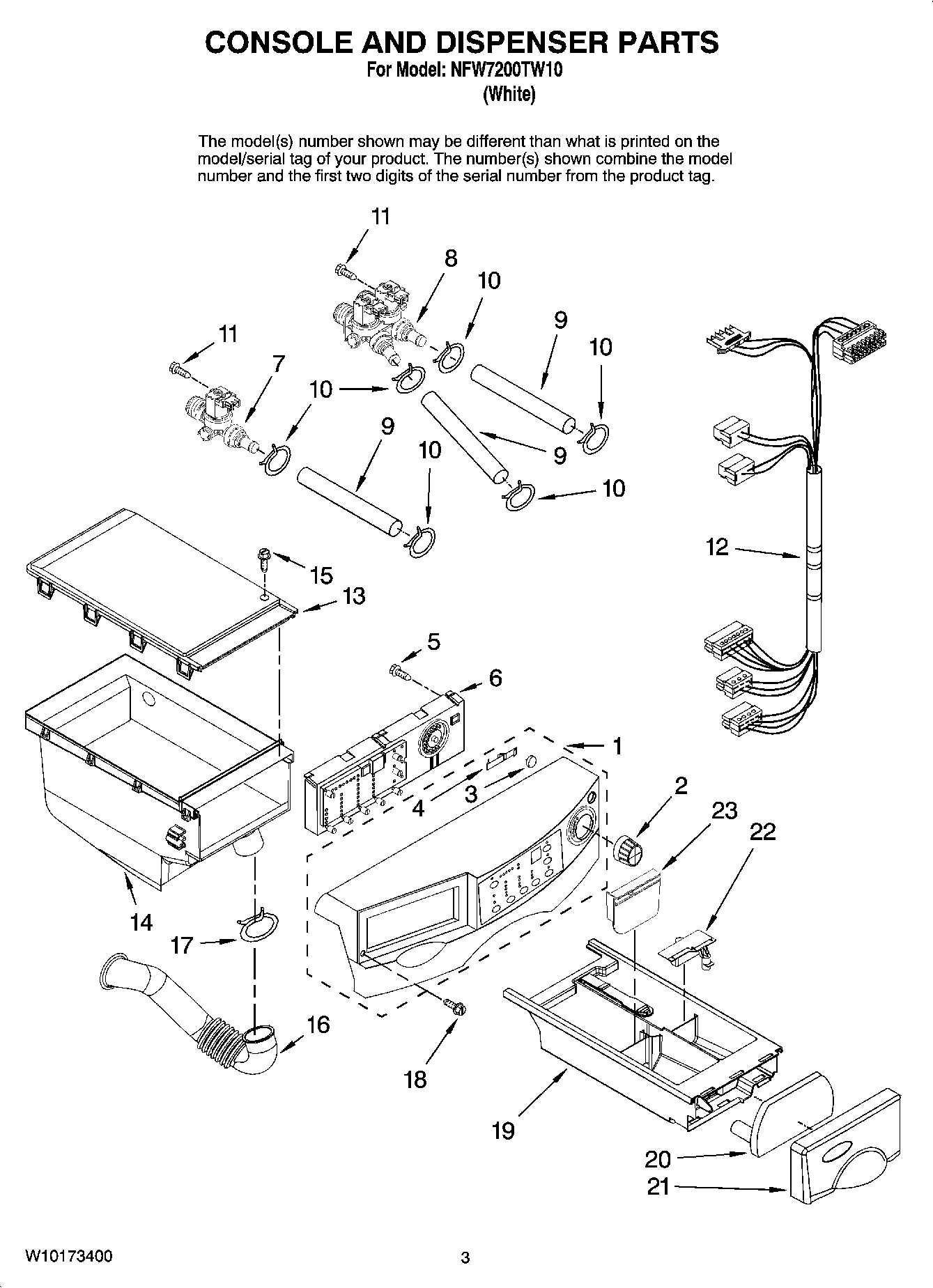

NFW7200TW10 02 – CONSOLE AND DISPENSER PARTS

Products

PositionProduct
NIHARNESS, WIRE DNO
NIWP34001484 Whirlpool Electronic Control Board
1MAY W10175951
2MAY W10175949
3MAY W10175952
4LEVER-POWER
5SCREW-TAPPING
6ASSY PCB-6700 (SERIES 14)
7WP34001131 Whirlpool Water Inlet Valve
8WP34001151 Whirlpool Water Valve
9HOSE-DRAWER (.25)
10CLAMP-HOSE
11SCREW-TAPTITE
12ASSY-WIRE HARNESS
13WP34001284 Whirlpool Housing
14WP34001245 Whirlpool Housing Drawer
15WP98008545 Whirlpool Screw
17BAND-RING
18Screw-Tapping (4)
19ASSY-S. BODY DRAWER
20HANDLE-DRAWER
21MAY W10175953
22CAP-RINSE
23GUIDE-LIQUID
