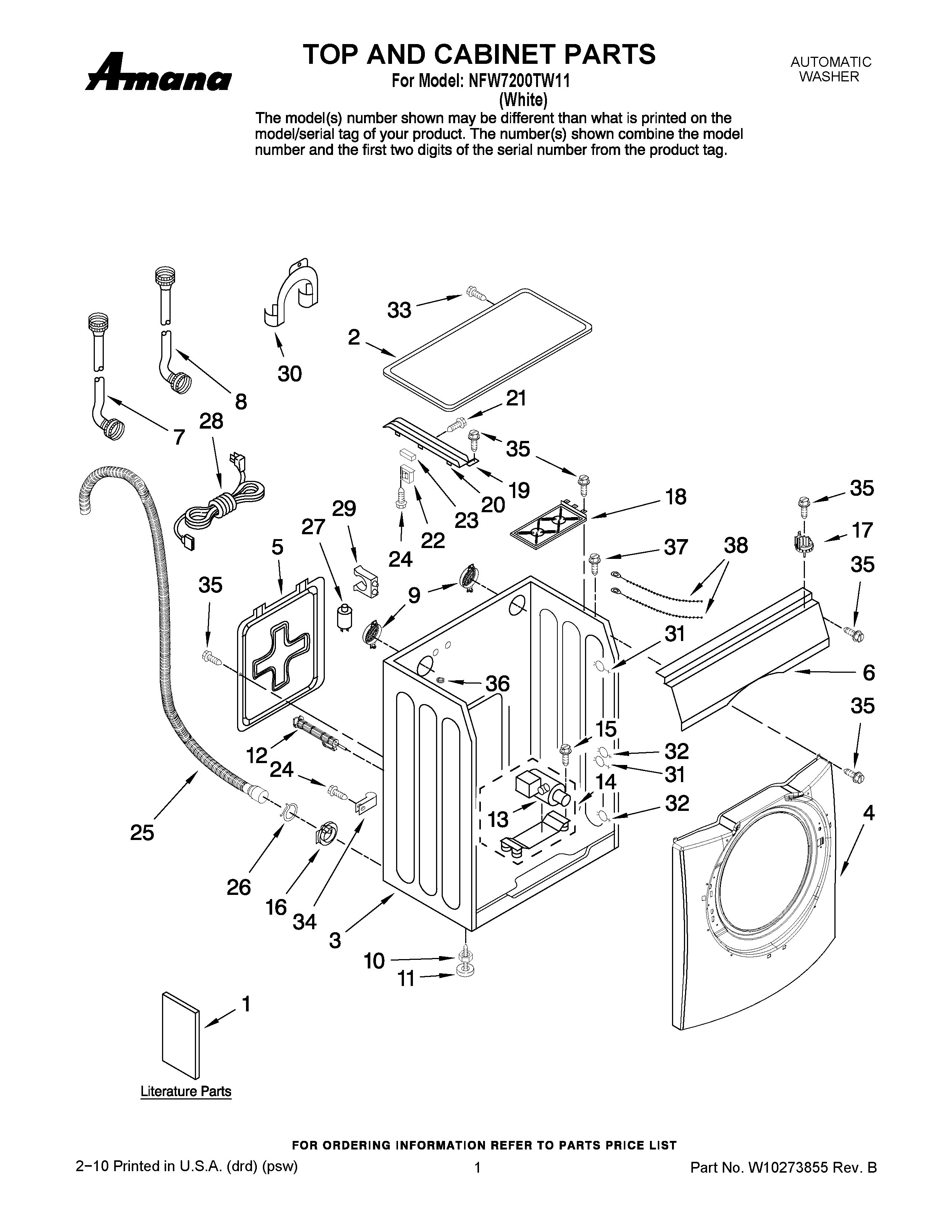

NFW7200TW11 01 – TOP AND CABINET PARTS

Products

Position	Product
1	MAY W10161022
1	MAY W10161756
1	MAY W10174717
1	MAY W10162408
2	ASSY-COVER TOP
3	ASSY-FRAME – CABINET
4	FRAME – FRONT
5	ASSY-COVER BACK
6	FRAME-PLATE (U) – CABINET
7	MAY 34001089
8	MAY 34001094
9	ASSY-CAP O.F.
10	NUT-HEXAGON FLANGE
11	LEG-RUBBER
12	ASSY-FIXER TUB
13	WP34001340 Whirlpool Drain Pump
14	Pump, Drain- Complete Assembly
15	BOLT-HEX
16	GUIDE-HOSE
17	ASSY-SENSOR PRESSURE
18	ASSY-ABSORBER
19	GUIDE-WIRE
20	HOLDER-WIRE SADDLE
21	WP98008545 Whirlpool Screw
22	TRANS-REACTORV
23	BRACKET-HEATER
24	SCREW-TAPPING
25	ASSY-HOSE DRAIN
26	WP596669 Whirlpool Hose Clamp
27	FILTER-EMI
28	POWER CORD
29	CLAMPER HOSE
30	HOSE-HANGER
31	HOLDER-WIRE (RETAINER/CLIP)
32	CABLE CLAMP
33	SCREW-HEX
34	CLAMPER HOSE
35	SCREW-TAPPING
36	GUIDE-SPRING – WASHER ONLY
37	SCREW-SPECIAL
38	WIRE TIE – VINYL
