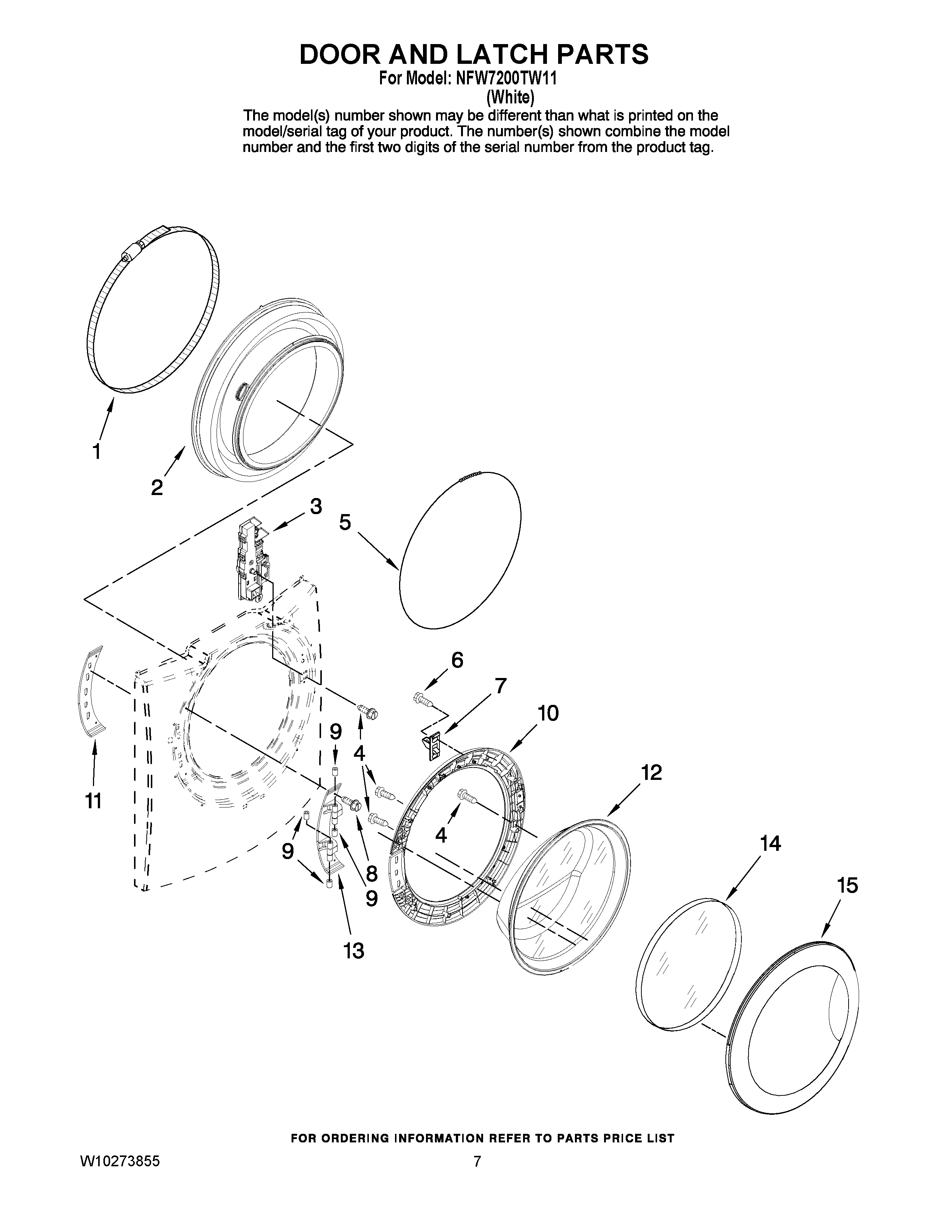

NFW7200TW11 04 – DOOR AND LATCH PARTS

NFW7200TW11 04 – DOOR AND LATCH PARTS

Written by

in

NFW7200TW11 04 – DOOR AND LATCH PARTS

Products

PositionProduct
1ASSY-CLAMP DIAPHGRAM
2WP34001432 Whirlpool Bellow
3WP8182634 Whirlpool Latch Assembly
4SCREW-TAPPING
5ASSY-WIRE DIAPHRAGM
6SCREW-TAPPING
7LEVER-DOOR
8SCREW-MACHINE
9GUIDE-HINGE
10HOLDER – GLASS
11BRACKET – HINGE
12DOOR-GLASS
13MAY W10175955
14DOOR – SAFETY
15COVER – DOOR
