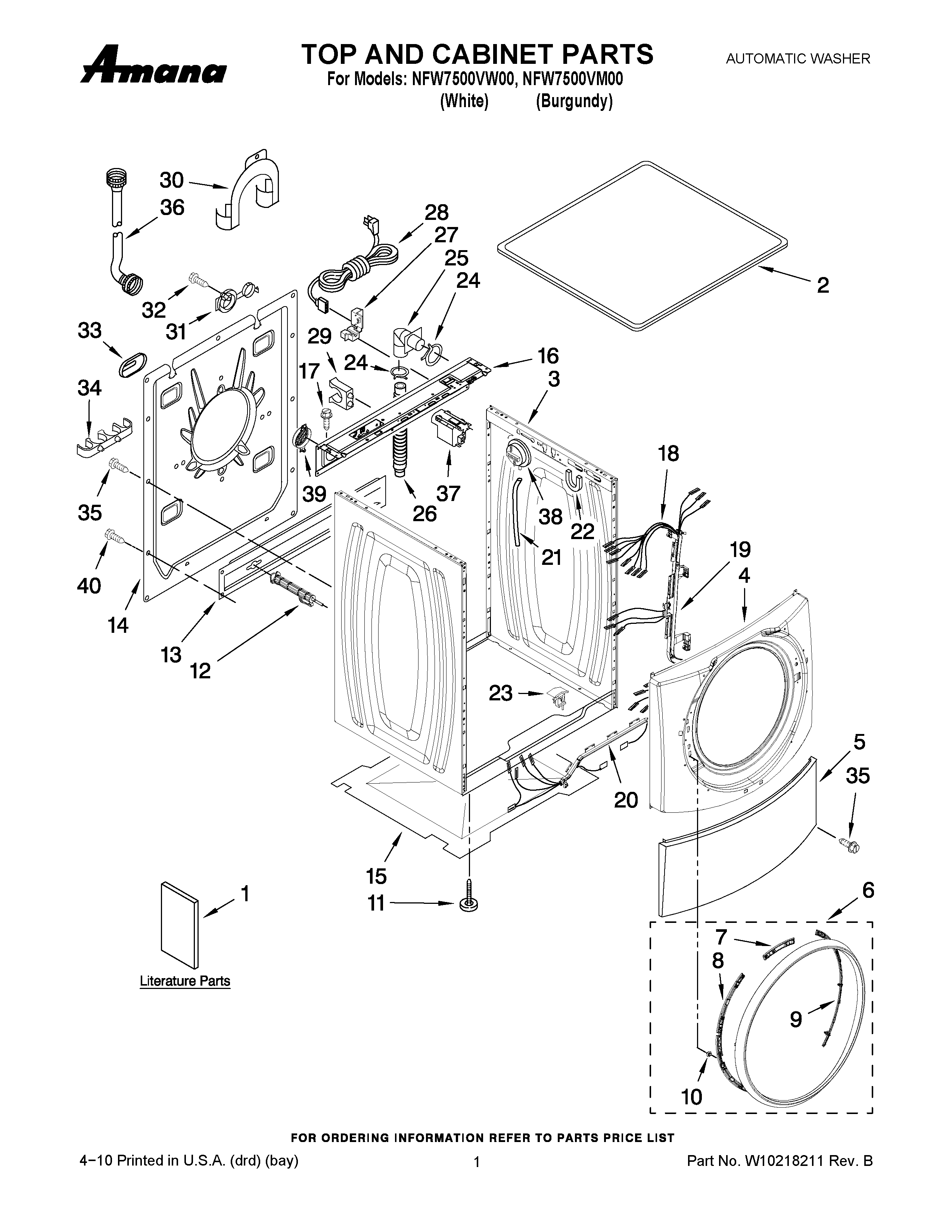

NFW7500VM00 01 – TOP AND CABINET PARTS
Written by
in
NFW7500VM00 01 – TOP AND CABINET PARTS
Products
Position
Product
1
MAY W10221686
1
MAY W10211354
1
MAY W10168566
1
MAY W10219911
1
MAY 8183017
2
MAY 8183150
2
MAY 8181799
3
MAY 8183211
3
Cabinet (White)
4
Panel, Front (White)
4
MAY 8183152
5
MAY 8181643
5
MAY 8183149
6
MAY W10163810
7
MAY 8183207
8
MAY 8183208
9
MAY 8183209
10
MAY 8183210
11
MAY 8181636
12
MAY 8182797
12
MAY 8182798
13
MAY 8182661
14
MAY 8182698
15
MAY 8181635
16
MAY W10138248
17
MAY 8181756
18
Harness, Wiring (Lower Main) (Includes Items 19 & 20)
19
MAY W10121609
20
MAY W10121610
21
MAY 8181739
22
MAY 8181763
23
MAY 8183086
24
MAY 8181752
25
Connector, Drain Hose
26
MAY 8181737
27
MAY 8181690
28
MAY 8183009
29
MAY 8182702
30
MAY 8181768
31
SLEEVE, CORD SUPPORT
32
MAY 8182201
33
MAY 8182700
34
MAY 8182701
35
MAY 8181828
36
MAY 8182795
36
MAY 8182792
37
MAY 8183019
38
MAY 8181695
39
MAY 8183030
40
MAY W10157885
←
