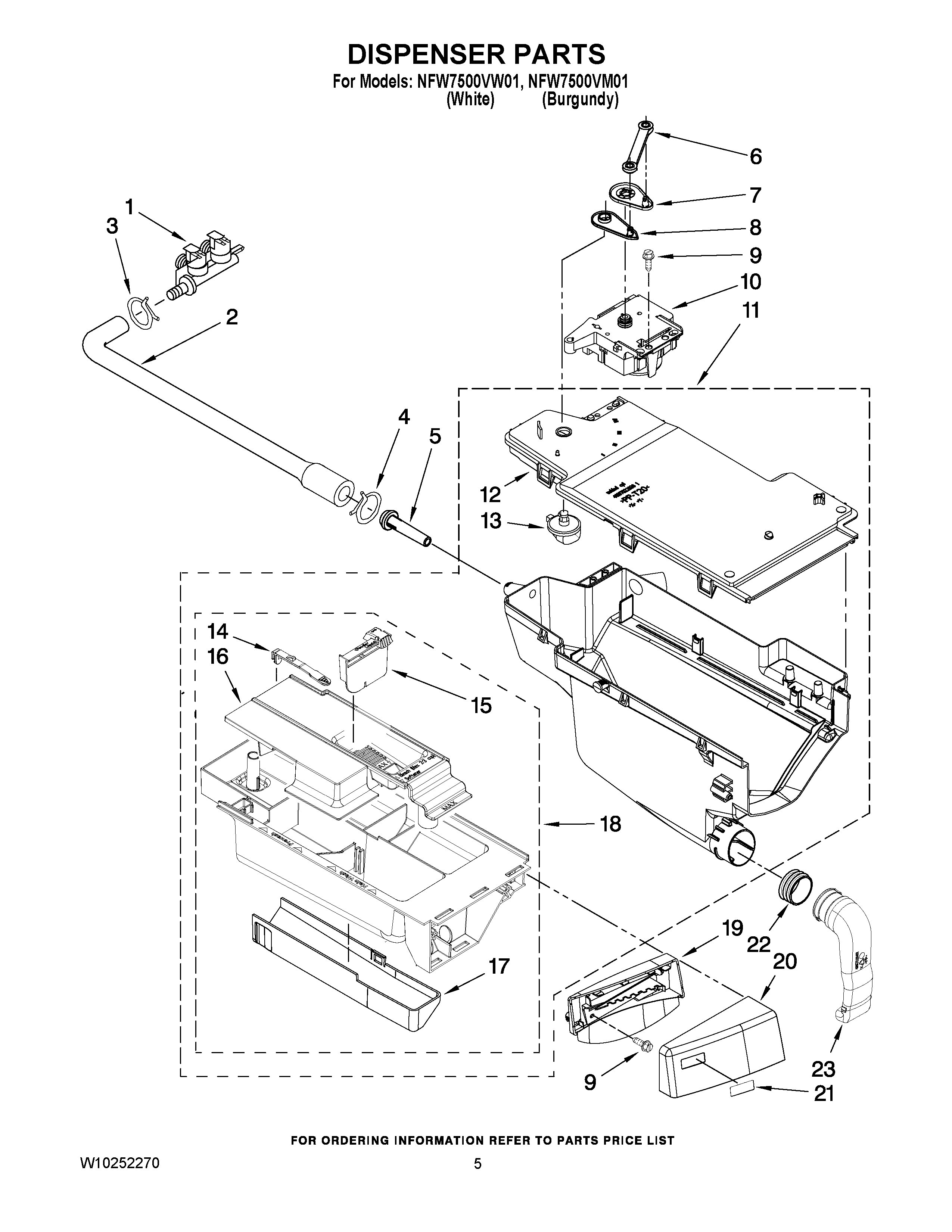

NFW7500VM01 04 – DISPENSER PARTS

Products

Position	Product
1	MAY 8182862
2	MAY W10168480
3	Clamp, Hose
4	Clamp, Hose
5	MAY 8183181
6	Lever, Water Distribution
7	MAY 8183184
8	MAY W10161052
9	MAY 8181661
10	MAY 8183186
11	Dispenser, Complete (Includes Item 8)
12	MAY W10164400
13	MAY 8181712
14	MAY 8181721
15	MAY W10121596
16	MAY W10121598
17	MAY 8183179
18	MAY 8183173
19	MAY W10157881
19	BRACKET, HANDLE FIXATION
20	HANDLE, DRAWER (INCLUDES ITEMS 19 & 21)
20	MAY W10219483
21	MAY W10219486
22	MAY 8181747
23	MAY 8181718
