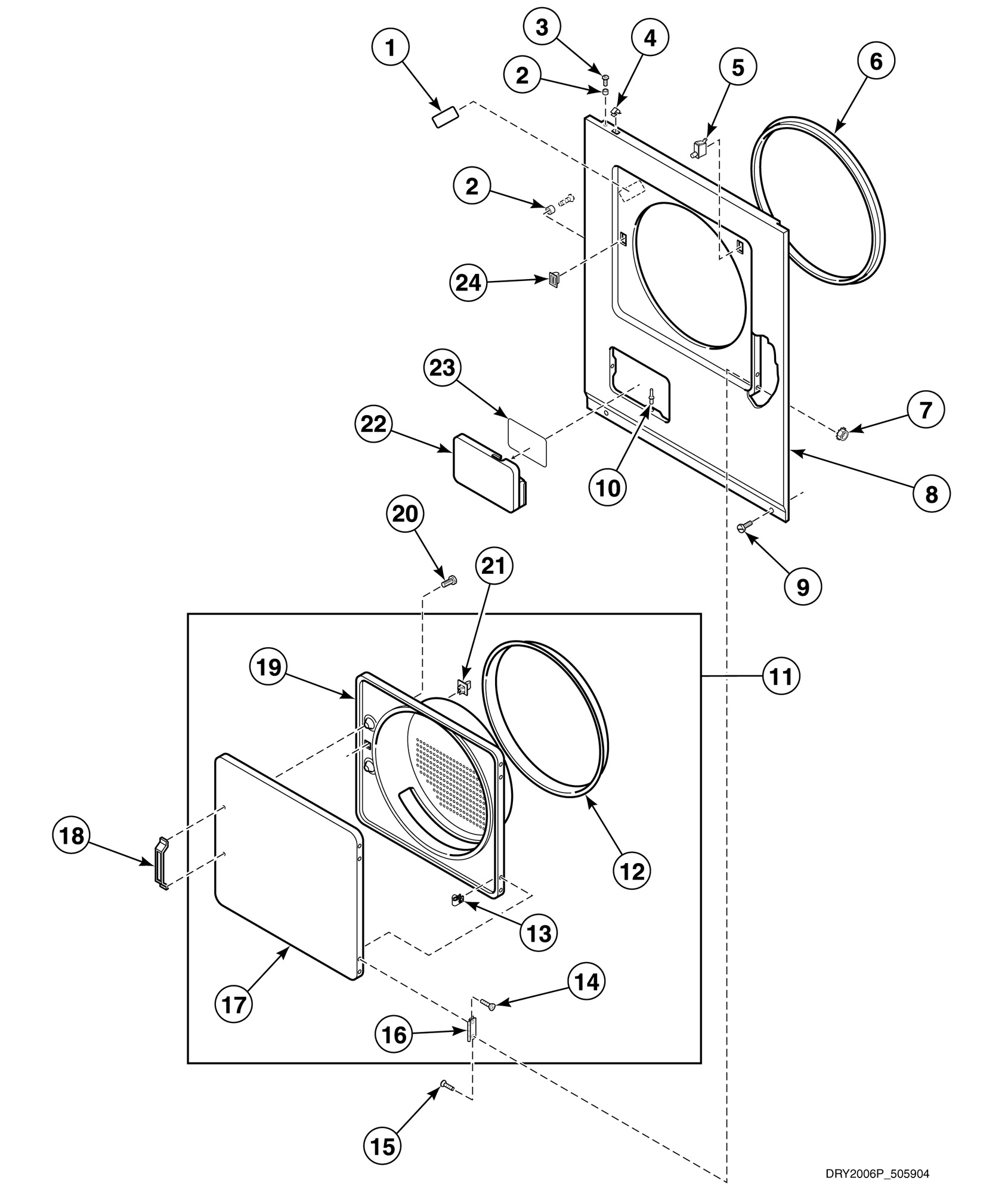

NG4719 Loading Door, Front Panels and Access Door

Products

Position	Product
NA	Washer (Comment: Used on front panel to fasten access door, Models starting Serial No. S6447808YH)
NA	Wire Harness Assembly
1	Warning/Caution Label
2	Panel Locator
3	Screw
4	Speed Clip
5	Switch
6	Front Panel Seal
7	Nut
9	Screw
10	Support Barrel
11	Door Assembly (Comment: Models starting Serial No. S6447808YH)
12	Door Seal
13	Nut
14	Screw
15	Screw
16	Hinge
18	Door Pull
20	Screw
21	Door Strike
22	Access Door (Comment: White)
23	Gas Clearance Label
24	Door Catch Assembly
