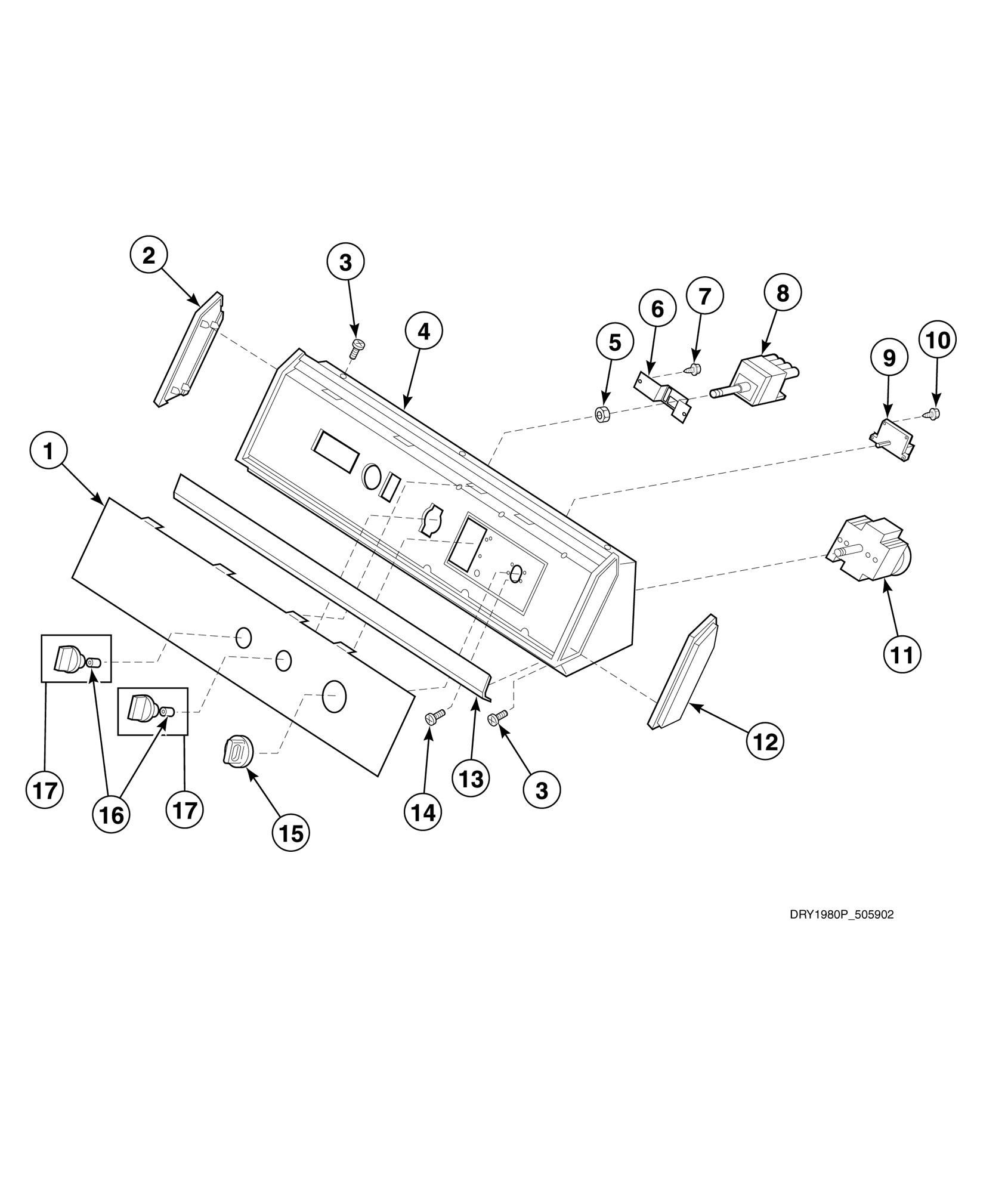

NG4819 Graphic Panel, Control Hood and Controls (Drawing 4 of 5)

NG4819 Graphic Panel, Control Hood and Controls (Drawing 4 of 5)

Written by

in

NG4819 Graphic Panel, Control Hood and Controls (Drawing 4 of 5)

Products

PositionProduct
2End Cap (Comment: Left)
3Screw
5Nut
7Screw
8Fabric Selector Switch (Comment: Models starting Serial No. S6271976XG)
9Rotate-to-Start Switch
10Screw
11Timer
12End Cap
13NOT ON YOUR MODEL
14Screw
15Timer Knob Assembly
16Wire Harness Assembly
17Rotary Knob Assembly
