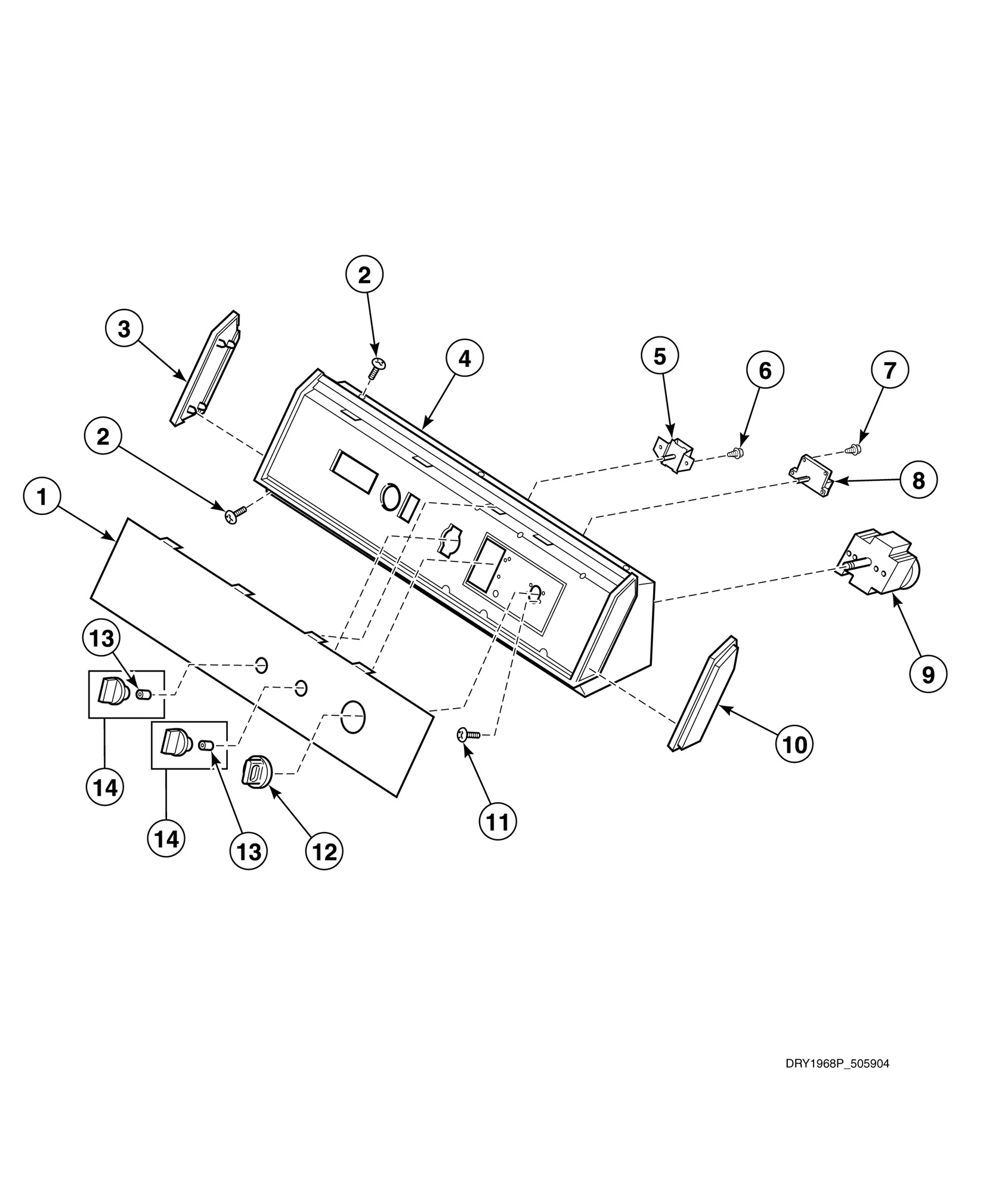

NG5519 Graphic Panel, Control Hood and Controls (Drawing 3 of 7)

Written by

Products

Position	Product
2	Screw
3	End Cap (Comment: Left)
5	Rotary Signal
6	Screw
7	Screw
8	Rotate-to-Start Switch
9	Timer (Comment: through Serial No. S6271975XG)
9	Timer (Comment: starting Serial No. S6271976XG)
10	End Cap
11	Screw
12	Timer Knob Assembly
13	Wire Harness Assembly
14	Rotary Knob Assembly
