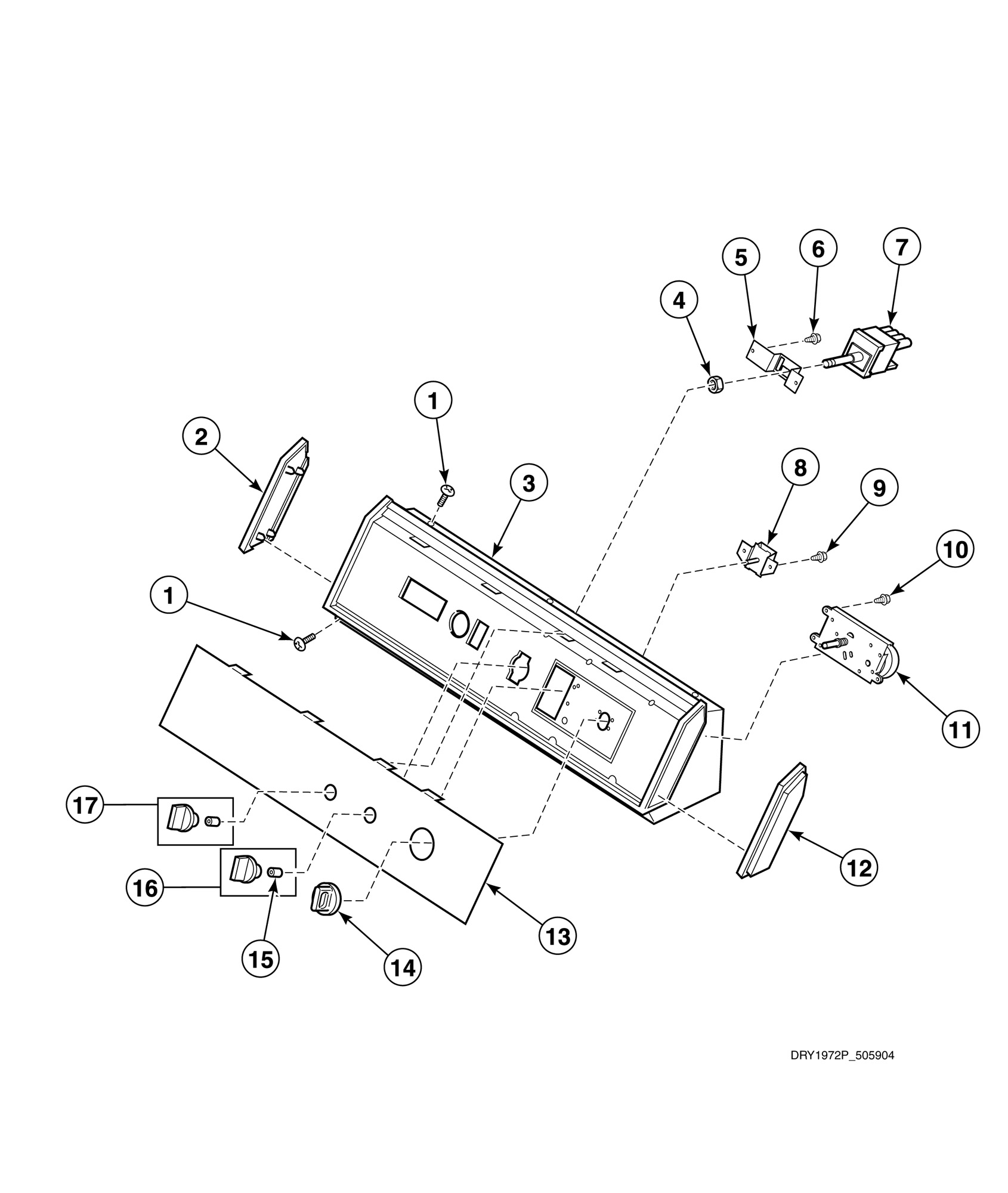

NG6319 Graphic Panel, Control Hood and Controls (Drawing 4 of 7)

Written by

Products

Position	Product
1	Screw
2	End Cap (Comment: Left)
4	Nut
6	Screw
7	Fabric Selector Switch (Comment: Models starting Serial No. S6271976XG)
7	Fabric Selector Switch (Comment: Models through Serial No. S6271975XG)
8	Rotary Signal
9	Screw
10	Screw
11	Timer
12	End Cap
17	Wire Harness Assembly
