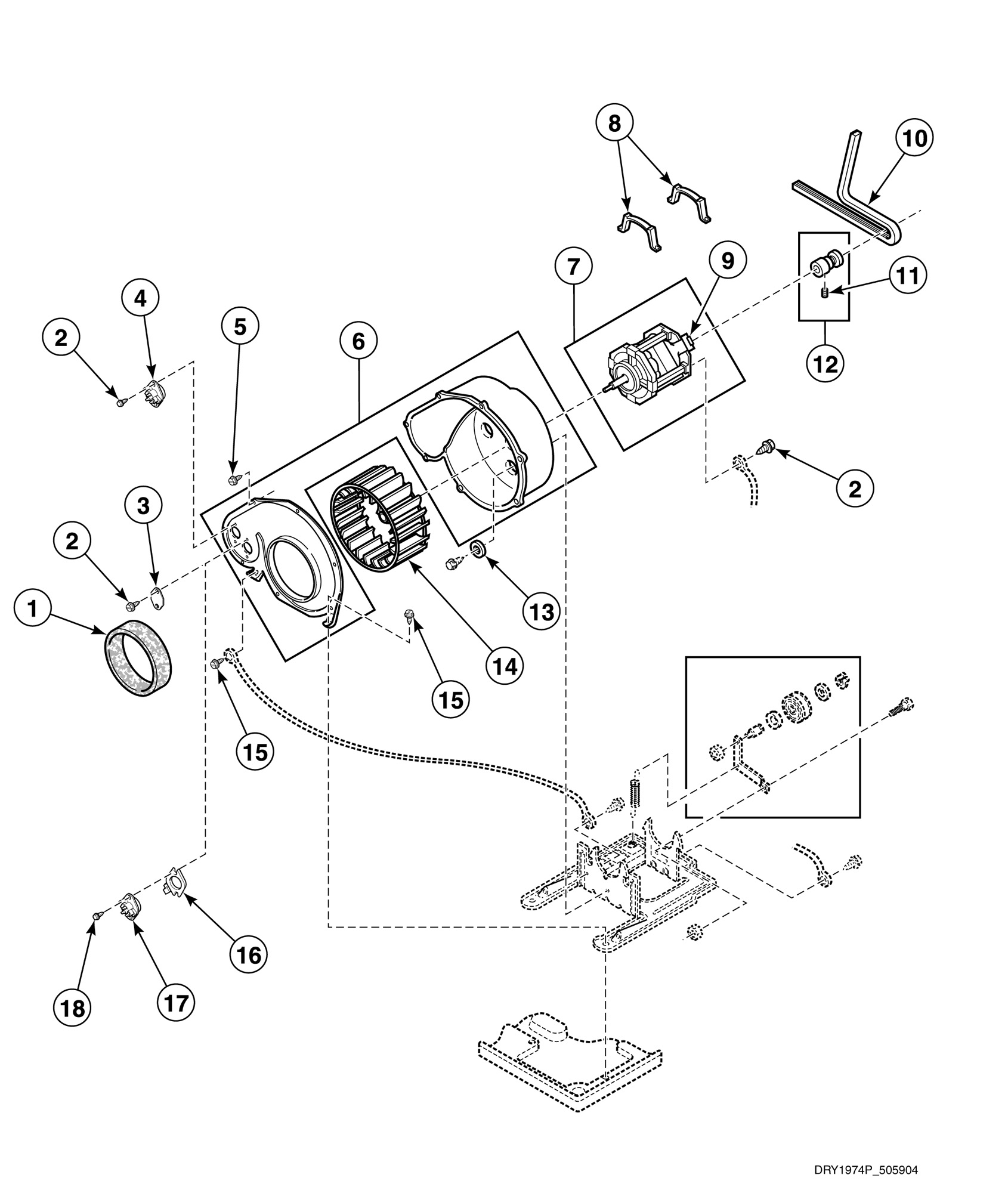

NG6619 Motor, Exhaust Fan and Belt (Drawing 1 of 2)

Written by

Products

Position	Product
NA	Anti-Seize Compound (Comment: Apply to motor shaft before installing blower fan assembly)
2	Screw
3	NOT ON YOUR MODEL
4	Thermostat
5	Screw
6	Blower Housing and Cover Kit
7	Motor (Comment: Includes switch)
8	Motor Mount Clamp
9	Wire Harness Assembly
18	Screw
