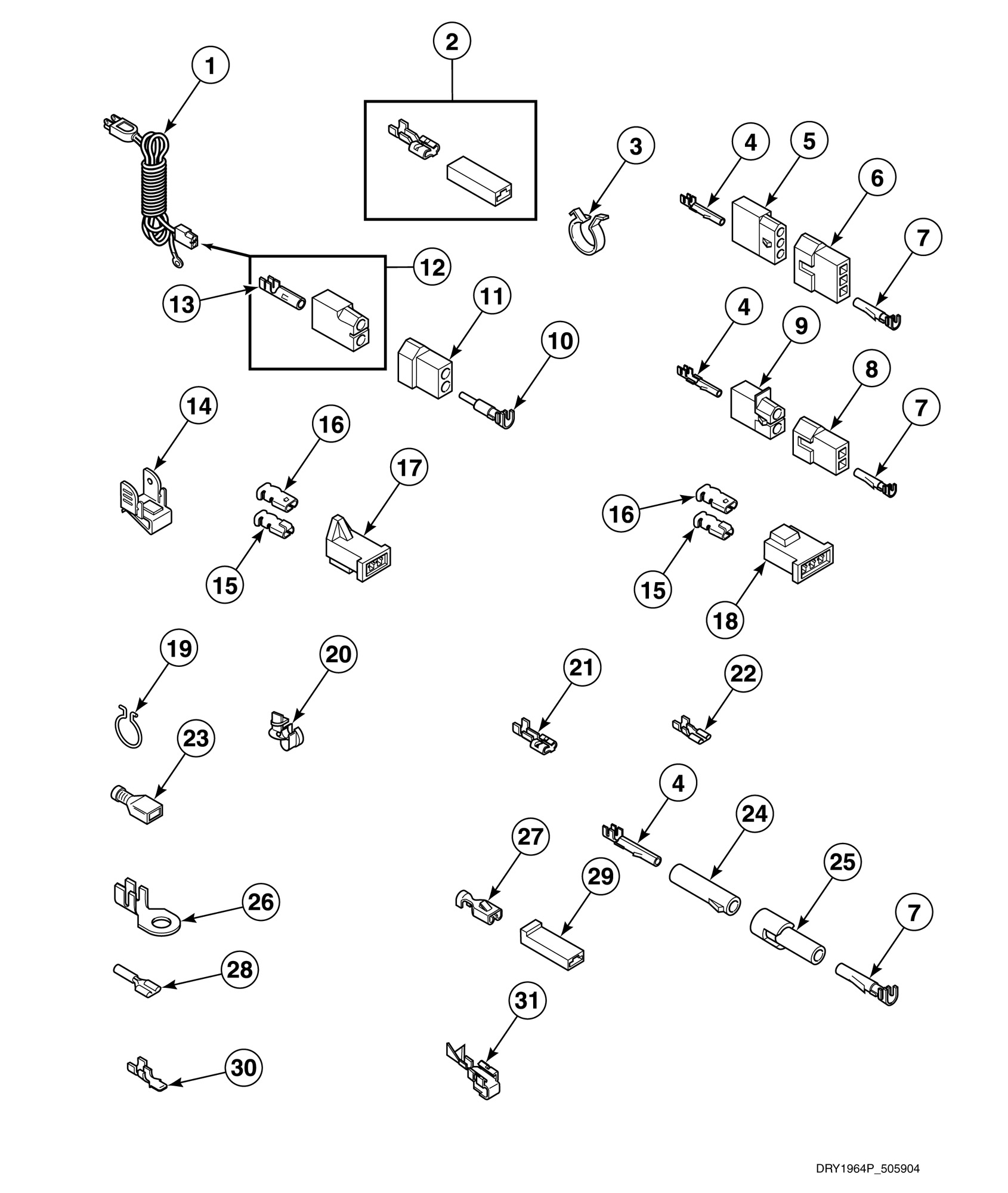

NG6619 Power Cord and Terminals

Products

Position	Product
1	Lead-In Cord
2	Ultra Pod Terminal (Comment: 1/4 inch, (1) 12 gauge wire, (2) 18 gauge wires)
3	Wire Clip
4	Female Pin Terminal
5	3 Circuit Receptacle
6	Plug
7	Male Pin Terminal
8	2 Circuit Plug
9	2 Circuit Receptacle
10	Male Pin Terminal
11	2 Circuit Plug
12	2 Circuit Receptacle
13	Female Pin Terminal
14	Grounding Clip
15	Female Piggyback Terminal
16	Female Spade Terminal
17	2 Circuit Connector
18	3 Circuit Connector
19	Wire Clip
20	Strain Relief
21	Female Spade Terminal (Comment: 1/4 inch, (1) 18 gauge wire)
21	Female Spade Terminal (Comment: 1/4 inch, (1) 12 gauge wire)
21	Female Spade Terminal (Comment: 1/4 inch, (2) 18 gauge wires)
22	Female Spade Terminal (Comment: 3/16 inch, (1) 18 gauge wire, .020 tab)
22	Female Spade Terminal (Comment: 3/16 inch, Thermostat wire, .032 tab)
22	Female Spade Terminal (Comment: 3/16 inch, (2) 18 gauge wires, .020 tab)
23	Insulated Female Terminal (Comment: 3/16 inch)
23	Ultra Pod Terminal (Comment: 1/4 inch)
24	Molex Receptacle
25	1 Circuit Plug
26	Ring Terminal (Comment: No. 10, (2) 18 gauge wire
26	Ring Terminal (Comment: No. 10, (1) 18 gauge wire)
27	GEN 00115
27	GEN 00321
28	GEN 00215
28	Wire Harness Assembly
29	GEN 90789
30	GEN 00139
31	GEN 00114
