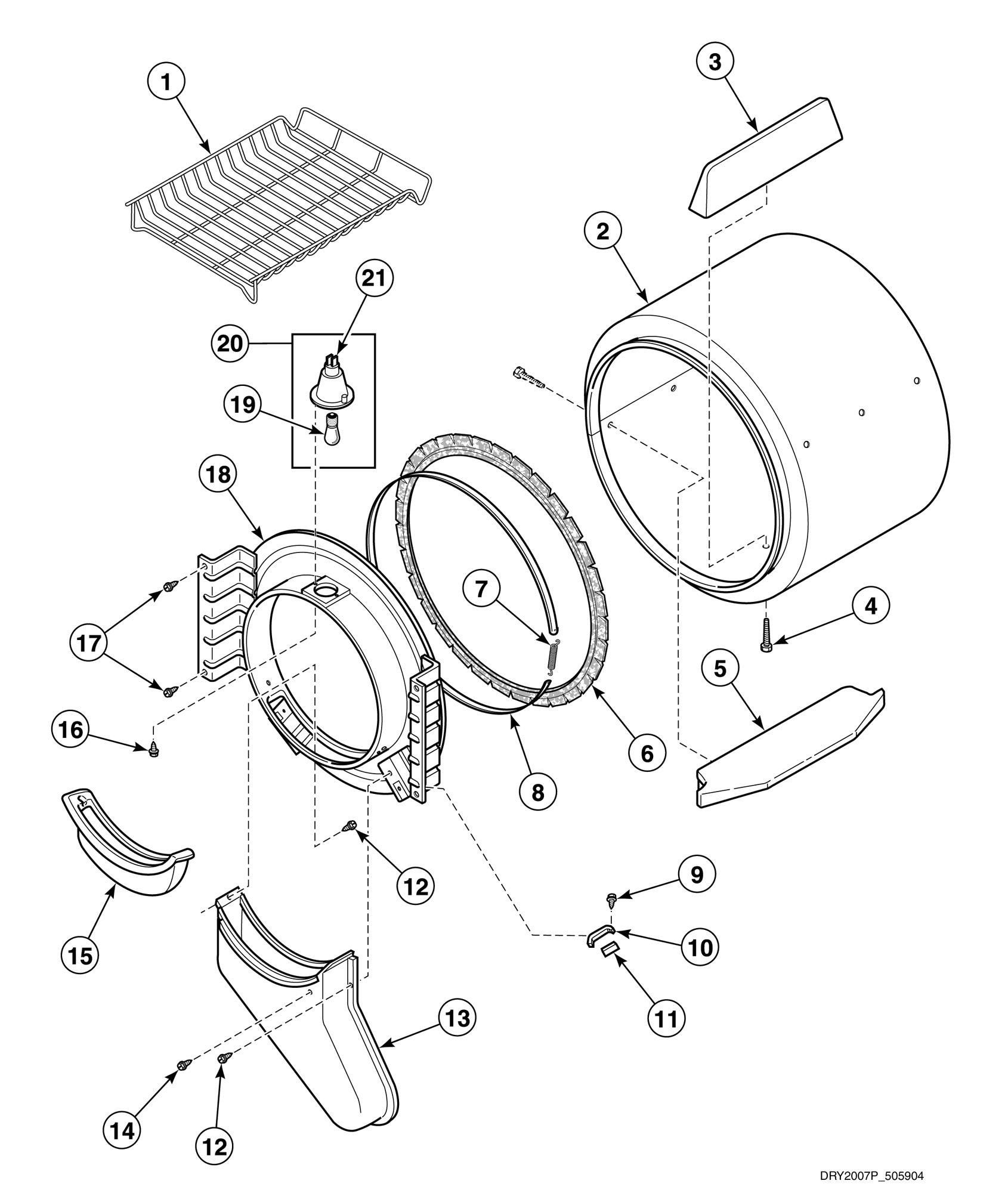

NG8639 Front Bulkhead, Air Duct, Felt Seal and Cylinder

Products

Position	Product
2	Cylinder Assembly (Comment: Includes baffles)
3	Cylinder Baffle (Comment: Short, 2 required)
4	Screw
5	Cylinder Baffle (Comment: Extended, 1 required)
6	Seal Assembly
7	Spring
8	Seal Strap
9	Screw
10	Cylinder Glide
11	Thin Pad
12	Screw
13	Air Duct Assembly
15	Lint Filter
16	Screw
17	Screw
19	Drum Light Lamp (Comment: Use with 60953P Cylinder Light Assembly)
21	Wire Harness Assembly
