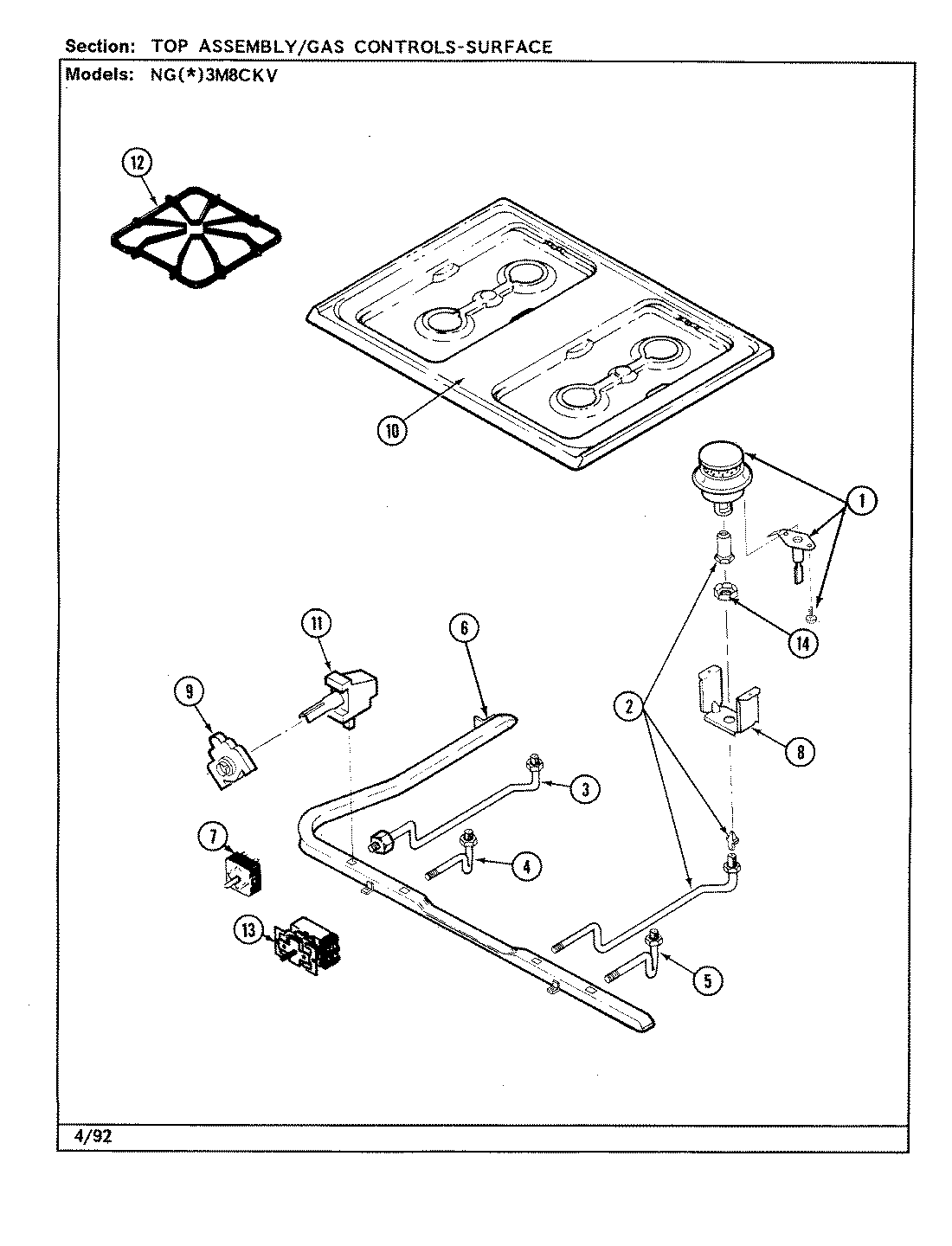

NGA3M8CKV 07 – TOP ASSEMBLY
Written by
in
NGA3M8CKV 07 – TOP ASSEMBLY
Products
Position
Product
1
MAY 5111A361-60
1
MAY 3412D007-09
1
MAY 7432P072-60
1
MAY 7118P010-60
1
MAY 5111A360-60
3
MAY 7507P069-60
5
MAY 7507P073-60
6
MAY 7513P104-60
7
MAY 7403P092-60
8
MAY 3807F378-51
9
MAY 7403P284-60
10
MAY 2001F080-81
10
MAY 2001F080-84
10
MAY 2001F080-90
11
MAY 7101P296-60
11
MAY 7502P232-60
12
MAY 2003W023-00
13
MAY 7404P064-60
13
MAY 7101P279-60
14
MAY 7101P119-60
←
